- Page 1 ST SPC58 C LINE EMULATION ADAPTER HARDWARE USER MANUAL V2.6, October 2024 www.tasking.com...
- Page 2 Use included power cord and power supply The enclosed power supply has been approved for use by TASKING. Please contact TASKING if you need to consider an alternative power.
-
Page 3: Table Of Contents
Adaptation setup ....................8 Screw s ................................ 9 Configuration ....................... 10 Connectors ......................14 Power supply package ..................15 Standalone operation ................... 16 Measurement board ..................... 17 Mechanical information .................. 18 Schematics ..................... 20 Accessories ....................21 User Notes ...................... 22 www.tasking.com... -
Page 4: Introduction
ST SPC58 C Line Emulation Adapter is based on the SPC58EC80 device in the BGA292 package, only in which the Nexus trace port is exposed and available (P1 connector). It’s a "superset" device with 4MB program flash and can emulate all ST SPC58 C Line devices in smaller packages. -
Page 5: Package Content
Package content ST SPC58 C line Emulation Adapter is delivered with all components required for Standalone operation. Adaptation package for the Target board must be ordered separately. Power supply package ST SPC58 C Line Emulation Adapter Power converter Power adapter... -
Page 6: Adaptation Packages Content
Fixed IA144TQ-SOLDER IEA-SPC58EC-TQ176 Fixed IA176TQ-SOLDER Fixed Adaptation The adaptation is elivered with a slot screw, which can be used to achieve a more solid and stable fixing of the Conversion board and the Solder part. Conversion board Solder part www.tasking.com... -
Page 7: Operation
ST SPC58 C Line Nexus trace port. The tool connects to the 38-pin Mictor connector (P1) providing debug and Nexus trace interface connection. Emulation Adapter offers the following adaption setup: · Fixed Adaptation Top side of the Emulation Adapter Bottom side of the Emulation Adapter www.tasking.com... -
Page 8: Adaptation Setup
Adaptation setup Fixed Adaptation www.tasking.com... -
Page 9: Screws
Emulation Adapter is attached on top and watch out not to break out the Solder part, e.g., if you accidentally hit the Emulation Adapter from the side. Short Hexagon socket screw Short Hexagon socket screw, which comes with the Solder part, is not applicable with this Emulation Adapter setup. www.tasking.com... -
Page 10: Configuration
If a different clock frequency is required, insert appropriate crystal into the Q1 socket. Crystal socket Q1 is by default not populated (NP). * Emulation Adapters of revision A4 or lower were delivered with a 40 MHz crystal. www.tasking.com... - Page 11 20 MHz / 40 MHz crystal oscillator operation. 0 ohm resistor is populated in place of the serial R3 resistor. Emulation adapters of revision A2 or lower had capacitors C1 and C2 populated with 10p. www.tasking.com...
- Page 12 This connection must be quality and reliable otherwise debugging and tracing over the Nexus trace port may not work. Alternatively, GND connection can be also established over the J4 ground bridge. www.tasking.com...

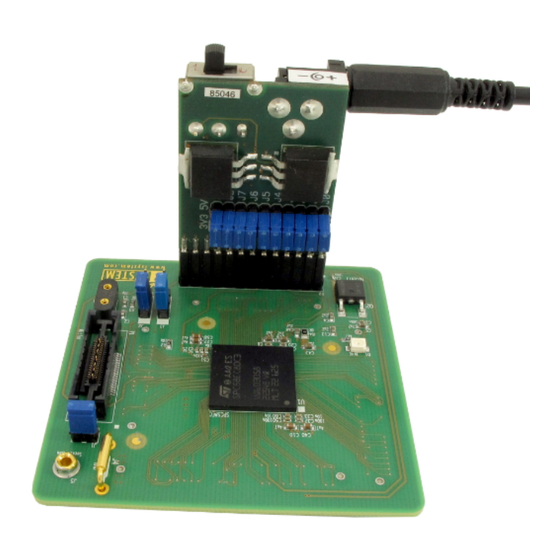

- Page 13 The EA comes delivered together with the IEA-PS emulation adapter power supply, which simply plugs into the P2 header row, providing the necessary power supply for Emulation Adapter standalone operation. Double check that the power supply is configured properly for this particular Emulation Adapter. www.tasking.com...
-
Page 14: Connectors
Signal Direction is described from the BlueBox perspective. Be aware that debug and trace signals from the Emulation Adapter superset device are not connected to the target board. They are exposed only to the connectors on the Emulation adapter. www.tasking.com... -
Page 15: Power Supply Package
Be careful not to supply 5 V to the microcontroller power supply pin, which has declared a maximum voltage 3.3 V! Refer to the microcontroller documentation for detailed information on power supply. P3 connector on the Power Supply board External power supply requirements: Min Voltage Max Voltage Min Power 12 V www.tasking.com... -
Page 16: Standalone Operation
Standalone operation The Emulation Adapter is delivered with all components required for a Standalone operation. Power supply Use the enclosed IEA-PS Emulation Adapter Power converter and adapter. www.tasking.com... -
Page 17: Measurement Board
CPU signals are nicely marked) that matches your order. The black panel is placed over the Measurement board. Layout board example for the Top view of the Measurement Measurement board board Not available in every Emulation Adapter or every MCU pin count. www.tasking.com... -
Page 18: Mechanical Information
Solder part solder pad view Top view of the Solder part Side view of the Solder part Side view of the Emulation adapter complete setup - QFP Fixed Adaptation Top view of the Emulation Adapter Top view of the Conversion board www.tasking.com... - Page 19 Use the Surface Mount Technology (SMT) to solder the Solder parts to the user target board instead of the original microcontroller. iSYSTEM provides this soldering service on request too. Emulation Adapter Unit (mm) Ordering code IEA-SPC58EC 32.6 36.4 47.5 IEA-SPC58EC- TQxxx www.tasking.com...
-
Page 20: Schematics
Optionally, target design can directly provide connection for the Emulation Adapter via the P3-P6 connectors. Connectors being used on the Emulation Adapter side are TE connectivity female connectors, part number: 0-0104652-4 (40-pin connector) and 0-0104652-6 (60-pin connector). The target must feature male matching connectors. www.tasking.com... -
Page 21: Accessories
Active probes and Debug Adapters Description Ordering code Active Probe Parallel IC57800 / IC71800 Active Probe Debug IC57801 / IC71801 38-pin Mictor MPC5xxx Nexus 16-bit Debug Adapter IC50152 38-pin Mictor MPC5xxx Nexus 16-bit Debug Adapter IC70152 More information about our products via sales@tasking.com. www.tasking.com... -
Page 22: User Notes
User Notes This page is intentionally left blank. www.tasking.com... - Page 23 This page is intentionally left blank. www.tasking.com...
- Page 24 Visit our website for: · Support - support.tasking.com · Getting started - isystem.com/start · Knowledge Base - kb.tasking.com www.tasking.com www.tasking.com...
