Power supply package

Use the enclosed IEA-PS Emulation Adapter Power converter and adapter. A Power supply
package, which is delivered with the Emulation Adapter, is required when:
·
The Emulation Adapter is used as a standalone device.
·
The target board doesn't provide an accurate supply voltage.
·
The target board doesn't provide sufficient current for the Emulation Adapter operation.
The Power converter can supply either 3.3 V or 5 V. The array of jumpers J0–J9 selects 3.3 V or 5
V voltage on the P3 connector, which connects to the Emulation Adapter.
Signal
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
GND
GND
GND
For example, when J2 is in the 3V3 position, it supplies 3.3 V to pin 6 of the P3 connector. When
J2 is in the 5V position, it supplies 5 V to pin 6 of the P3 connector pin.
Be careful not to supply 5 V to the microcontroller power supply pin, which has declared
a maximum voltage 3.3 V! Refer to the microcontroller documentation for detailed
information on power supply.
External power supply requirements:
Min Voltage
8 V
Pin
1
3
5
7
9
11
13
15
17
19
21
23
25
P3 connector and J0–J9 jumper correlation table

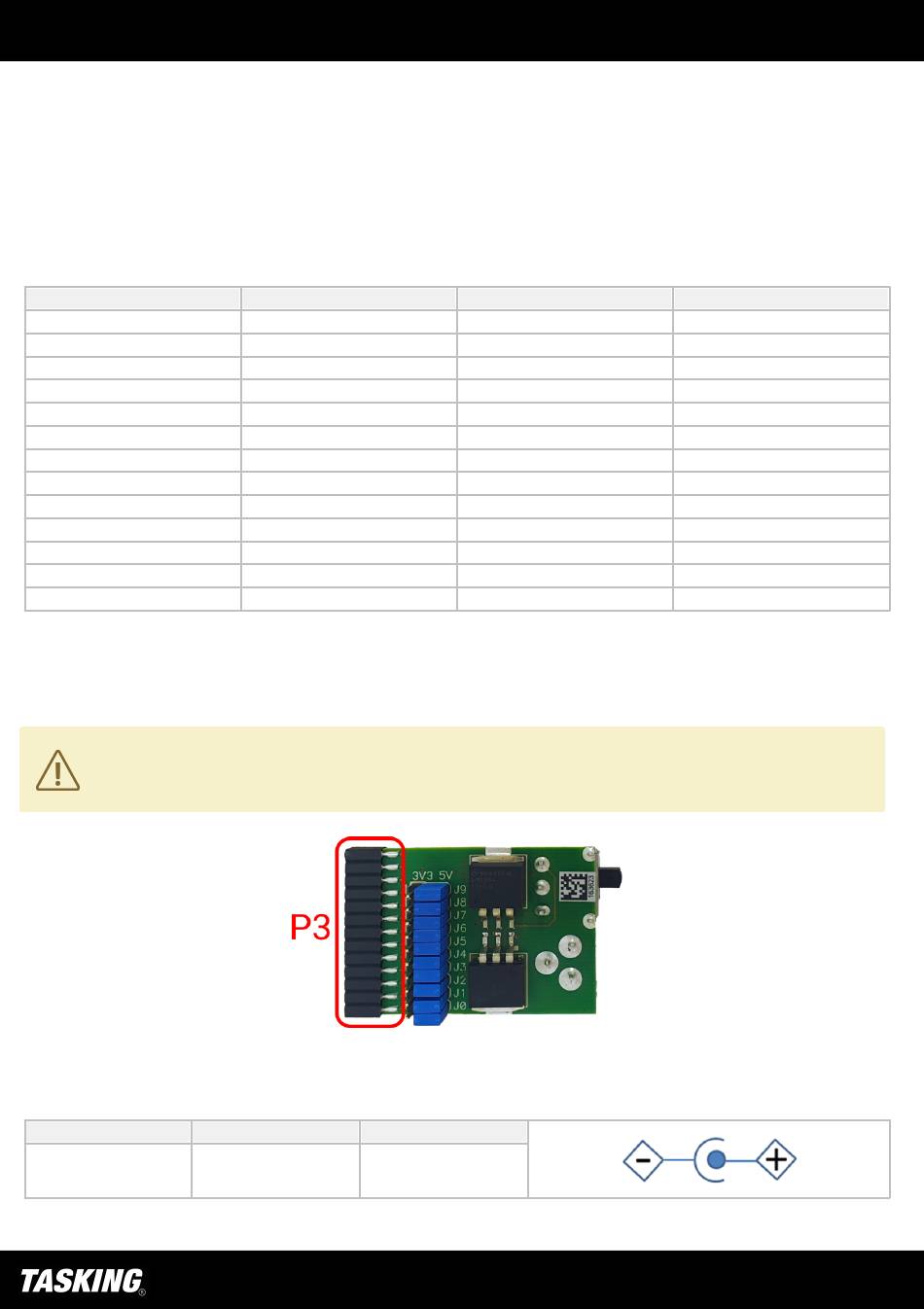

P3 connector on the Power Supply board
Max Voltage
12 V
Pin
2
4
6
8
10
12
14
16
18
20
22
24
26
Min Power
5 W
Signal
J0
J1
J2
J3
J4
J5
J6
J7
J8
J9
GND
GND
KEY
