- Page 1 ST SPC58 C Line Emulation Adapter Hardware User Manual V2.5, February 2024 isystem.com/start...
- Page 2 General safety instructions Please read the following safety precautions carefully before putting this device to use to avoid any personal injuries, damage to the instrument, or to the target system. Use this instrument only for its intended purpose as specified by this manual to prevent potential hazards. Use included power cord and power supply The enclosed power supply has been approved for use by iSYSTEM.
-
Page 3: Table Of Contents
Contents Introduction ............................4 Package content ..........................5 Adaptation packages content ......................6 Operation ............................... 7 Adaptation setup ............................. 8 Screws ............................................... 9 Configuration ............................10 Connectors .............................. 13 Power supply package ......................... 14 Standalone operation ........................... 15 Measurement board ..........................16 Mechanical information ...................... -
Page 4: Introduction

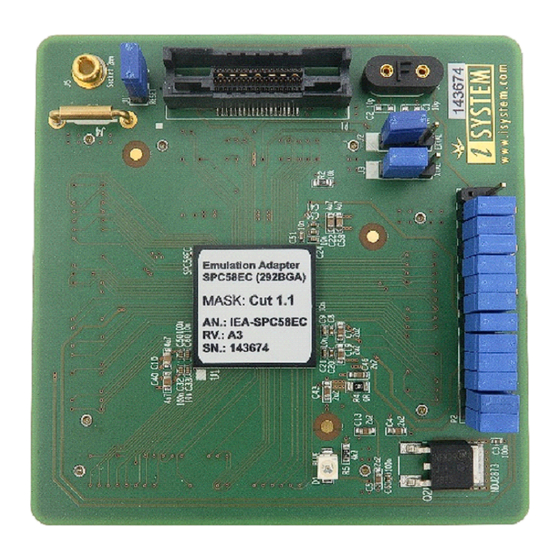

Introduction ST SPC58 (Chorus) C Line Emulation Adapter primary use case is providing Nexus trace func- tionality for the SPC58 C Line devices in the QFP packages, where Nexus trace port is not avail- able. The emulation adapter is based on the 292-pin "superset" device and provides the adapta- tion to ·... -
Page 5: Package Content
Package content ST SPC58 C line Emulation Adapter is delivered with all components required for Standalone op- eration. Adaptation package for the Target board must be ordered separately. Power supply package ST SPC58 C Line Emulation Adapter Power converter Power adapter Ordering code: Ordering code: Ordering code:... -
Page 6: Adaptation Packages Content
Adaptation packages content Conversion boards connect between the Emulation Adapter and the matching Solder part which is being soldered on the Target side. Pin number Conversion Board Type Solder part IEA-SPC58EC-ATQ64 Fixed IA64ATQ-SOLDER IEA-SPC58EC-TQ100 Fixed IA100TQ-SOLDER IEA-SPC58EC-TQ144 Fixed IA144TQ-SOLDER IEA-SPC58EC-TQ176 Fixed IA176TQ-SOLDER Fixed Adaptation... -
Page 7: Operation
Operation Device overview The ST SPC58EC Emulation Adapter can be used in conjunction with iSYSTEM iC5000 and iC5700 BlueBox or any other third-party tool supporting ST SPC58 C Line Nexus trace port. The tool connects to the 38-pin Mictor connector (P1) providing debug and Nexus trace interface connection. -
Page 8: Adaptation Setup
Adaptation setup Fixed Adaptation... -
Page 9: Screws
Screws Slot screw The Slot screw (30mm) is used to fix the Conversion board to the Solder part. The setup be- comes mechanically more robust.Screw the Conversion board to the Solder part first, before the Emulation Adapter is attached on top and watch out not to break out the Solder part, e.g., if you accidentally hit the Emulation Adapter from the side. -
Page 10: Configuration
Configuration J1: Target reset configuration Jumper J1 connects the SPC58EC80 reset line and the target reset line. By default, J1 is popu- lated. When having problems establishing the initial debug session with the emulation adapter, try to remove J1 and see if it makes any difference. J2 and J3: Clock source configuration Jumpers J2 and J3 select external clock source (XOSC) for the emulation device. - Page 11 Capacitors C1 and C2, for which pads are provided on the emulation adapter PCB, are not populated since the micro- controller provides already the internal load capacitors for 20MHz/40MHz crystal oscillator operation. 0 ohm resistor is populated in place of the serial R3 resistor. Emulation adapters of revision A2 or lower had capacitors C1 and C2 populated with 10p.
