LEO
Area Light Anchor Kit
Installation Guide
Included components
4x – 3/4-10 x 18" Threaded
rod with staked hex nut
1x – wooden drill template
Tools Required
• Safety glasses
• Wrenches, 1-1/8"
• Level
LIGHTING LAYOUT RECOMMENDATIONS:
Refer to the product data sheet available at
recommendations for light pole spacing.
Landscape Forms is not responsible for site preparation and footings. The following
chart gives necessary information for calculating proper footing size, depending on
the specified light pole.
WARNING! Pole mounted luminaires must be attached either before or immediately
after pole installation. Failure to do so may cause vibration damage to the pole and
will void the pole warranty.
Base Overturning
Pole Size
Moment (ft-lbf)
4"x.125"
2504
5"x.125"
4015
5"x.156"
4947
6"x.156"
7247
4x – 3/4" Lock Washer
8x – 3/4-10 Hex Nut
8x – 3/4" Washer
www.landscapeforms.com
for
Base Shear
(lbf)
227
301
317
378
4" diameter pole
INSTALLATION PROCEDURE FOR ANCHOR BOLTS:
1.
Prepare footing as required by local codes.
2.
Install staked anchor bolts, hex nuts, washers and wooden template as shown in Fig 4
and Fig. 5. Level template in all directions.
3.
After footing has properly cured, remove wooden template. Do not remove lower
hex nuts or washers.

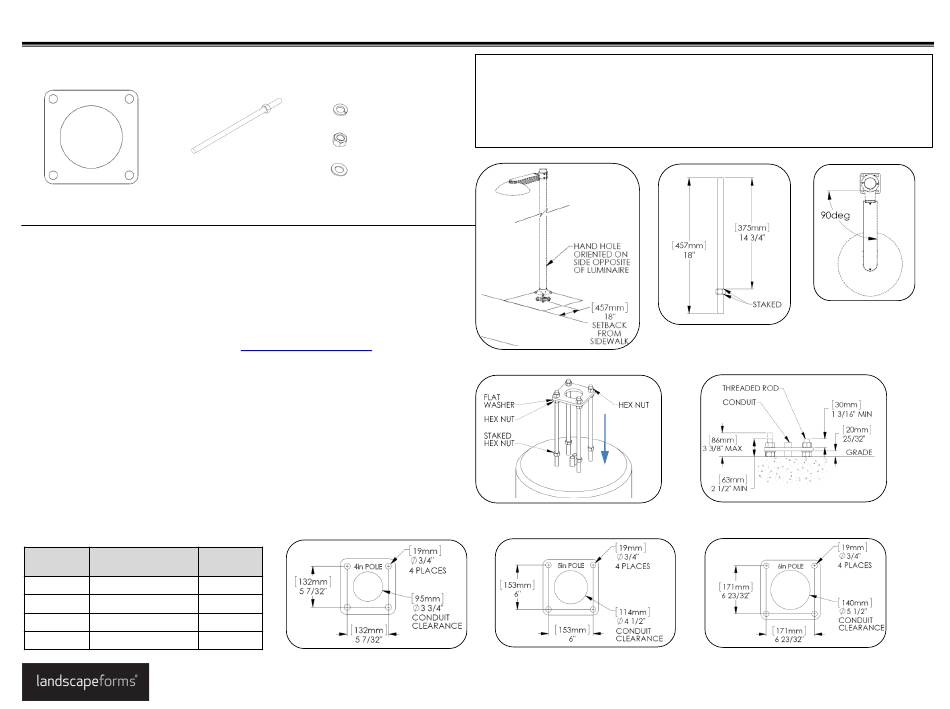

Fig. 1 - Anchor rod detail
Fig. 4 - Anchor rod detail
5" diameter pole
Date: March 10, 2021
www.landscapeforms.com
Ph: 800.521.2546
Fig. 3 – Base plate
orientation
Fig. 2 - Anchor rod detail
to luminaire
Fig. 5 - Anchor rod detail
6" diameter pole
Page 1 of 1
