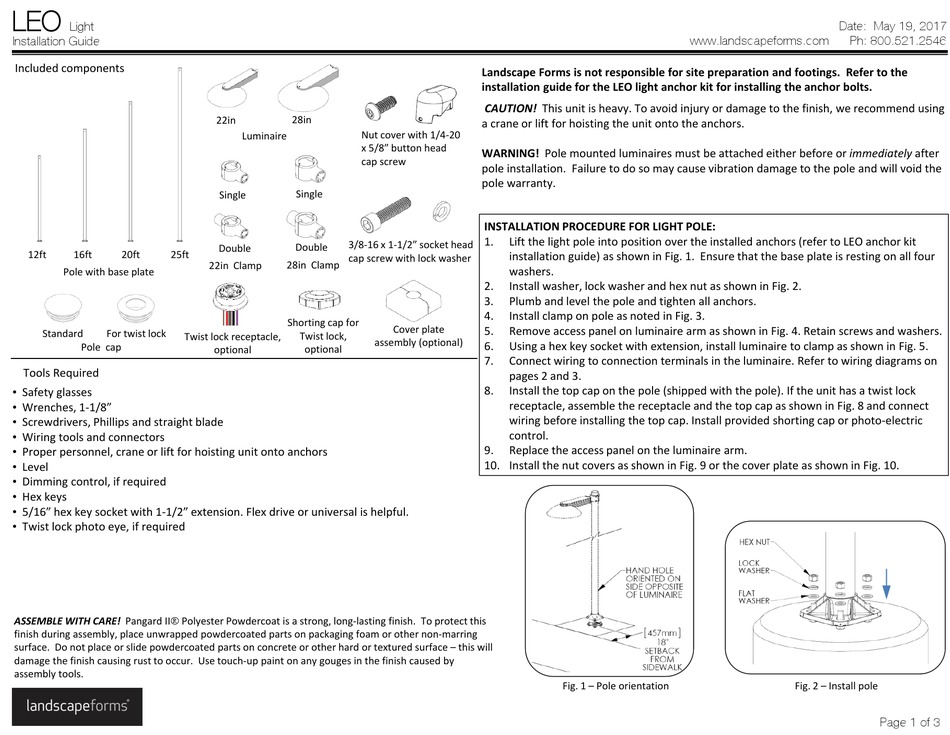

LEO
Light
Installation Guide
Included components
20ft
12ft
16ft
25ft
Pole with base plate
Standard
For twist lock
Twist lock receptacle,
Pole cap
Tools Required
• Safety glasses
• Wrenches, 1‐1/8"
• Screwdrivers, Phillips and straight blade
• Wiring tools and connectors
• Proper personnel, crane or lift for hoisting unit onto anchors
• Level
• Dimming control, if required
• Hex keys
• 5/16" hex key socket with 1‐1/2" extension. Flex drive or universal is helpful.
• Twist lock photo eye, if required
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long‐lasting finish. To protect this
finish during assembly, place unwrapped powdercoated parts on packaging foam or other non‐marring
surface. Do not place or slide powdercoated parts on concrete or other hard or textured surface – this will
damage the finish causing rust to occur. Use touch‐up paint on any gouges in the finish caused by
assembly tools.
22in
28in
Nut cover with 1/4‐20
Luminaire
x 5/8" button head
cap screw
Single
Single
3/8‐16 x 1‐1/2" socket head
Double
Double
cap screw with lock washer
28in Clamp
22in Clamp
Shorting cap for
Twist lock,
assembly (optional)
optional
optional
Landscape Forms is not responsible for site preparation and footings. Refer to the
installation guide for the LEO light anchor kit for installing the anchor bolts.
CAUTION! This unit is heavy. To avoid injury or damage to the finish, we recommend using
a crane or lift for hoisting the unit onto the anchors.
WARNING! Pole mounted luminaires must be attached either before or immediately after
pole installation. Failure to do so may cause vibration damage to the pole and will void the
pole warranty.
INSTALLATION PROCEDURE FOR LIGHT POLE:
1.
Lift the light pole into position over the installed anchors (refer to LEO anchor kit
installation guide) as shown in Fig. 1. Ensure that the base plate is resting on all four
washers.
2.
Install washer, lock washer and hex nut as shown in Fig. 2.
3.
Plumb and level the pole and tighten all anchors.
4.
Install clamp on pole as noted in Fig. 3.
Cover plate
5.
Remove access panel on luminaire arm as shown in Fig. 4. Retain screws and washers.
6.
Using a hex key socket with extension, install luminaire to clamp as shown in Fig. 5.
7.
Connect wiring to connection terminals in the luminaire. Refer to wiring diagrams on
pages 2 and 3.
8.
Install the top cap on the pole (shipped with the pole). If the unit has a twist lock
receptacle, assemble the receptacle and the top cap as shown in Fig. 8 and connect
wiring before installing the top cap. Install provided shorting cap or photo‐electric
control.
9.
Replace the access panel on the luminaire arm.
10. Install the nut covers as shown in Fig. 9 or the cover plate as shown in Fig. 10.
Fig. 1 – Pole orientation
Date: May 19, 2017
www.landscapeforms.com
Ph: 800.521.2546
Fig. 2 – Install pole
Page 1 of 3
