6.4.3 INSTALLATION

STEP

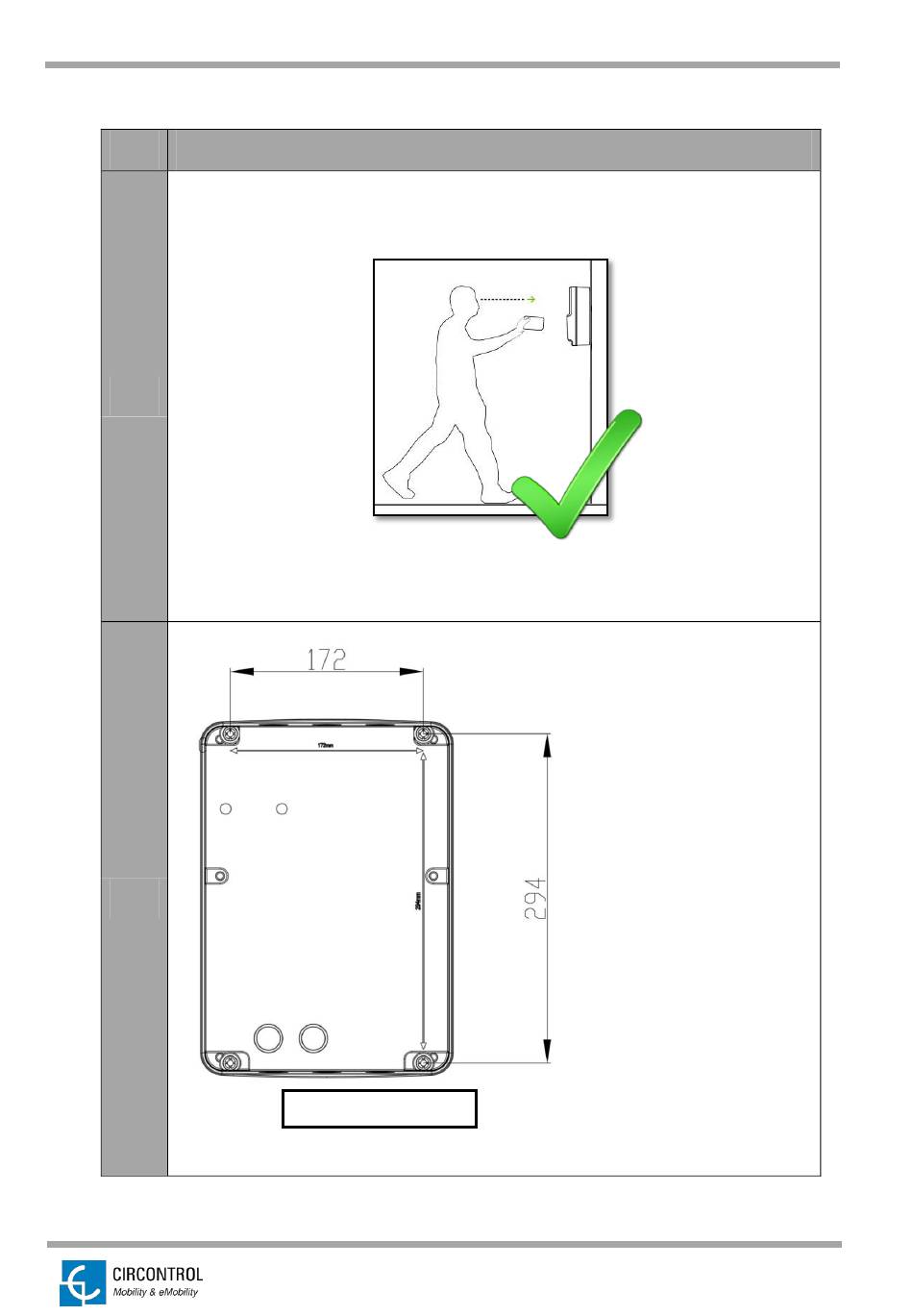

Adjust the position of the charge point according to the correct vision and
management for the end user.
2.
3.
Units specified in mm
ACTION
Minimum recommended height: 120cm
Please comply to your country specifications.
REAR VIEW
17
INSTALLATION MANUAL
1. Mark 4 holes taking into
account the above
measurements.
2. Place it on a flat surface.
3. Use 4x45mm screws to
attach the unit to the
wall.
4. Check charge point has
no inclination using a
level tool.
