6.3.2 CABLE INSERTION FROM BEHIND

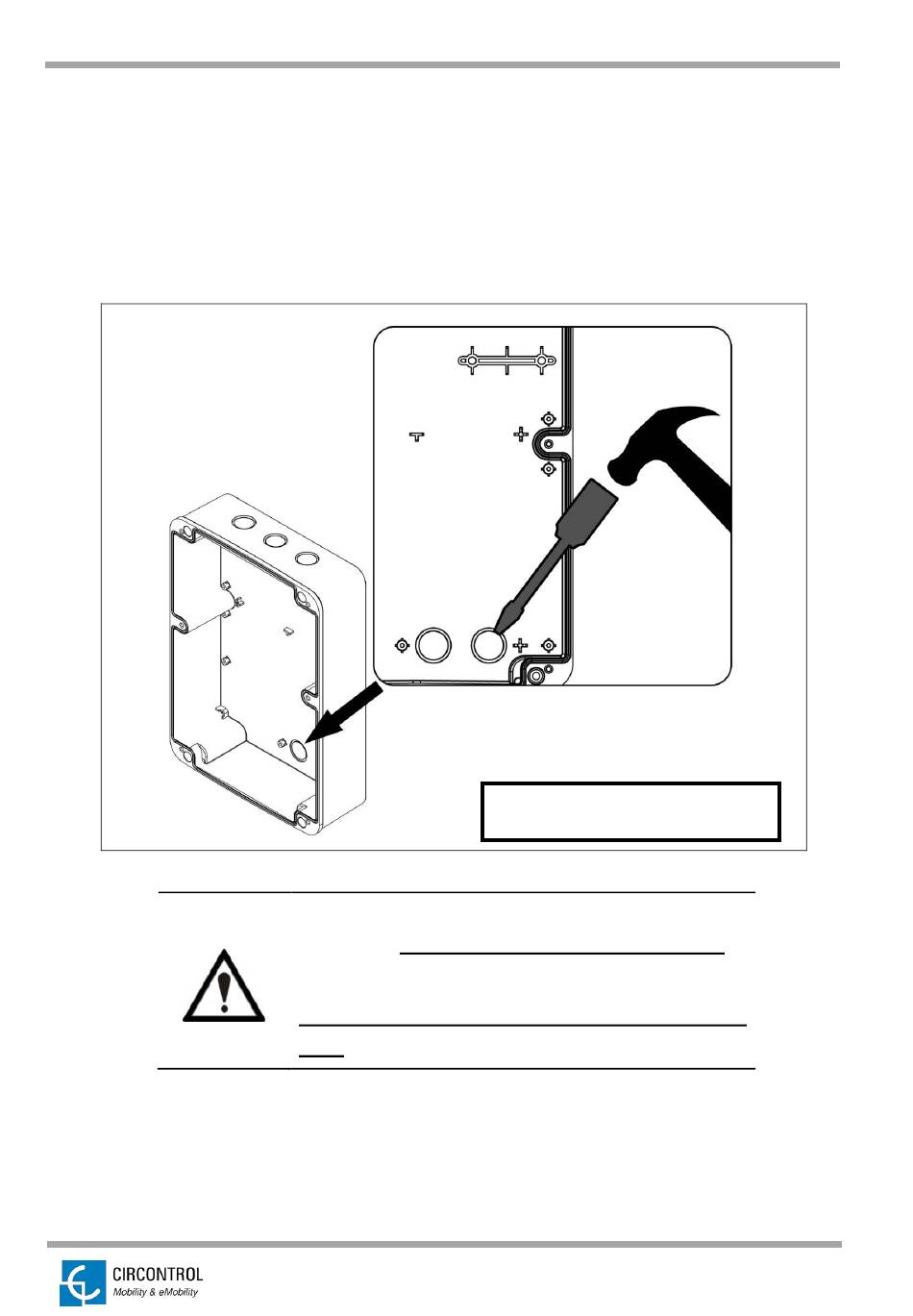

There are two insertion openings available at the rear of the charge point.
- Before break out the required openings, take into account the space between
internal electronic and wires inside the charge point.
- Use a hammer and a flathead screwdriver and carefully break out the cable
insertion openings.
Do not make new holes in others parts of the
enclosure. Use only the cable insertion openings to
install the required electric pipes.
Install always cable glands or a double membrane
seals to ensure IP protection of the charge point.
14
INSTALLATION MANUAL
FRONT VIEW
.
