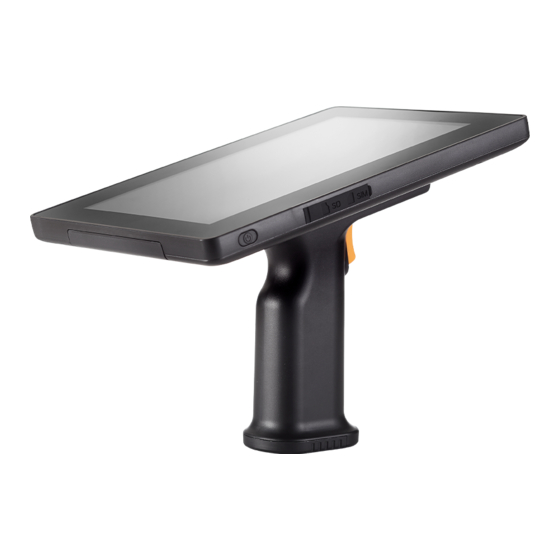

MT-4308W/4310W
Mobile Terminal System
User Manual
MT-4308W/R
MT-4310W/R
MT-4308W/H
MT-4310W/H
12550900050 Ver. D0
http://www.posiflex.com

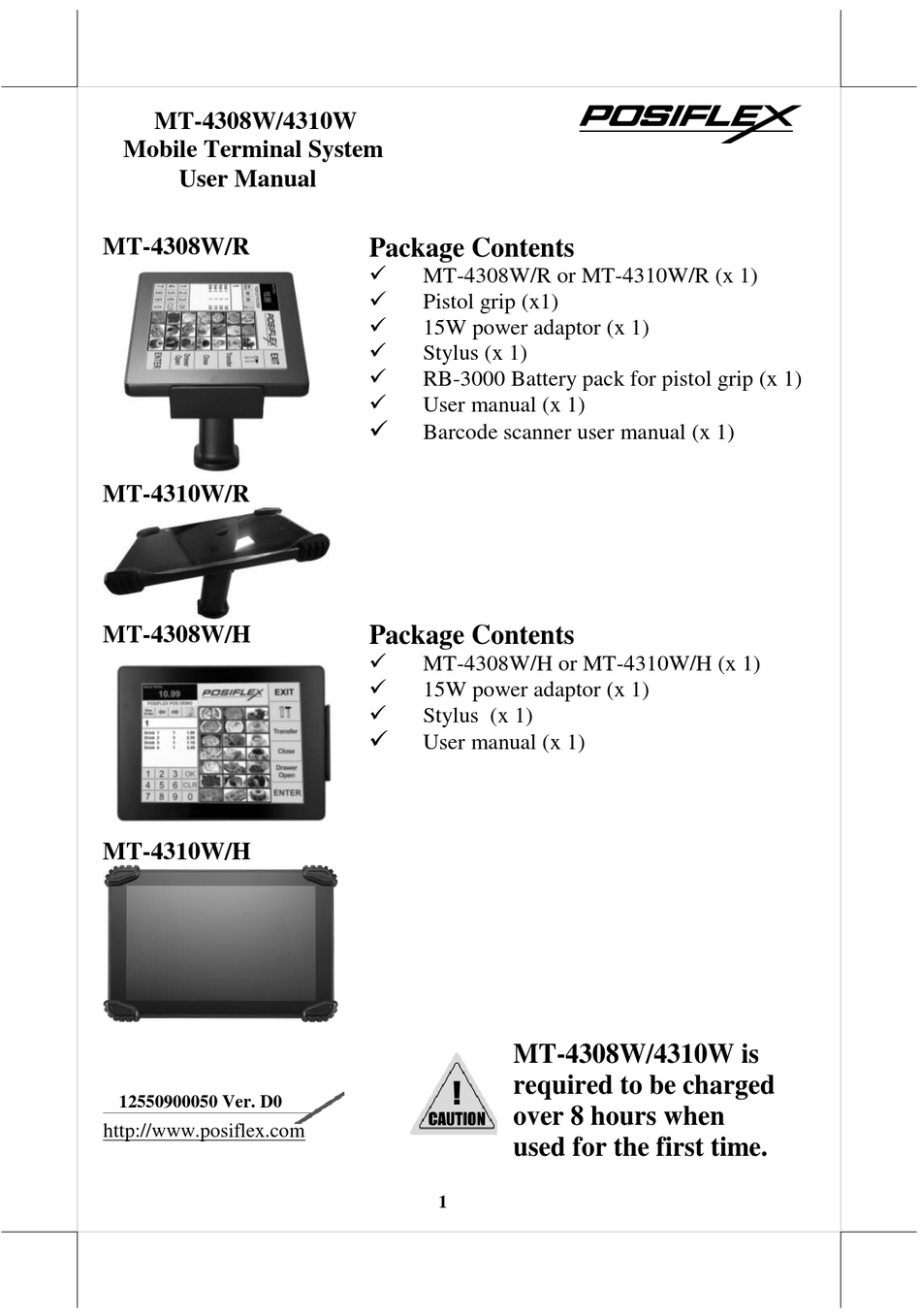

Package Contents
MT-4308W/R or MT-4310W/R (x 1)
Pistol grip (x1)
15W power adaptor (x 1)
Stylus (x 1)
RB-3000 Battery pack for pistol grip (x 1)
User manual (x 1)
Barcode scanner user manual (x 1)
Package Contents
MT-4308W/H or MT-4310W/H (x 1)
15W power adaptor (x 1)
Stylus (x 1)
User manual (x 1)
MT-4308W/4310W is
required to be charged
over 8 hours when
used for the first time.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX MT-4308W Series
Summary of Contents for POSIFLEX MT-4308W Series
- Page 1 MT-4308W/H or MT-4310W/H (x 1) 15W power adaptor (x 1) Stylus (x 1) User manual (x 1) MT-4310W/H MT-4308W/4310W is required to be charged 12550900050 Ver. D0 over 8 hours when http://www.posiflex.com used for the first time.
- Page 2 SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment.
- Page 3 BATTERY CAUTION NOTES Dispose of used batteries according to the instructions. Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types) Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery that can result in an explosion.
-
Page 4: Product Feature
Product Feature Ergonomic Design Pistol grip shape handle is ergonomically designed for easy handling of the tablet. Extra Protection Hand strap strengthens the stability and eases user’s fatigue during the hours of work. All-in-one Solution Optional dock station equips with a built-in 3” thermal printer and various I/O connectivity;... - Page 5 Top View microUSB Port Left Side View Docking Station Connector 5VDC-IN Power Jack Docking Station Locking Hole Right Side View Mic-in/Line-Out Micro SD Card Slot Combo Jack Nano SIM Card Slot Slot Power Button...
- Page 6 Views of MT-4310W/H Front View Rubber Cushion Projected Capacitive Touch Screen LED Indicator Rubber Cushion Rear View Hand strap Expansion Slot for Optional Attachment Rear Camera Speaker Left Side View Docking Station Connector 5VDC-IN Power Jack Mic-in/Line-Out Combo Jack Docking Station Locking Hole microUSB Port...
- Page 7 Right Side View Smart Card Reader Power Button (Optional) Micro SD Card Slot Nano SIM Card Slot (Only available for MT-4308W/4310W series with 3G Module) Load RB-3000 Battery Pack and a stylus into Pistol Grip PG-200E (for MT-4308W/R & MT-4310W/R) Both MT-4308W/R and MT-4310W/R with PG-200E pistol grip support 1D CCD, 1D Laser, and 2D barcode scanner.
- Page 8 3. After having the rail on the battery pack aligned with battery clip, push down the battery pack into battery compartment. 4. Push down the cover to close the battery compartment. Connecting the Pistol Grip onto MT-4308W/R & MT- 4310W/R MT-4308W/R and MT-4310W/R models are equipped with an additional pistol grip which aims to help users grip the terminal more easily while they are operating the scanner.
- Page 9 3. Make sure the head of the down arrow on the pistol grip is supposed to be aligned with the head of the arrow on the rear side of the tablet as the below figure shows, which indicates the pistol grip is well mounted.
- Page 10 3. Align the hand strap cover with the grooves on the rear side of the table. 4. Make sure that the hand strap cover is well attached to the rear side of the tablet. 5. Slide the hand strap cover up in the direction indicated by the arrow until it is clicked into place.
- Page 11 2. Slide the hand strap cover down in the direction indicated by the arrow. 3. Remove the hand strap cover from the rear side of the tablet. 4. Go through the Connecting the Pistol Grip onto MT-4308W/R & MT-4310W/R section which is described previously to complete the installation of the pistol grip onto the tablet.
-
Page 12: Charging The Battery
Charging the Battery Below are some cautionary advices you need to keep in mind while you attempt to charge the battery. 1. MT-4308W/4310W is required to be charged over 8 hours when used for the first time. 2. When the low battery warning message appears as shown below, please fully charge the battery to avoid data loss. -
Page 13: Status Led Indicator
For MT-4308W/H & MT-4310W/H Find the power jack on the left side of your tablet, and then connect the power connector of the power adaptor to it. Plug the AC power adaptor cord into an electrical outlet to initiate the charging process. - Page 14 Operating TA-220/300 Magnetic Stripe Reader (Optional) MT-4308W and MT-4310W models also offer MSR solutions. As optional items, TA-220/300 both allow you to integrate built-in MSR into MT-series tablet. However, TA-220 mainly supports MSR with RFID but TA-300 is an attachment combined with three-track MSR and finger printer sensor. Please go through the following instructions on how to operate magnetic stripe reader provided via TA-220/300.
-
Page 15: Installing An Operating System
Installing Optional Upgrade Kits Posiflex MT-4308W/4310W can work with multiple optional upgrade kits, such as MSR, Smart Card Reader and the like. For the detailed instructions, refer to the user manual related to each peripheral devices. - Page 16 Note: (*) Either smart card reader or 3G module can be installed into MT- 4310W system. ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the MT-4308W/4310W, please check this model from Posiflex Global Website...
