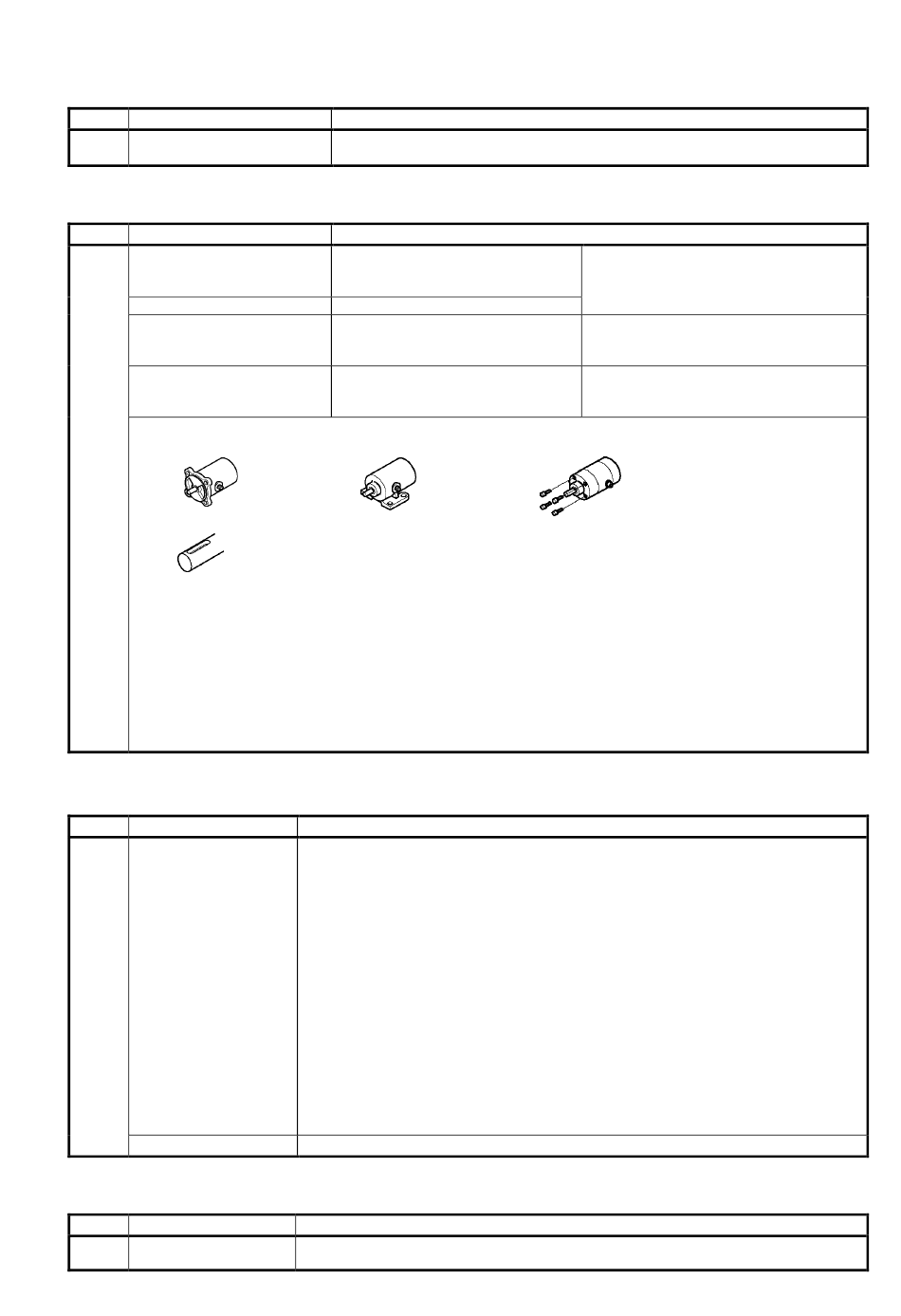

● Model List
◆ Converter
No. Model
(1) NCV-220HSSIM2R
◆ ABSOCODER sensor
No. Model
MRE-[1]SP061FK[3]
MRE-[1]SP074[2] K [3][L]-G
MRE-[1]SP097[2] K [3][L]-G
MRE-[1]SP101[2] K [3][L]-G
[2]: Mounting format
F: Flange-mount type
(2)
K: Input shaft (sunk key)
[3]: Connector type
B: Standard connector for the NSD special cable
(NJW-2012-PM8, manufacturer: Nanaboshi Electric Mfg.Co,Ltd.)
P: Large connector for JKPEV-S cable (NWPC-4012-Ad12, manufacturer: Nanaboshi Electric Mfg.Co,Ltd.)
R: Crimping terminals for JKPEV-S cable and the NSD special cable (R1.25-4)
[L]: Interconnecting sensor cable length (m): 2, 5,10, 20
G: Silicon oil injected, no code: no oil injected
◆ Extension sensor cable
No. Model
4P－[1]－[2] [3]－[L]
(3)
JKPEV-S(1.25mm
◆ Option
No. Model
(4) RB-01
For multi-turn type ABSOCODER sensor
General environment type
Flange-mount type
With Interconnecting cable 2m
Compact size heavy duty type, SUS
Heavy duty type, cast iron
Heavy duty type, SUS
L: Base-mount type
[1]...Cable type
S: Standard cable, RBT: Robotic cable, URT: Semi-heat-resistant robotic cable,
HRT: Heat-resistant robotic cable
[2]...Connector (Converter side)
01: Connector for connecting to a converter (R04-PB9M8.0A)
43: Standard connector (NJW-2012-PM8)
90: Crimping terminals (R-1.25-4)
[3]...Connector (Sensor side)
44: Standard connector (NJW-2012-AdF8)
55: Large connector (NWPC-4012-P12)
90: Crimping terminals (R-1.25-4)
[L]...Cable length (m)
Contact your NSD representative for the cable length.
2 ×5P) Commercially available cable
L-type flange for MRE-32SP061, MRE-G[ ]SP061
Description
Description
[1]: Total number of turns
32, G64, G128, G160, G256, G320
[1]: Total number of turns
32, G64, G128, G160, G256, G320, G512,
G1280, G2048
[1]: Total number of turns
32, G64, G128, G160, G256, G320, G512,
G1280, G2048, G2560, G3072
M: Face-mount type (Only available for MRE-SP074)
Description
Description
