9-6. System Ready Signal Output (NOR1, NOR2)

The system ready signal indicates that the normal position data is output from the converter.
The signal is ON when ABSOCODER sensor and converter operate normally.
For your safety, read the position data when the system ready signal is ON.

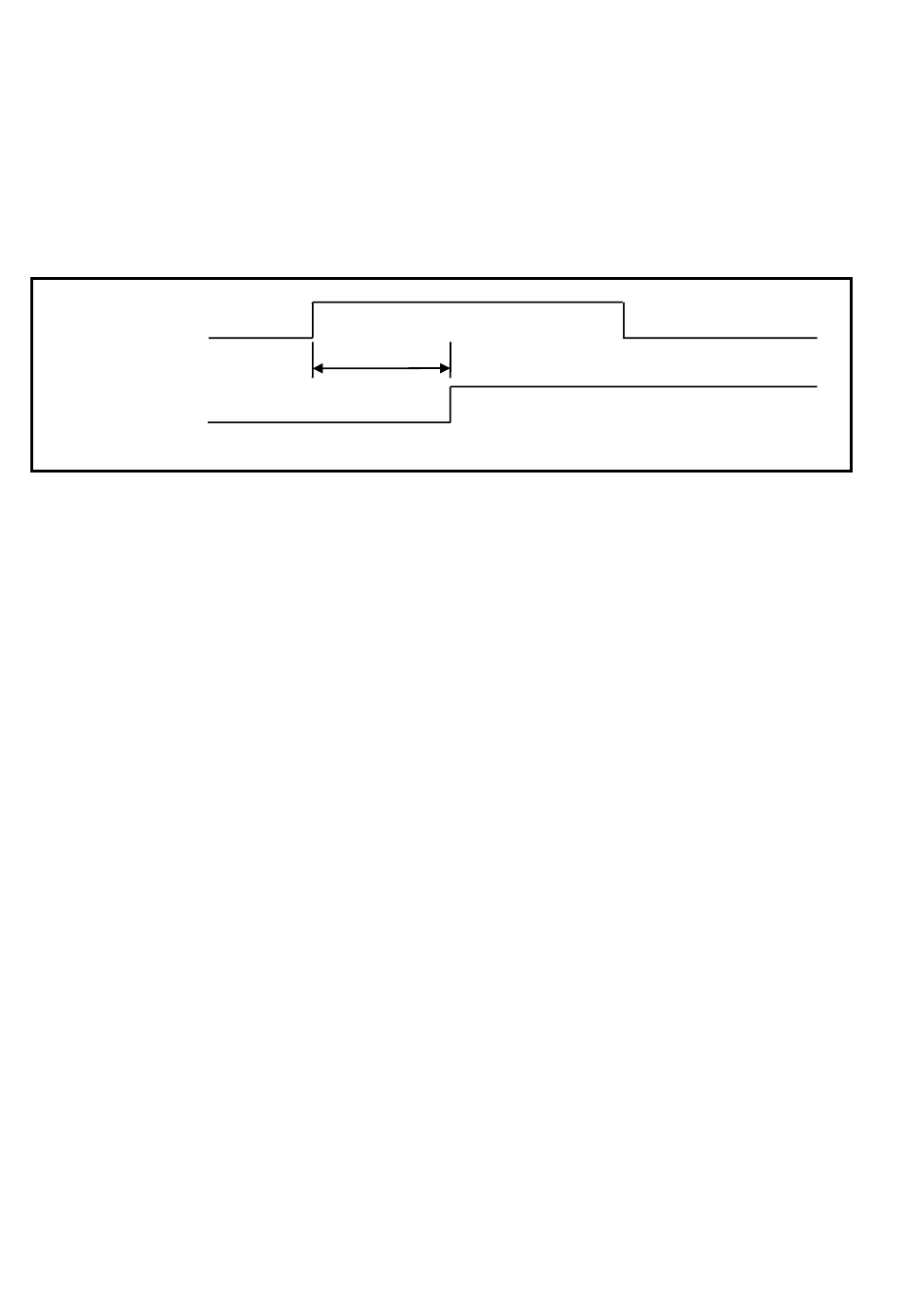

The following figure indicates the timing from turning ON the power supply to outputting the system ready signal.
ON
Power supply
OFF
ON
System ready
signal output
OFF
800ms max
