2. MODEL SELECTION WHEN ORDERING

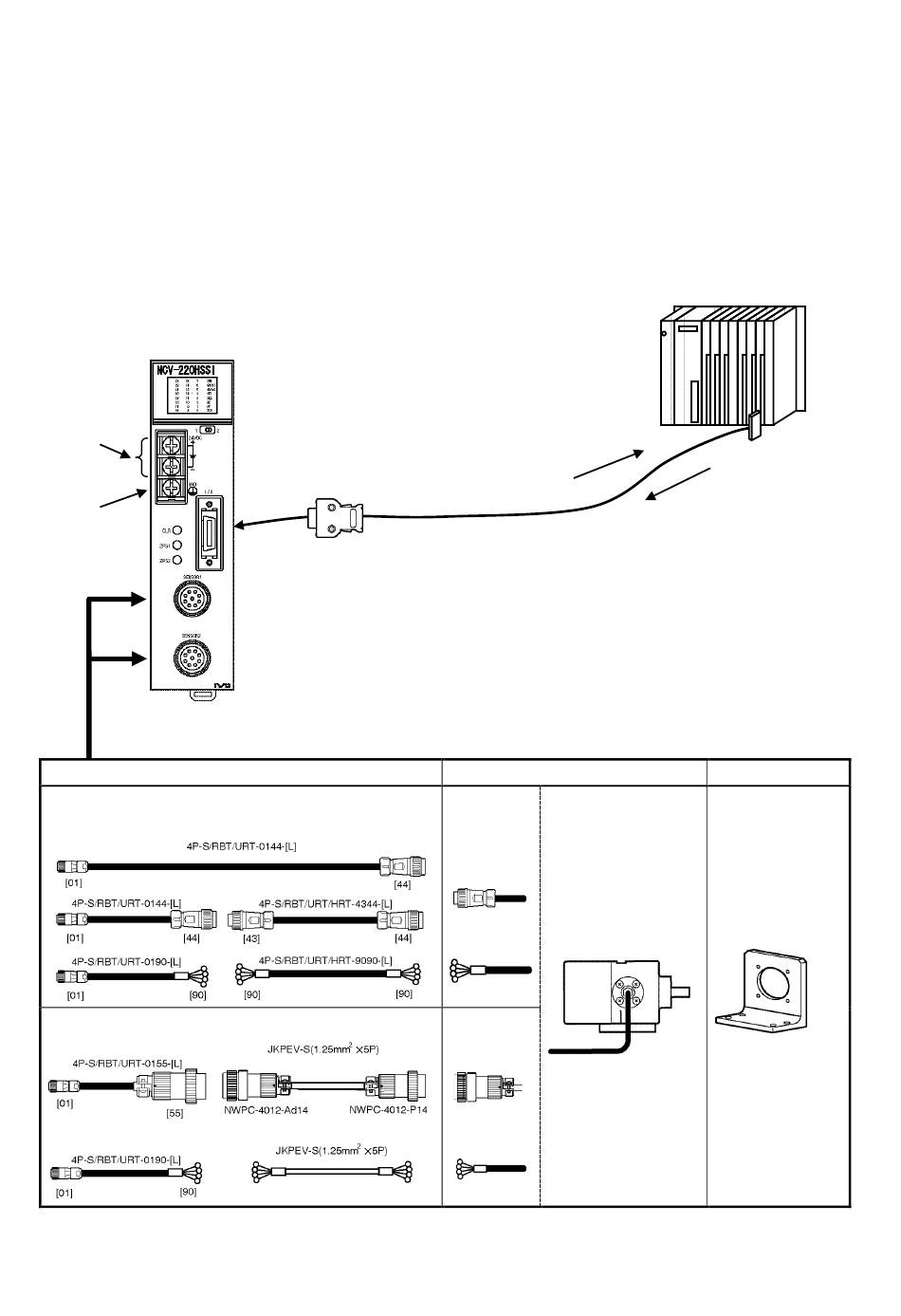

The following figure indicates the connection configuration of NCV-220HSSI.
Before ordering, refer to the connection configuration and model list. Please prepare by customer except 1 to 4 in the
connection configuration.
● Connection configuration
(1) Converter
Power
Supply
+24V
0V
Ground
(3) Extension sensor cable
-In the case of using the NSD special cable
-In the case of using the commercially available cable
Connector at cable side
(It is included in the converter.)
PCR-S20FS+: Soldered socket
PCR-LS20LA1: Cover
Connectors are manufactured by
Honda Tsushin Kogyo Co., LTD.
External output signal
-System ready
-SSI communication data
SSI cable
(2) ABSOCODER sensor
Connector
type
MRE-[ ]SP061
MRE-[ ]SP074
B
MRE-[ ]SP097
MRE-[ ]SP101
R
P
R
2
Host controller
PLC etc.
External input signal
-Zero point setting
-SSI communication CLK
-Error clear
(4) Option
RB-01
L type flange for
MRE-[ ]SP061
