3-1-3. Input / output specification

Items
ZPS1 (axis-1 zero point setting):
1-point
Input signals ZPS2 (axis-2 zero point setting):
1-point
CLR (error clear): 1-point
Input circuit DC input, photo-coupler isolation
Input logic Negative logic
Rated input voltage 24VDC
Input current 10mA TYP (24VDC)
Sink connection
Source connection
Input
Specifications Items
Output signals
Output circuit
Output logic
Rated load voltage
Max. load current
Max. voltage drop
when ON

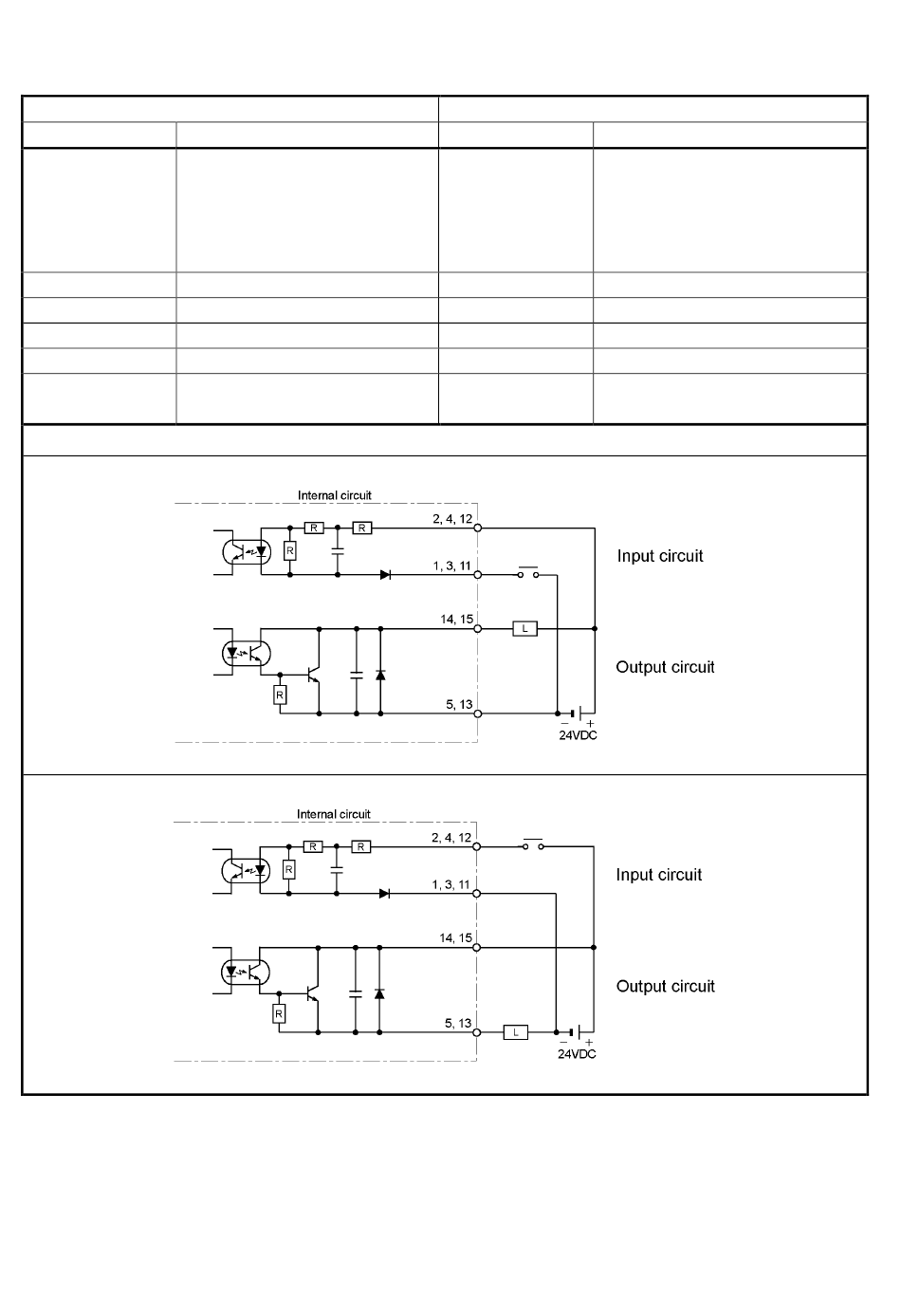

Circuit diagram
5
Output
Specifications
NOR1 (axis-1 system ready signal):
1-point
NOR2 (axis-2 system ready signal):
1-point
Photo-coupler isolation
Negative logic
24VDC (30VDC max)
100 mA
1.5V (100mA)
