NSD Absocoder NCV-220HSSIM2R Specifications & Instruction Manual page 33

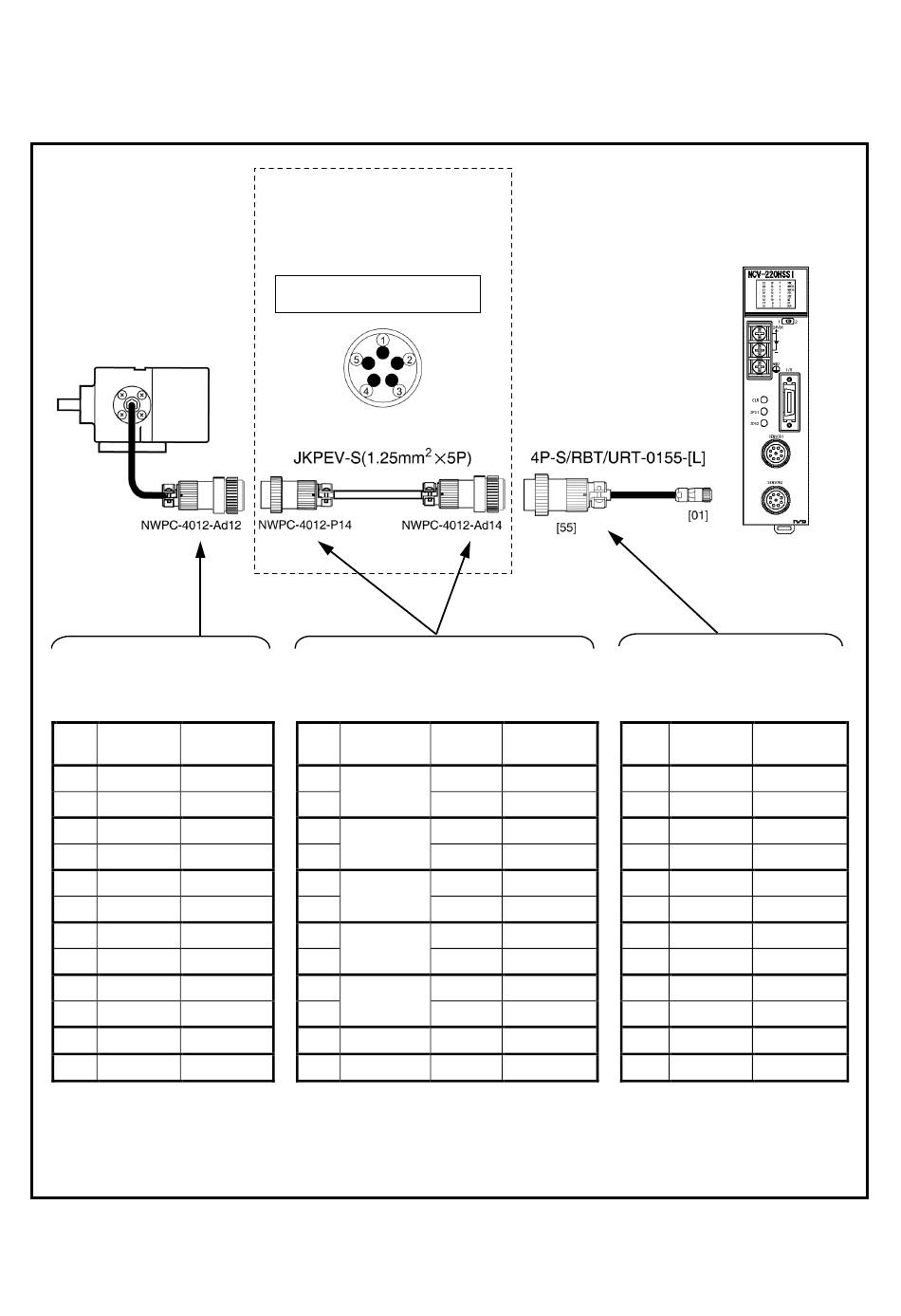

● In the case of using the commercially available cable (JKPEV-S 1.25mm
with a connector
ABSOCODER sensor
ABSOCODER sensor
Connector pin No.
and wire color
Pin Wire Signal
No. color names
1 Brown SIN＋
2 Red SIN－
3 Orange
－COS＋
4 Yellow
－COS－
5 Green OUT1＋
6 Blue OUT1－
7 Violet OUT2＋
8 Gray OUT2－
9
－ －
10
－ －
11 Shield Shield
12
－ －
Cautions for the connection by the connector
1: The wire No. of JKPEV-S cable is printed on the surface of the white wire.
2: Unused wires of JKPEV-S cable should be severed at both ends.
Please install the connector
by customers
JKPEV-S Cable cross section
Commercially available cable
JKPEV-S cable
Connector pin No. and wire color
Pin Wire No.
No. (pair)
1 White
1
2 Black
3 White
2
4 Black
5 White
3
6 Black
7 White
4
8 Black
9 5 White
(Not used)
10 Black
11 Shield
12
－
27
NSD special cable
Wire Signal
color names
SIN＋
SIN－
－COS＋
－COS－
OUT1＋
OUT1－
OUT2＋
OUT2－
－
－
Shield
－ －
2 ×5P) and connecting
Converter
NSD special cable
Connector pin No.
and wire color
Pin Wire Signal
No. color names
1 Brown SIN＋
2 Red SIN－
3 Orange
－COS＋
4 Yellow
－COS－
5 Green OUT1＋
6 Blue OUT1－
7 Violet OUT2＋
8 Gray OUT2－
9
－
10
－
11 Shield Shield
12
－
－
－
－
