(11) [ID] key
Press when setting the PIN mode.
(12) [Clear] key
Deletes letters and numbers.
(13) [Stop] key
Cancels jobs.
(14) [Start] key
[B & W] key
Starts the copy/scan/fax operation in black and white.
[Color] key
Starts the copy/scan/operation in color.
(15) [Reset] key
Resets the settings. (Resets the copy/scan/fax mode to the
standard mode.)
(16) [View Settings] key
You can check the settings.
(17) [ ] / [ ] / [
• [ ] key
Selects an upper item or increases a value.
• [ ] key
Selects a lower item or decreases a value.
• [ ] key
Returns to the previous screen or moves the cursor.
Decreases the volume of communication sound when pressed
during the fax communication.
• [ ] key
Proceeds to the next screen or moves the cursor.
Increases the volume of communication sound when pressed
during the fax communication.

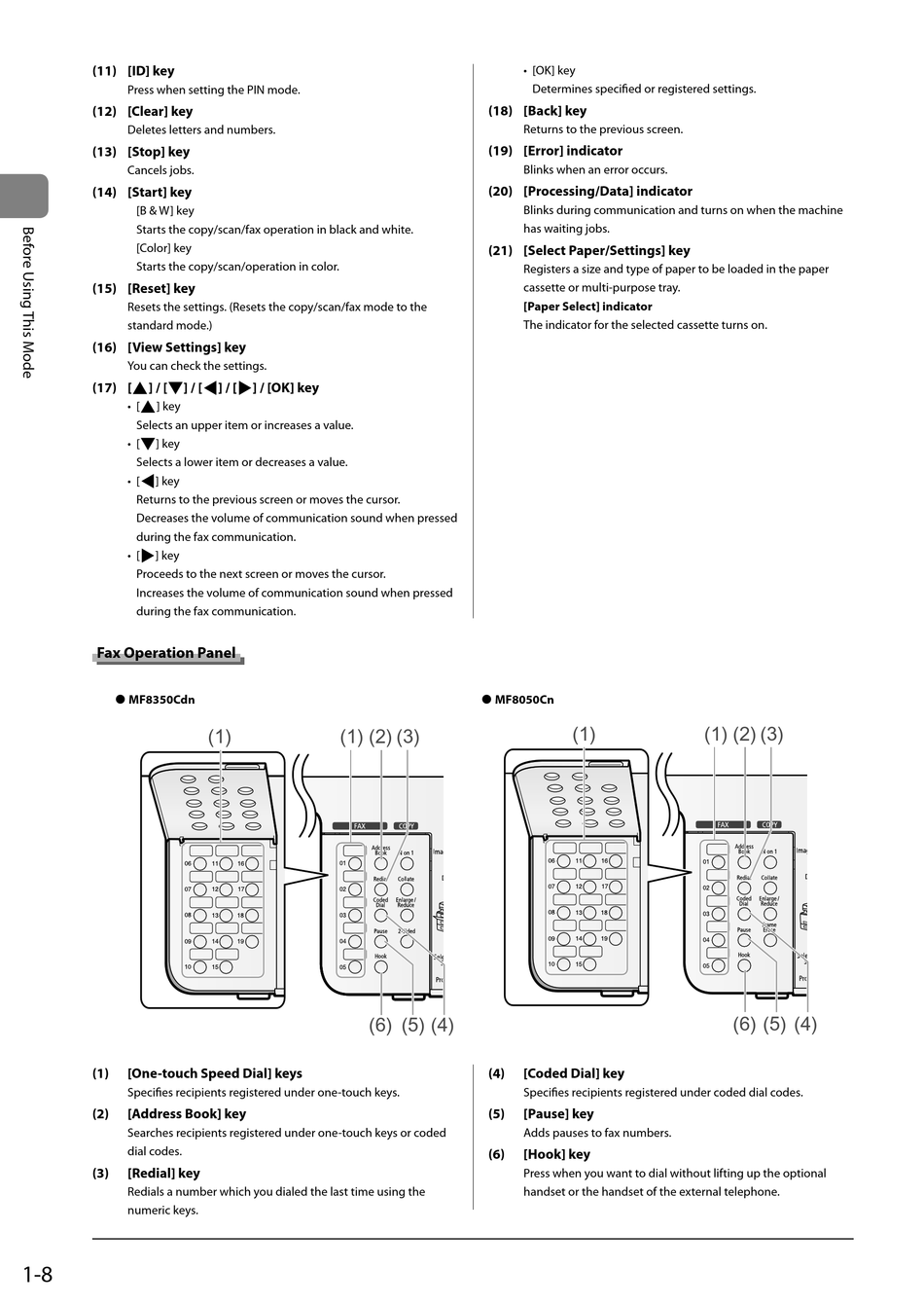

Fax Operation Panel

MF8350Cdn
l
(1) [One-touch Speed Dial] keys
Specifies recipients registered under one-touch keys.
(2) [Address Book] key
Searches recipients registered under one-touch keys or coded
dial codes.
(3) [Redial] key
Redials a number which you dialed the last time using the
numeric keys.
1-8
] / [ ] / [OK] key
(1) (1) (2) (3)
(6) (5) (4)
• [OK] key
Determines specified or registered settings.
(18) [Back] key
Returns to the previous screen.
(19) [Error] indicator
Blinks when an error occurs.
(20) [Processing/Data] indicator
Blinks during communication and turns on when the machine
has waiting jobs.
(21) [Select Paper/Settings] key
Registers a size and type of paper to be loaded in the paper
cassette or multi-purpose tray.
[Paper Select] indicator
The indicator for the selected cassette turns on.
MF8050Cn
l
(1)
(4) [Coded Dial] key
Specifies recipients registered under coded dial codes.
(5) [Pause] key
Adds pauses to fax numbers.
(6) [Hook] key
Press when you want to dial without lifting up the optional
handset or the handset of the external telephone.
(1) (2) (3)
(6) (5) (4)
