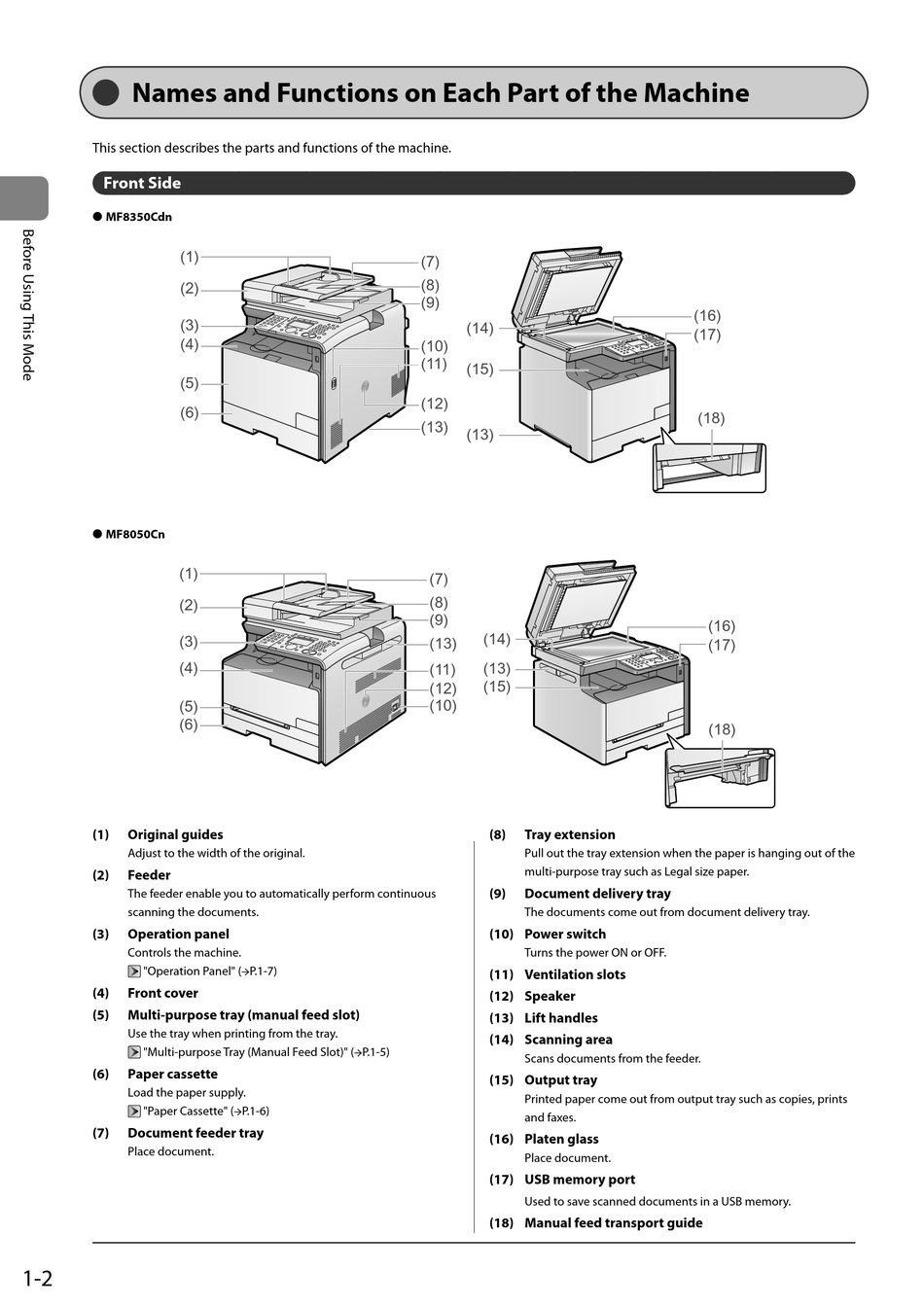

Names and Functions on Each Part of the Machine

This section describes the parts and functions of the machine.

Front Side

MF8350Cdn
l
(1)
(2)
(3)
(4)
(5)
(6)
MF8050Cn
l
(1)
(2)
(3)
(4)
(5)
(6)
(1) Original guides
Adjust to the width of the original.
(2) Feeder
The feeder enable you to automatically perform continuous
scanning the documents.
(3) Operation panel
Controls the machine.
"Operation Panel" (→P.1-7)
(4) Front cover
(5) Multi-purpose tray (manual feed slot)
Use the tray when printing from the tray.
"Multi-purpose Tray (Manual Feed Slot)" (→P.1-5)
(6) Paper cassette
Load the paper supply.
"Paper Cassette" (→P.1-6)
(7) Document feeder tray
Place document.
1-2
(7)
(8)
(9)
(14)
(10)
(11)
(15)
(12)
(13)
(13)
(7)
(8)
(9)
(14)
(13)
(13)
(11)
(15)
(12)
(10)
(8) Tray extension
Pull out the tray extension when the paper is hanging out of the
multi-purpose tray such as Legal size paper.
(9) Document delivery tray
The documents come out from document delivery tray.
(10) Power switch
Turns the power ON or OFF.
(11) Ventilation slots
(12) Speaker
(13) Lift handles
(14) Scanning area
Scans documents from the feeder.
(15) Output tray
Printed paper come out from output tray such as copies, prints
and faxes.
(16) Platen glass
Place document.
(17) USB memory port
Used to save scanned documents in a USB memory.
(18) Manual feed transport guide
(16)
(17)
(18)
(16)
(17)
(18)
