Canon Color imageCLASS MF8050Cn Starter Manual

Canon Color imageCLASS MF8050Cn Starter Manual

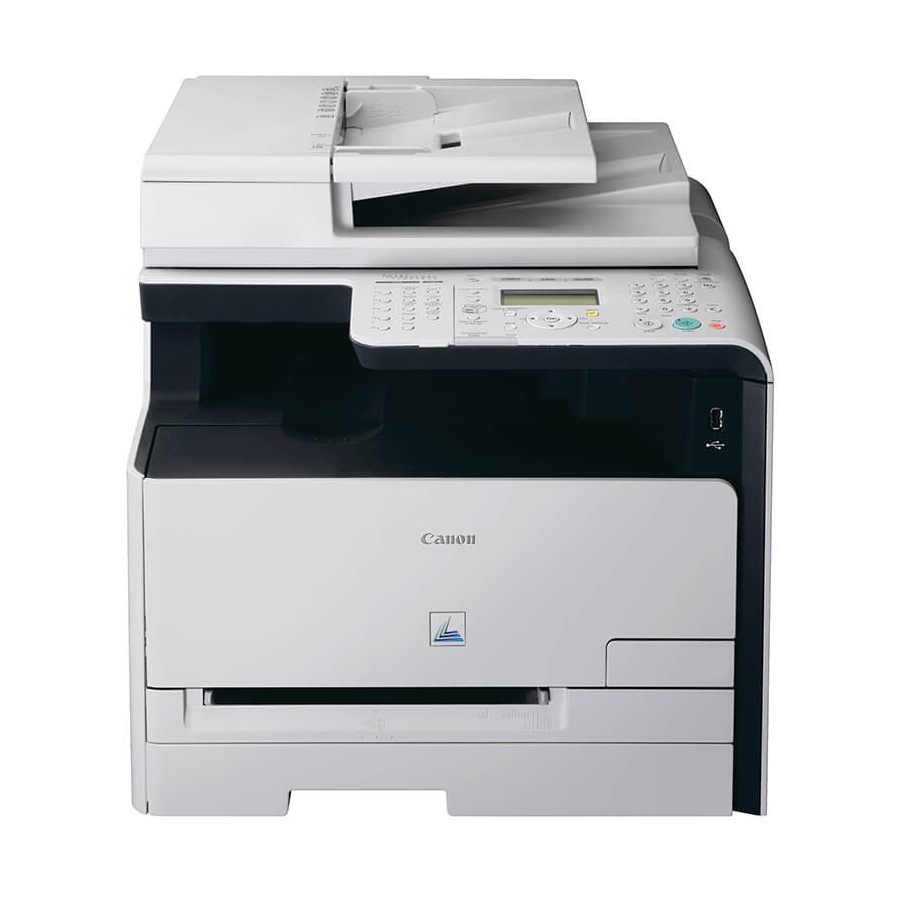

Color laser multifunction printer
Hide thumbs Also See for Color imageCLASS MF8050Cn:
Table of Contents

Advertisement

Quick Links

See also: Basic Operation Manual
Starter Guide
Read this guide first.
Please read this guide before operating this
product.
The remarks for important safety
instructions are described in "Basic
Operation Guide." Read the guide also.
After you finish reading this guide, store it in
a safe place for future reference.
1
2
3
4
Preface
Next Page
Installing the Machine
P. 4
Configuring and
Connecting the Fax
P. 11
Connecting to a Computer
and Installing the Drivers
P. 15
Appendix
P. A-1

Advertisement

Table of Contents
loading

Related Manuals for Canon Color imageCLASS MF8050Cn

Summary of Contents for Canon Color imageCLASS MF8050Cn

  • Page 1 Starter Guide Read this guide first. Please read this guide before operating this product. The remarks for important safety instructions are described in "Basic Operation Guide." Read the guide also. After you finish reading this guide, store it in a safe place for future reference. Preface Installing the Machine Configuring and...

  • Page 2: Setting Up

    Setting Up the Machine to Suit Your Needs Determine which machine functions (Copy, Print, Fax, PC Fax, Scan, Remote UI) you intend to use, and make settings according to the flowchart below. Copy Carrying the Machine to the Installation Site and Removing the Packing Materials Loading Paper P.

  • Page 3: Checking The Supplied Accessories

    Connecting to a Computer and Configuring and Connecting the Fax Installing the Drivers Appendix If an item is missing or damaged, please contact our Canon Authorized Service Facilities or the Canon Customer Care Center. About the LAN cable The machine does not come with a LAN cable or a hub.

  • Page 4: User Software Cd-Rom

    If you install the fax driver on your computer, you can select “Print” from an application, select the Canon fax driver as a printer, and specify the output destination and options. The fax driver converts the data into an image that conforms to standard fax protocols so that the data can be printed or saved using the recipient’s fax machine.

  • Page 5: About The Supplied Manuals

    Preface Installing the Machine About the Supplied Manuals Read this manual first. This manual describes the settings for the machine and software installation. Be sure to read this manual before using the machine. Read this manual next. This manual describes the basic machine operations.

  • Page 6: Remove The Packing Materials

    Carrying the Machine to the Installation Site and Removing the Packing Materials Carry the machine to the installation site. Hold the grips. Remove the packing materials. Remove these packing materials after. Remove the packing material. Carry the machine with two or more people. The packing materials may be changed in form or placement, or may be added or removed without notice.

  • Page 7: Preparing The Toner Cartridges

    Preface Installing the Machine Close the rear cover. Check! Did you remove all the packing materials? Tape Packing material Packing materials with tape Preparing the Toner Cartridges Open the front cover and pull out the toner cartridge tray. Open the front cover. Connecting to a Computer and Configuring and Connecting the Fax Installing the Drivers...

  • Page 8: Loading Paper

    Pull out the sealing tapes on the four toner cartridges. Hold down the toner cartridge. Check! Did you remove all the packing materials? Push the toner cartridge tray back in, and then close the front cover. Loading Paper Load paper in the paper cassette.
  • Page 9 Preface Installing the Machine Slide the side paper guides. Spread the paper guides a little wider than the actual paper width. Hold the lock release lever and slide the paper guides. Spread the paper guides a little wider than the actual paper width.

  • Page 10: Connecting The Power Cord

    Connecting the Power Cord Make sure that the machine is off. Do not connect the USB cable. Connect the USB cable when installing the software. Turning the Power ON and Specifying the Initial Settings Turn ON the power of the machine. Specify initial settings.
  • Page 11 Preface Installing the Machine Check and press [OK]. Use the numeric keys, and then press [OK]. Check that paper is loaded in Drawer 1. Current Time Settings 2010 01/01 Next • Move the cursor with [ ] or [ ]. •...

  • Page 12: Setting A Paper Size And Type

    Setting a Paper Size and Type Press [ ] (Select Paper/ Settings). Select with [ ] or [ ], and then press [OK]. Paper Size STMT EXEC Select with [ ] or [ ], and then press [OK]. Select Paper MP Tray LTR:Plain 2 Paper Settings...

  • Page 13: Specifying Initial Fax Settings And Connecting A Telephone Cable

    ) [ ] { } < > * + = " , ; : text) ' ^ ` | \ Enter. Fax No. 031234567 <Apply> Select <Apply> with [ and then press [OK]. Page Number/ Fax/Telephone Number Total Number of Pages (FAX No.) Sender Name Job Number (Username) 123XXXXXXX CANON #0001 P.001/006...
  • Page 14 S et the fax receive mode. You can specify how the machine should operate for a fax call or telephone call. By answering the prompts that appear on the display, the machine will be set to one of the following four operation modes.
  • Page 15 Preface Installing the Machine Connect a telephone line. Press [OK]. The displayed screen varies depending on the specified receive mode. Connect phone line. Follow instructions on the next screen. Connect line to A. *Next: Press OK Connect phone line. Follow instructions on the next screen to make connections: 1.
  • Page 16 Change the line type. By default, the telephone line type on the machine is set to tone dialing. If you use tone dialing, skip the following procedure. If you use pulse dialing, follow the procedure below and change the telephone line type setting on the machine to pulse dialing.

  • Page 17: Selecting A Method For Connecting The Machine To A Computer

    Preface Installing the Machine Selecting a Method for Connecting the Machine to a Computer There are two ways to connect the machine to a computer: Network connection and USB connection. Select the connection type according to your environment or functions to be used. Functions with USB connection and network connection can be used simultaneously.
  • Page 18 Installing via Network Connection (For Windows) Check the following points. Turn on the computer, and then log on as a user with administrative privileges. If you have already logged on, exit all applications which are running. Install the MF Drivers and MF Toolbox. Insert the CD-ROM.
  • Page 19 Preface Installing the Machine Select. Click. Next, installation of MF Toolbox starts. Click. Click. Connecting to a Computer and Configuring and Connecting the Fax Installing the Drivers If no devices are displayed in [Device List] Perform the following procedure. Check the following. •...
  • Page 20 Installing with USB Connection (For Windows) • Connect the USB cable after installing the software. • Make sure that the power of the machine is turned ON when connecting the USB cable. Turn on the computer, and then log on as a user with administrative privileges.

  • Page 21: Connect The Usb Cable

    Preface Installing the Machine Click. Click. Connect the USB cable. Remove cap plug. Remove by pulling the string. Connecting to a Computer and Configuring and Connecting the Fax Installing the Drivers Next, installation of MF Toolbox starts. In Windows 2000 Server/Server 2003/2008, MF Toolbox is not installed.

  • Page 22: Checking The Installation Results (For Windows)

    Checking the Installation Results (For Windows) Make sure that the MF Drivers and MF Toolbox are installed correctly. Make sure that the icons for the installed software are added as follows. Software Location Printer folder • Printer driver Windows 2000 From the [Start] menu, select [Settings] →...

  • Page 23: Installing The Software (For Macintosh)

    Preface Installing the Machine Installing the Software (For Macintosh) • The scanning function can be used only with a USB connection. (It cannot be used with a network connection.) • The installation screen varies depending on the version of Mac OS X. Insert the CD-ROM.

  • Page 24: Registering The Printer And Fax ( For Macintosh )

    Select a printer name for which [Bonjour] is displayed in the [Kind] or [Connection] column. Select. If you are using Mac OS X 10.4.x, select [Canon] from [Print Using]. If the following screen appears, select a method for fax connection. Checking the Installation Results P.
  • Page 25 When connecting with IPv6 Perform either of the following procedures. • When registering the printer 1. Click [More Printers]. 2. Select [Canon IPv6 (CUPS CMFP)]. • When registering the fax 1. Click [More Printers]. 2. Select [Canon IPv6 (CUPS Fax)]. Select.
  • Page 26 You can use the drivers when the registration of this machine is completed. The computer is connected with the scanner. Open the Image Capture application of your Mac OS X. When [Canon MF8000 Series] appears in the following locations, the installation of the driver was successful. • Mac OS X 10.4.x/10.5.x The pull-down menu displayed by clicking [Devices] in the menu bar.

  • Page 27: Using The E-Manual

    Preface Installing the Machine Using the e -Manual Page configuration of the e-Manual When you start the e-Manual, the screen below is displayed. Click to refer to the contents, glossary, and how to use the e-Manual. Click a button for the function which you want to use or desired information.
  • Page 28 For Macintosh Installing the e-Manual on your computer Insert the User Software CD-ROM in your computer. Open the [Manual] → [us_eng] folders. Drag and drop the [Source] folder into a location where you want to save it. When displaying the installed e-Manual, double-click [index.html] in the saved [Source] folder. Displaying the e-Manual directly from the CD-ROM Insert the User Software CD-ROM in your computer.

  • Page 29: Checking The Ip Address

    Preface Installing the Machine Checking the IP Address Press [ ] (Status Monitor/Cancel). Select with [ ] or [ and then press [OK]. IPv4 IP Address Subnet Mask Gateway Address Host Name Check the network operation. Start the web browser of a computer which is connected to a network.

  • Page 30: If You Want To Uninstall The Installed Software

    From the [Start] menu, click [(All) Programs] → [Canon] → [MF8000] → [Uninstall Drivers]. Click. For MF Toolbox From the [Start] menu, click [(All) Programs] → [Canon] → [MF Toolbox 4.9] → [Toolbox Uninstall]. Click. For Macintosh Insert the CD-ROM.
  • Page 31 UFST: Copyright © (2009) Monotype Image, Inc. Trademarks Canon, the Canon logo, and Color imageCLASS are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries. Microsoft, Windows and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
  • Page 32 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan CANON MARKETING JAPAN INC. 16-6, Konan 2-chome, Minato-ku, Tokyo 108-8011, Japan CANON U.S.A., INC. One Canon Plaza, Lake Success, NY 11042, U.S.A. CANON EUROPA N.V. Bovenkerkerweg, 59-61, 1185 XB Amstelveen, The Netherlands CANON CHINA CO. LTD.
