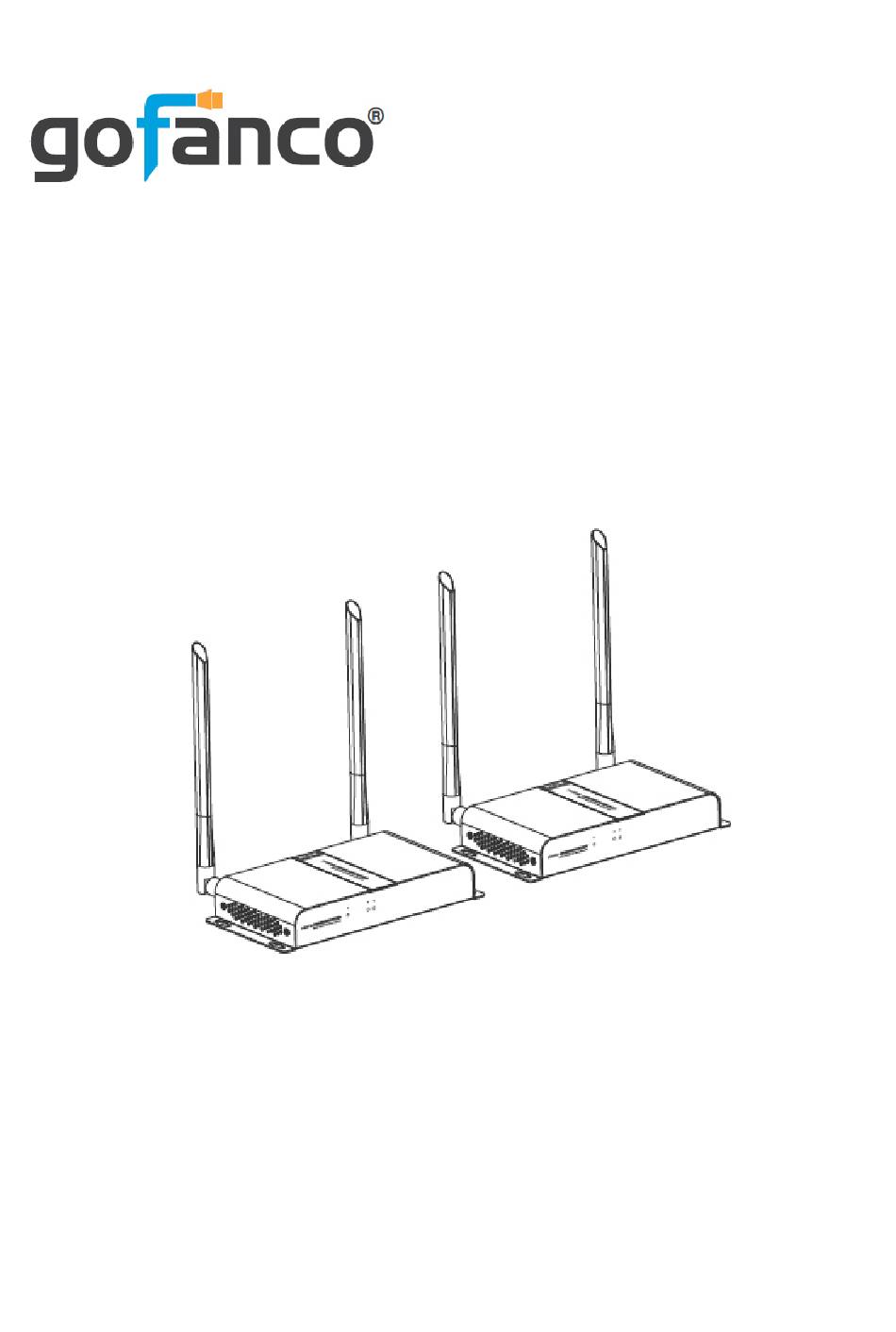

- Page 1 Wireless HDMI Extender Kit 4K - 200m User's Guide P/N:HDwireless4K G4-0051A...
-
Page 2: Important Safety Notices
Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com. - Page 3 Supports IR remote control function to control the source device from long distances • No cables required between Transmitter (TX) and Receiver (RX) • Supports up to 2 Receiver units. Additional Receiver unit (part# HDwireless4K-RX) sold separately • Easy and clean installation...
-
Page 4: Package Contents
Package Contents DC5V/3.5A Power Receiver (RX) (1pc) Transmitter (TX) (1pc) Adapter (2pcs) IR Blaster Extension IR Receiver Extension Cable (1pc) User's Guide (1pc) Cable (1pc) Installation Requirements HDMI source device (DVD player, set top box, PC, etc.) HDMI display device (SDTV/Monitor, HDTV/ Monitor, projector, etc.) HDMI Cables (not included) -
Page 5: Product Layout
Product Layout Figure 1: Transmitter (TX) 1. Power LED Lights up when the transmitter is powered on Blinks slowly when searching for device 2. Data Transmission LED Blinks fast when device is detected successfully 3. Connection LED Lights up when the wireless signal is connected 4. -
Page 6: Hardware Installation
Hardware Installation Power off all devices including your HDMI source and HDMI display. Install the included antennas to the TX and RX. Connect your HDMI source device to the Transmitter's HDMI Input connector with an HDMI cable (HDMI cable not included). Optional: Connect the IR Blaster Extension Cable to the Transmitter's IR interface port. -
Page 7: Application Diagram
Application Diagram One-to-One Connection Receiver (RX) Transmitter (TX) Figure 3: One TX to One RX One-to-Two Connection Additional Receiver (part# HDwireless4K-RX) sold separately Receiver (RX) Transmitter (TX) Receiver (RX) Figure 4: One TX to Two RXs... - Page 8 Notice • Wireless signals transmitted through walls, glass, brick or other solid objects will cause signal loss and decrease the transmission distance • External wireless signals from microwaves, wireless mice and wireless keyboards will interfere with HDMI signal transmission • Keep the unit in a well ventilated environment to prevent it from overheating •...
- Page 9 FAQ & Solutions What if my display shows "Waiting for connection..." on the bottom right corner? Please check if the power adapters of Transmitter (TX) and Receiver (RX) are connected and power LED is ON. The display says, "Please check the TX input signal" 1) Please check if there is HDMI signal input from the Transmitter (TX) unit.
-
Page 10: Specifications
Specifications Item Specification HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 Wireless Transmission 5.1 - 5.8G Wireless Latency <200ms 480i@60Hz, 480P@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, Input Resolution 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K@24/25/30/60Hz Output Resolution 1080p@60Hz, 4Kx2K@30/60Hz IR Remote Control Supports 20kHz~60kHz IR remote devices Transmission Distance Up to 200 meters Operating Temperature... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
