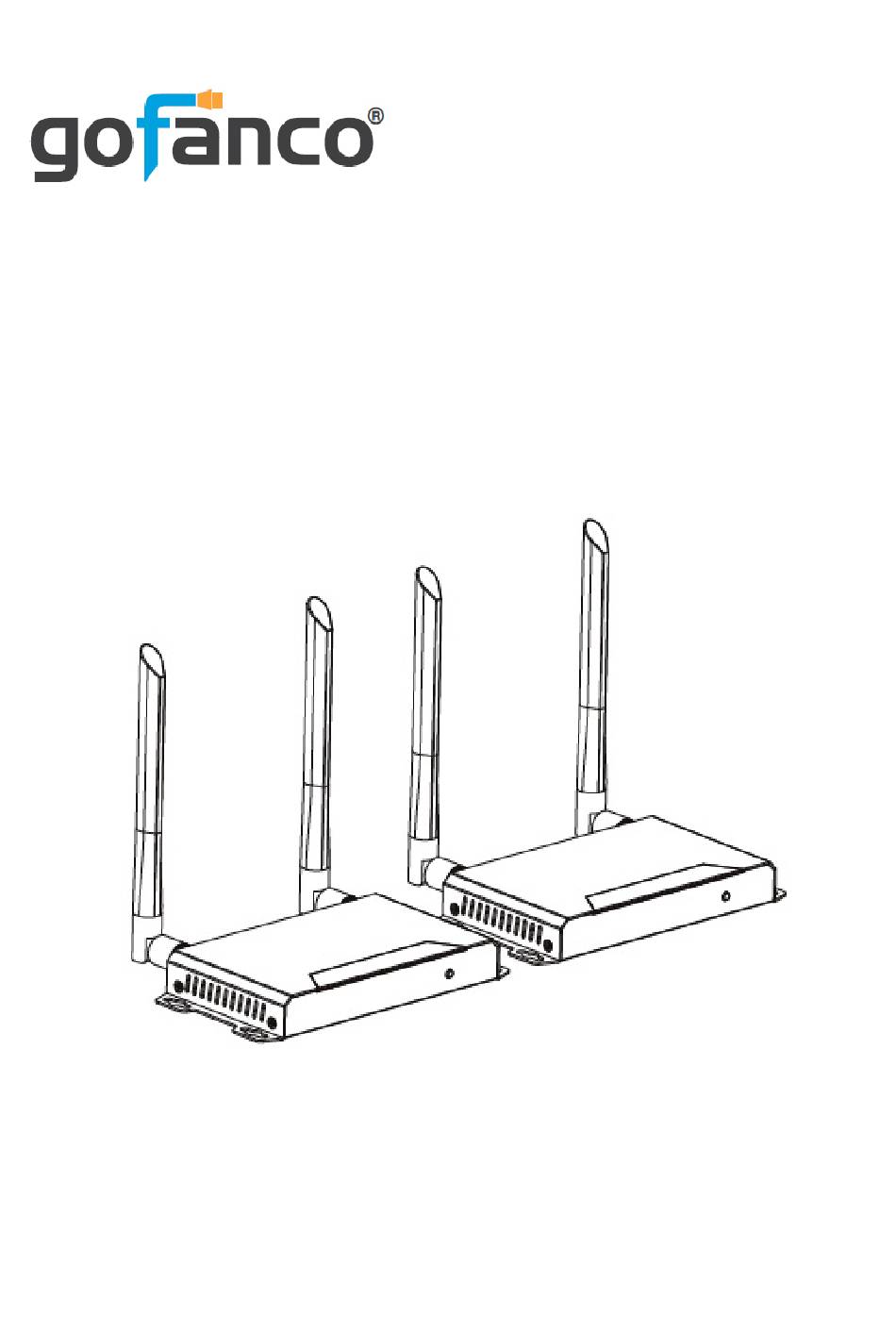

- Page 1 Wireless HDMI Extender Kit 1080p - 100m User's Guide P/N:HDwireless100 G4-0077A...
-
Page 2: Important Safety Notices
Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com. - Page 3 Introduction The Wireless HDMI Extender Kit 1080p - 100m extends HDMI signals wirelessly from a source device to a display device up to 100 meters. It requires no cables between the Transmitter (TX) and Receiver (RX), making the installation easy and clean. Great for homes and offices. Note: Wireless transmission distance will vary due to the environmental conditions.
-
Page 4: Package Contents

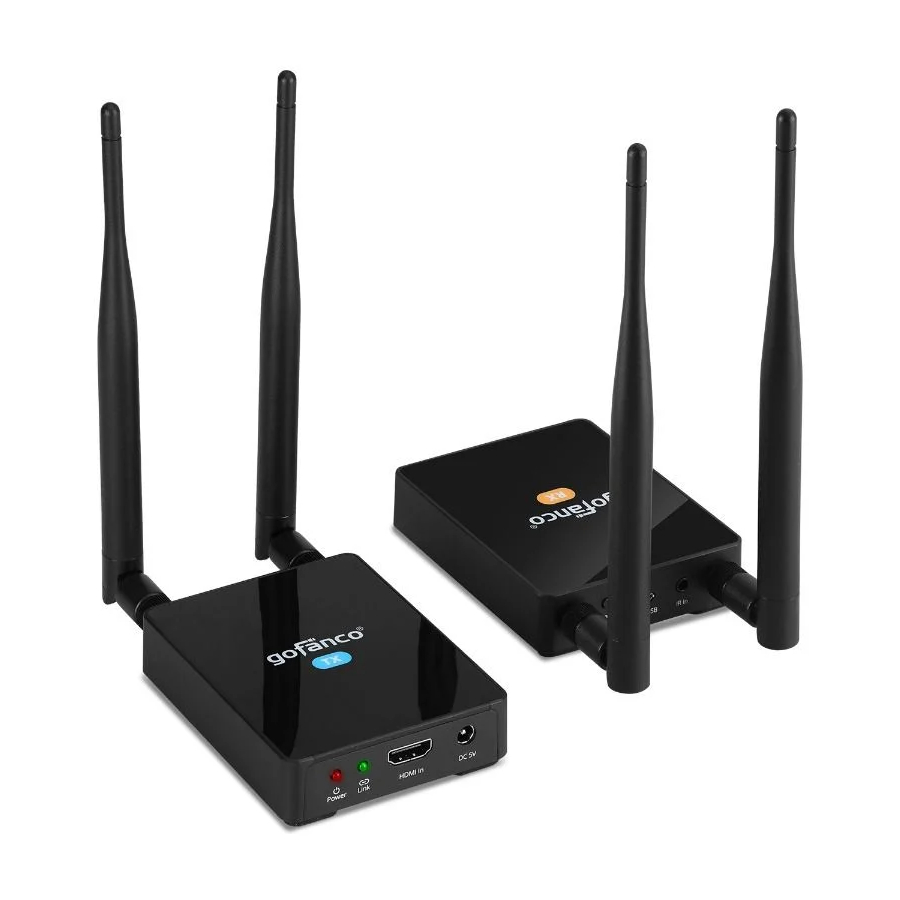

Package Contents Transmitter (TX) (1pc) Receiver (RX) (1pc) DC5V/2A Power Adapter (2pcs) IR Blaster Cable (1pc) IR Receiver Cable (1pc) User's Guide (1pc) Antenna (4pcs) Installation Requirements HDMI source device (DVD player, set top box, PC, etc.) HDMI display device (SDTV/Monitor, HDTV/ Monitor, projector, etc.) HDMI cables (not included) - Page 5 Product Layout Figure 1: Transmitter (TX) 1. Antenna Connects to an included antenna 2. Power Jack Connects to an include Power Adapter 3. HDMI Input Connects to an HDMI source device 4. HDMI Signal LED On when the HDMI source signal is detected On: The Transmitter and Receiver are linked 5.
-
Page 6: Hardware Installation
Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Install the included antennas to the TX and RX. Connect your HDMI source device to the Transmitter's HDMI Input connector with an HDMI cable (HDMI cable not included). Optional: Connect your HDMI display to the Transmitter's HDMI Output connector with an HDMI cable (HDMI cable not included). - Page 7 Power on your HDMI source device and HDMI display(s). The wireless extender is ready for use. Note: For optimal signal range, install in a clear environment with few obstacles. Wireless signals from other devices, such as microwaves, wireless mice and keyboards, etc. may interfere with transmission.
- Page 8 Notice • Wireless signals transmitted through walls, glass, brick or other solid objects will cause signal loss and decrease the transmission distance • External wireless signals from microwaves, wireless mice and wireless keyboards will interfere with HDMI signal transmission • Keep the unit in a well ventilated environment to prevent it from overheating •...
-
Page 9: Faq And Troubleshooting
FAQ & Troubleshooting The Wireless Connection LED is on, but no video output on the remote display: 1) Check the HDMI source device is powered on. 2) Check the transmitter's HDMI Signal LED is on. 3) Check the HDMI cables for solid connection. Use different HDMI cables if necessary. -
Page 10: Specifications
Specifications Item Specification Wireless Frequency 5GHz Wireless Latency <500ms 480i@60Hz, 480P@60Hz, 576i@50Hz, Resolution (Input & Output) 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz HDMI 1.3 Compliance HDCP 1.2 IR Remote Control Supports 20KHz~60KHz IR remote devices Transmission Distance Up to 100 meters Operating Temperature 32°... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
