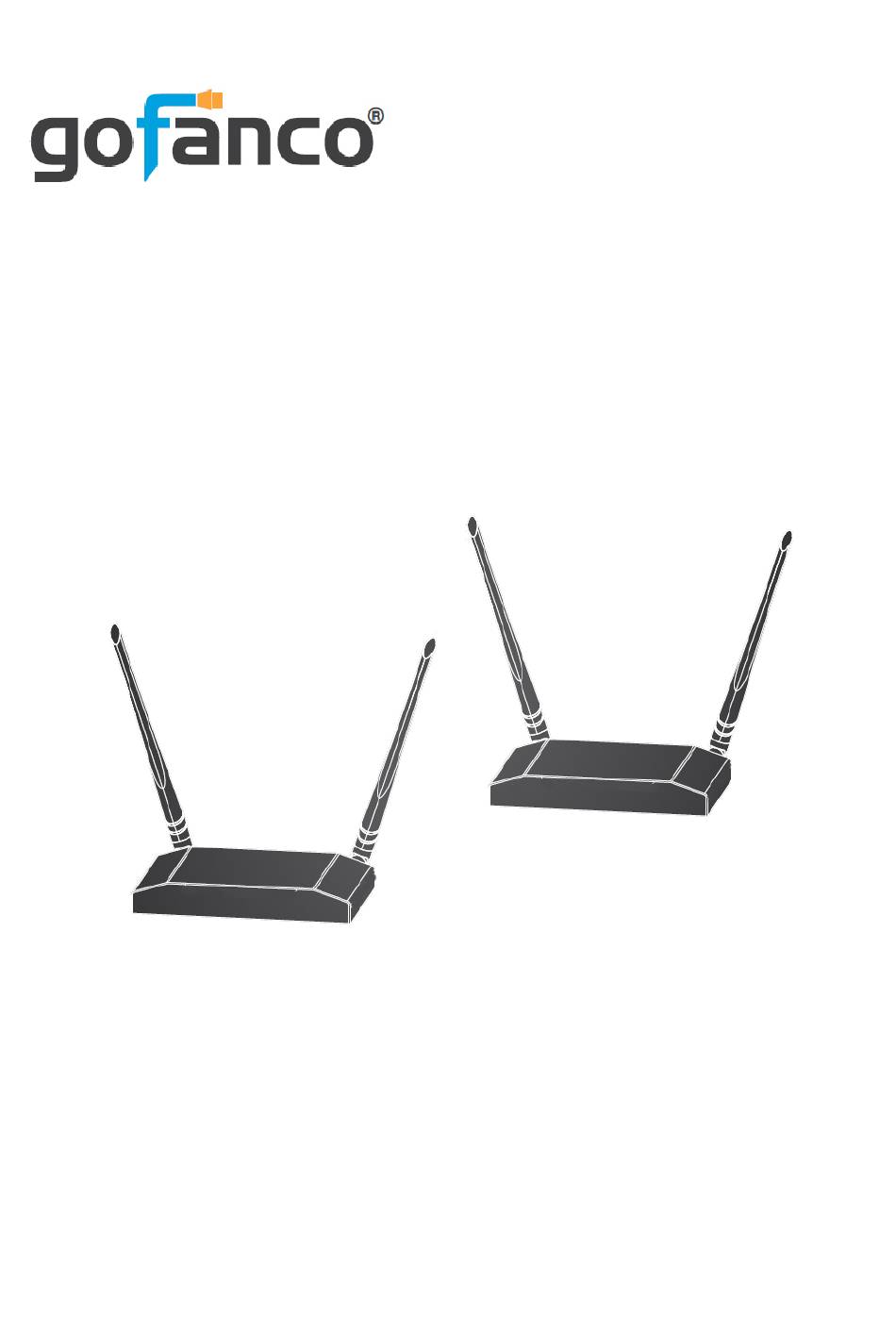

- Page 1 Wireless HDMI Extender Kit 1080p - 150m User's Guide P/N:HDwireless150 G4-0062A...
-
Page 2: Important Safety Notices
Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com. - Page 3 Introduction The Wireless HDMI Extender Kit 1080p - 150m extends HDMI signals wirelessly from a source device to a display device up to 150 meters. It requires no cables between the Transmitter (TX) and Receiver (RX), making the installation easy and clean. Great for homes and offices. Note: Wireless transmission distance will vary due to the environmental conditions.
-
Page 4: Package Contents
Package Contents Transmitter (TX) (1pc) Receiver (RX) (1pc) DC5V/2A Power Adapter (2pcs) IR Blaster Extension IR Receiver Extension User's Guide (1pc) Cable (1pc) Cable (1pc) Antenna (4pcs) Installation Requirements HDMI source device (DVD player, set top box, PC, etc.) HDMI display device (SDTV/Monitor, HDTV/ Monitor, projector, etc.) HDMI cables (not included) - Page 5 Product Layout Figure 1: Transmitter (TX) 1. HDMI Input Connects to the HDMI source device 2. Pairing Button Press and hold down to begin pairing process 3. IR Output Connects to the IR Blaster Extension Cable 4. Reset Button Press the button to reset the Transmitter 5.
-
Page 6: Hardware Installation
Hardware Installation Power off all devices including your HDMI source and HDMI display. Install the included antennas to the TX and RX. Connect your HDMI source device to the Transmitter's HDMI Input connector with an HDMI cable (HDMI cable not included). Optional: Connect the IR Blaster Extension Cable to the Transmitter's IR interface port. - Page 7 Application Diagram Transmitter (TX) Receiver (RX) HDMI source Display IR Receiver IR Blaster Figure 3: Application Diagram Pairing Instructions This kit has been paired at the factory during manufacturing. If the units are not operating properly, please use the steps below for pairing them. Power on the transmitter and receiver units.
- Page 8 Notice • Wireless signals transmitted through walls, glass, brick or other solid objects will cause signal loss and decrease the transmission distance • External wireless signals from microwaves, wireless mice and wireless keyboards will interfere with HDMI signal transmission • Keep the unit in a well ventilated environment to prevent it from overheating •...
-
Page 9: Faq And Troubleshooting
FAQ & Troubleshooting My display shows "Searching TX..." on the screen? 1) Please check if the power adapters of Transmitter (TX) and Receiver (RX) are connected and powered 2) Check the HDMI cables for solid connection. 3) Press the Reset button on both TX and RX. 4) Connect the source device directly to the TV to see if there is a signal. -
Page 10: Specifications
Specifications Item Specification Wireless Frequency 5.1 - 5.8GHz Wireless Latency <180ms 480i@60Hz, 480P@60Hz, 576i@50Hz, Resolution (Input & Output) 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/30/50/60Hz Antenna Gain 5dBi IR Remote Control Supports 20kHz~60kHz IR remote devices Transmission Distance Up to 150 meters Operating Temperature 32°... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
