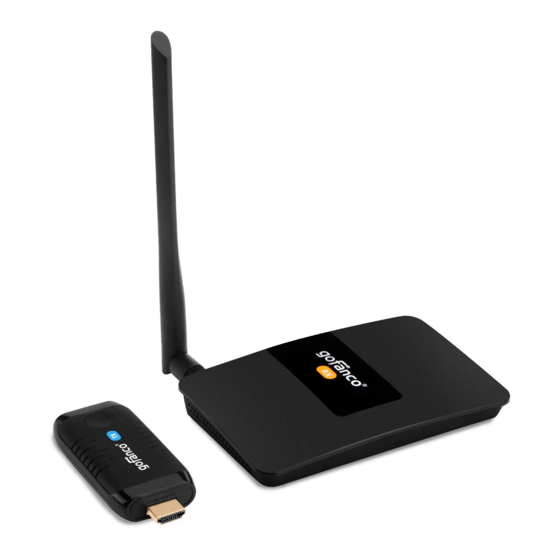

- Page 1 10x1 Wireless HDMI Extender Kit 1080p - 20m User's Guide P/N: HDwireless10x1 G4-0057A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports • Use the included DC5V power adapters only.
-
Page 4: Package Contents
Features • Short distance wireless extension ideal for meeting/conference room applications. Supports up to 66 feet (20m) in 1080p with auto quality adjustment • Supports up to 10 Transmitters to 1 Receiver. Users can switch source devices to transmit by hitting the switch button on the appropriate Transmitter •... -
Page 5: Installation Requirements
Installation Requirements HDMI source device (computer, DVD player, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) Product Layout Figure 1: Transmitter (TX) 1. HDMI Input Connects to the HDMI source device Lights up when HDMI source is detected 2. Connection LED Blinks slowly when wireless signal is linked Blinks fast when wireless signal is transmitting 3. -
Page 6: Hardware Installation
Figure 2: Receiver (RX) 1. Power Adapter Jack Connects to the included power adapter On when powered on 2. Connection LED Blinks when wireless connection is linked 3. Data Transmission LED On when transmitting data, otherwise it's off 4. HDMI Output Connects to the HDMI display device 5. - Page 7 Optional: Connect the included Micro USB cable between the Transmitter's Power Jack and USB power port or USB charger. This connection is needed only if the extender is not working properly. Plug the included power adapter into the Receiver's power jack, then plug the power adapter into a reliable power source.
-
Page 8: One To One Connection
(Computer, DVD, etc.) Display Receiver HDMI Transmitter Cable Power Adapter One to Many Connection Supports up to 10 Transmitters to 1 Receiver. Additional Transmitters (part # HDwireless10x1- TX) sold separately. HDMI Source (Computer, DVD, etc.) Transmitter Display HDMI Source Receiver Power Adapter (Computer, DVD, etc.) - Page 9 FAQ & Solutions The Transmitter and Receiver can't connect to each other: 1) Please check if the Connection LED on Transmitter and Receiver are blinking. 2) Power cycle the transmitter and receiver. 3) Make sure the HDMI cable is firmly connected to the display.
-
Page 10: Specifications
Specifications Item Specification HDMI Compliance HDMI 1.3 HDCP Compliance HDCP 1.2 Wireless Transmission 5.0 GHz Wireless Latency <200ms 480P@60Hz, 576p@50Hz, Resolution 720p@50/60Hz, 1080p@50/60Hz Transmission Distance Up to 66ft (20 meters) Housing Material Plastic Power Adapter (RX only) Output: DC5V/2A Power Consumption TX: <2W / RX: <5W Operating Temperature 32°... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
