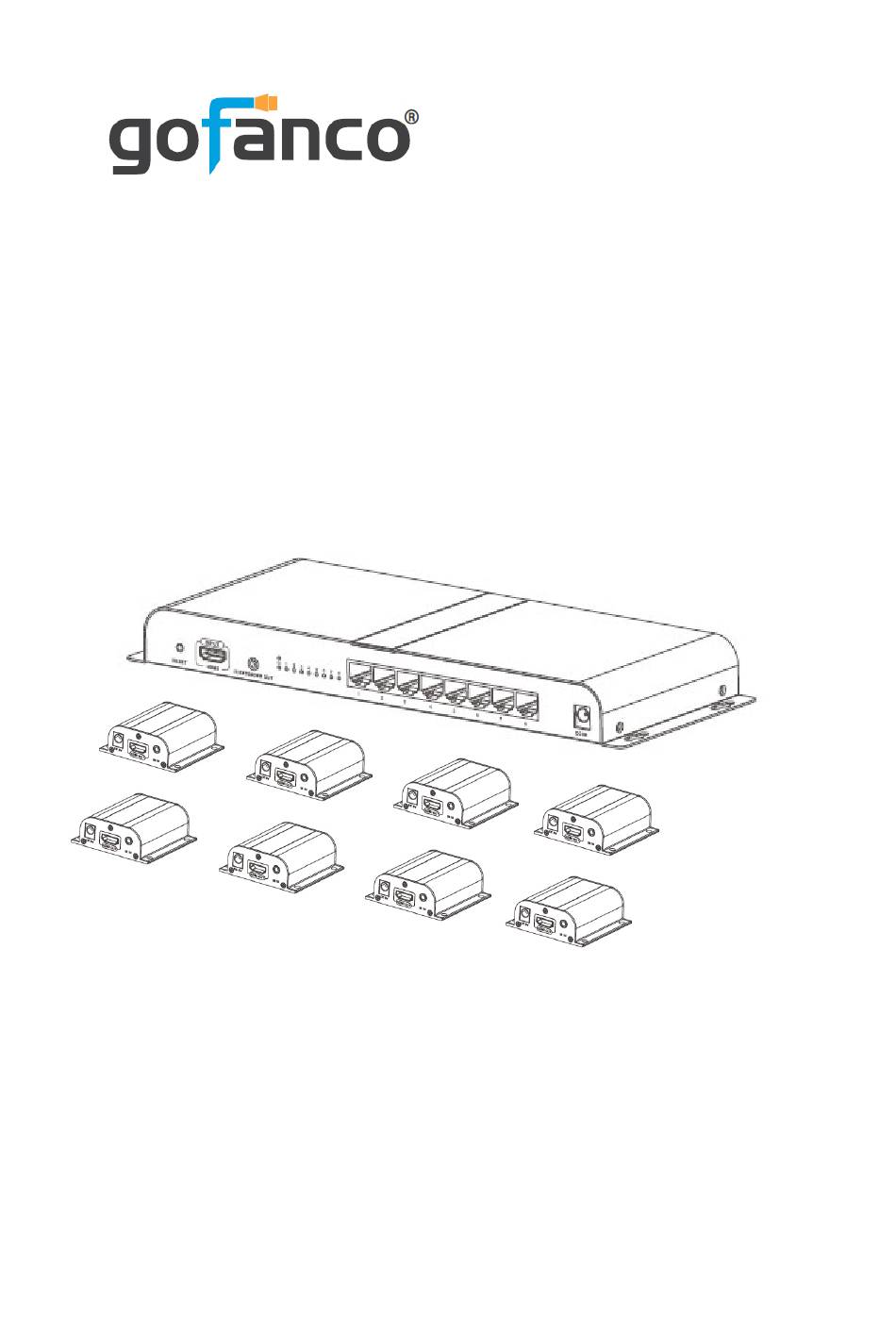

- Page 1 8-Port HDMI HDbitT Extender 1080p - 120m User's Guide P/N:HDbitT8P G4-0074A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Package Contents

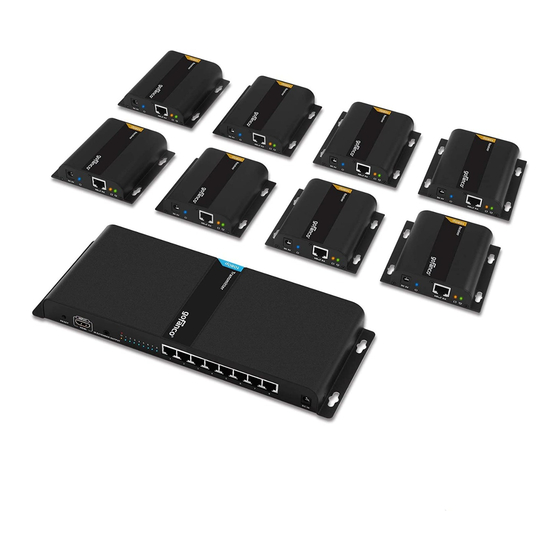

Introduction The 8-Port HDMI HDbitT Extender 1080p - 120m extends high definition 1080p signals up to 394ft (120m) over CAT6 to 8 monitors. Package Contents Transmitter (1pc) Receiver (8pcs) Power Adapter Power Adapter Manual (1pc) 12V/3A (1pc) 5V/1A (8pcs) IR Blaster Cable (1pc) IR Receiver Cable (8pcs) - Page 4 Product Layout Figure 1: Transmitter (TX) Reset: Press to reset the Transmitter HDMI In: Connects to the HDMI source device IR Out: Infrared 3.5mm socket. Plug the IR Blaster Cable here. See instructions on page 7 Data LED: Blinks when data transfer is detected Link LED (x8): Lights up when RJ45 signal is detected RJ45 Out (x8): Connects to the Receiver's RJ45 In using a Cat6 cable...
- Page 5 Figure 3: Receiver (RX) - Input Reset: Press to reset if the HDMI Extender doesn't work properly RJ45 In: Link to the Transmitter's RJ45 Out via Cat6 cable Link LED: Blinks when powered on. On when the Cat6 cable is connected/linked properly between the Transmitter and Receiver Figure 4: Receiver (RX) - HDMI Output Power Jack: Connect the included 5V/1A power...
- Page 6 Installation Requirements HDMI source device (DVD player, set top box, PC, etc.) HDMI display device (SDTV/Monitor, HDTV/ Monitor, projector, etc.) HDMI cables (not included) UTP/STP CAT6/6A/7 cable, following IEEE-568B wiring standard Cat Cable Writing We suggest both RJ45 connectors be wired identically using T568B wiring standard for the best performance and compatibility.
-
Page 7: Hardware Installation
Hardware Installation To achieve optimal performance, Cat6 cable is recommended. Power off all devices including your HDMI source and HDMI display. Connect your HDMI source to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included). Optional: Connect the IR Blaster Cable to the Transmitter's IR Out port. - Page 8 Connection Diagram HDMI Source Power Adapter HDMI cable Transmitter Cat6 cable IR Blaster IR Receiver Receiver (x8) HDMI cable Display (x8)
- Page 9 FAQ & Solutions Q1: No image or audio output on the display? 1. Check if the display is in standby mode. 2. Make sure the display's HDMI port is properly connected to the HDMI cable. 3. Check the Link LED indicator on the Receiver is Q2: Not all displays are receiving a signal.
-
Page 10: Specifications
Specifications Item Specification HDMI signal HDMI 1.3, HDCP 1.4 TX: 1x, 19-pin HDMI, Female Input RX: 1x, RJ45; 1x, IR, 3.5mm socket TX: 8x, RJ45; 1x, IR, 3.5mm socket Output RX: 1x, 19-pin HDMI, Female 480i@60Hz, 480p@60Hz, 576i@50Hz, Resolution 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Transmission distance Up to 394 ft (120m) - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the acutal products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
