- Page 1 Wireless HDMI KVM Extender 1080p - 150m User's Guide P/N: HDWirelessKVM G4-0098B...
-
Page 2: Important Safety Notices

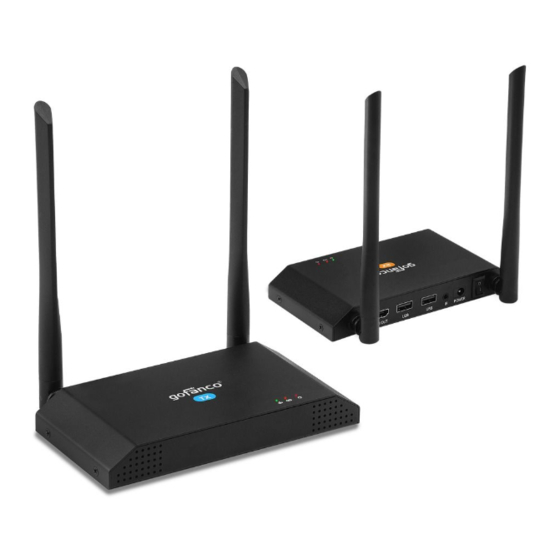

Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com. - Page 3 Introduction The Wireless HDMI KVM Extender 1080p - 150m extends HDMI signals from a source device to a display device with KVM (2 USB ports) extension wirelessly up to 492ft (150m). It requires no cables between the Transmitter (TX) and Receiver (RX), making the installation easy and clean.
-
Page 4: Installation Requirements

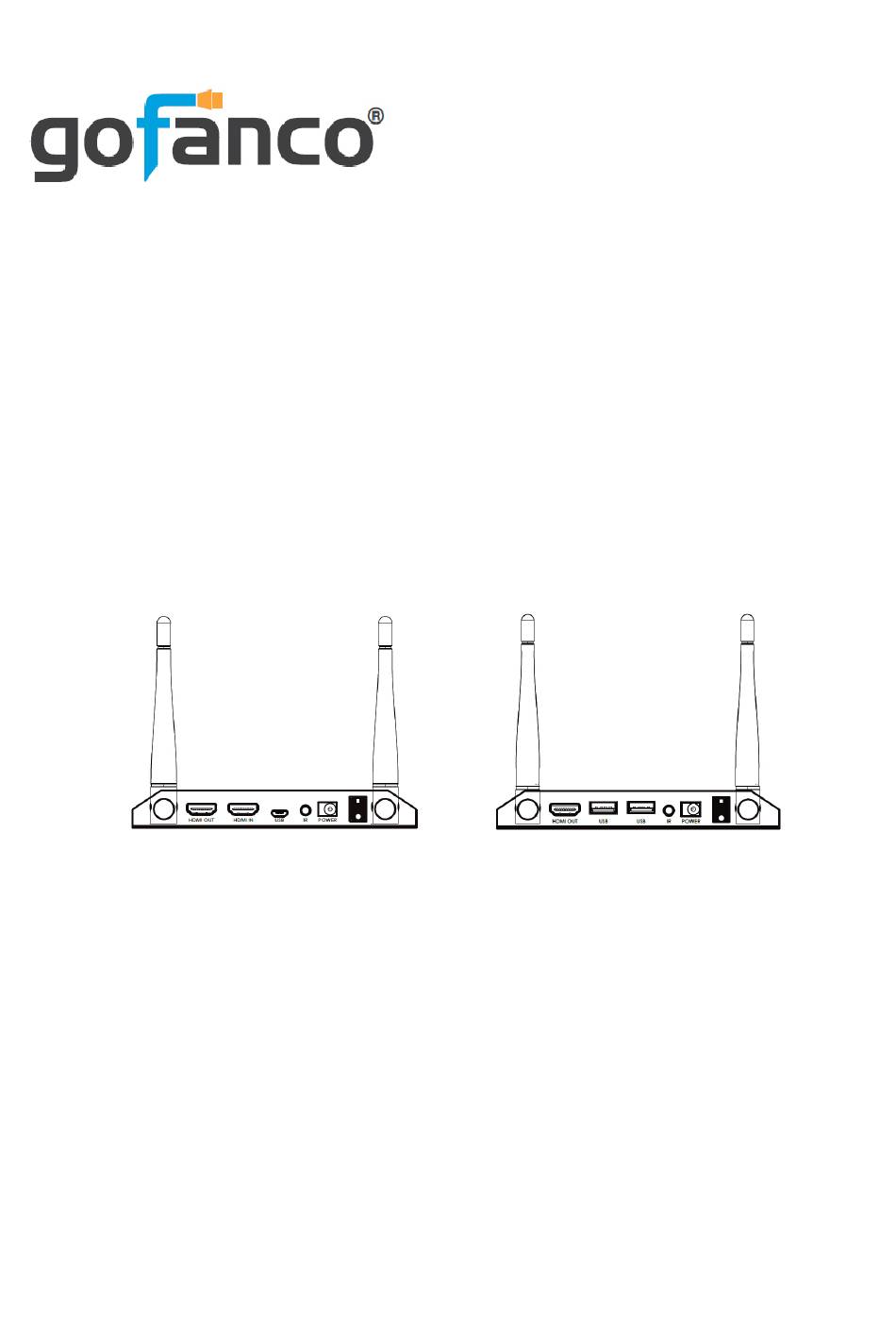

Package Contents • Wireless HDMI KVM Extender 1080p - 150m (1 Transmitter unit & 1 Receiver unit) • IR blaster cable and IR receiver cable (1 each) • Antenna (4pcs) • Power adapter (2pcs) • User guide Installation Requirements HDMI source device (DVD player, set top box, PC, etc.) HDMI display device (SDTV/Monitor, HDTV/ Monitor, projector, etc.) - Page 5 Figure 2: Transmitter Rear Panel (TX) Antenna (x2): Connects to the included antenna Local HDMI Output: Connects to your local HDMI display HDMI Input: Connects to your HDMI source device Micro USB: Connects to your PC's USB port using the included Micro USB to Type-A cable IR Out: Connects to the IR blaster cable Power Jack: Connects to the included power adapter Power Switch: Powers On/ Off the transmitter...
-
Page 6: Hardware Installation
Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Install the included antennas to the TX and RX. Connect your HDMI source device to the Transmitter's HDMI Input connector with an HDMI cable (HDMI cable not included). Optional: Connect your local HDMI display to the Transmitter's Local HDMI Output connector with an HDMI cable (HDMI cable not included). - Page 7 10. Power on your HDMI source device and HDMI display(s). The wireless KVM extender is ready for use. Note: For optimal signal range, install in a clear environment with few obstacles. Wireless signals from other devices, such as microwaves, wireless mice and keyboards, etc.
- Page 8 Notice • Wireless signals transmitted through walls, glass, brick or other solid objects will cause signal loss and decrease the transmission distance • External wireless signals from microwaves, wireless mice and wireless keyboards will interfere with HDMI signal transmission • Keep the unit in a well ventilated environment to prevent it from overheating •...
-
Page 9: Faq And Troubleshooting
FAQ & Troubleshooting The Wireless Connection LED is on, but no video output on the remote display: 1) Check the HDMI source device is powered on. 2) Check the transmitter's HDMI Signal LED is on. 3) Check the HDMI cables for solid connection. Use different HDMI cables if necessary. -
Page 10: Specifications
Specifications Description 1080p60, 1080p50, 1080p24, 720p60, 720p50, Video Output Resolution 576p50, 480p60, 1080i60, 1080i50 1080p60, 1080p50, 1080p24, 720p60, 720p50, Video Input Resolution 576p50, 480p60, 1080i60, 1080i50 HDMI Compatibilty HDMI 1.4 Digital Audio Support 48/44.1 KHz, 16bit, Digital audio compliant Latency 16ms (Tx+Rx, 720p60);... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
