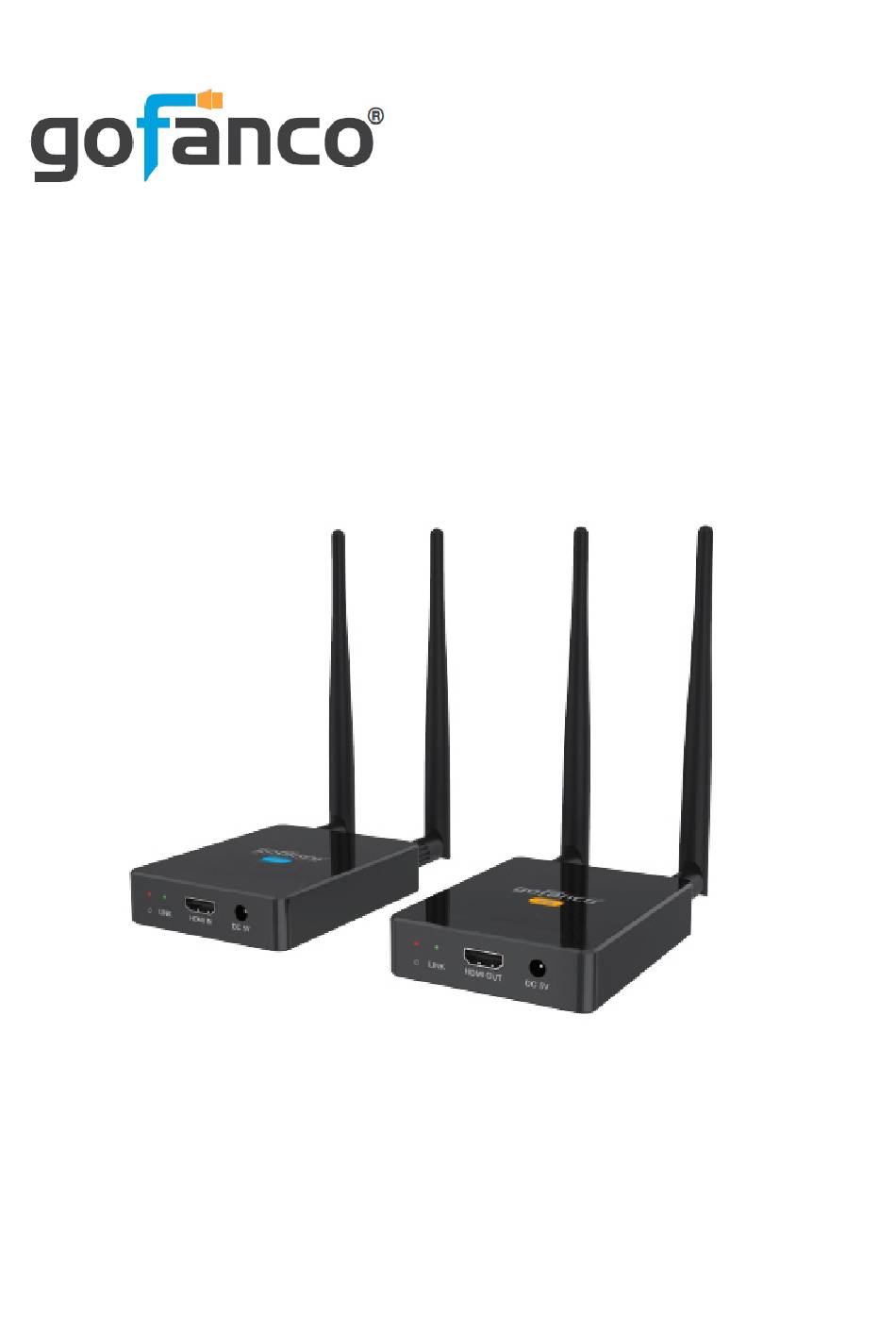

1080p Wireless HDMI
Extender - 100m
User's Guide
P/N:HDwireless100
G4-0107C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDwireless100 and is the answer not in the manual?

Questions and answers

Related Manuals for gofanco HDwireless100

Summary of Contents for gofanco HDwireless100

  • Page 1 1080p Wireless HDMI Extender - 100m User's Guide P/N:HDwireless100 G4-0107C...

  • Page 2: Important Safety Notices

    Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
  • Page 3 Introduction The 1080p Wireless HDMI Extender - 100m extends HDMI signals wirelessly from a source device to a display device up to 100 meters. It requires no cables between the Transmitter (TX) and Receiver (RX), making the installation easy and clean. Great for homes and offices. Note: Wireless transmission distance will vary due to the environmental conditions.

  • Page 4: Installation Requirements

    Package Contents • 1080p Wireless HDMI Extender - 100m (1 TX and 1 • IR blaster cable (1pc) • IR receiver cable (1pc) • Antenna (4pcs) • Power adapter (2pcs) • User guide Installation Requirements HDMI source device (DVD player, set top box, PC, etc.) HDMI display device (SDTV/Monitor, HDTV/ Monitor, projector, etc.)
  • Page 5 Product Layout Figure 1: Transmitter (TX) 1. Power LED On when the Transmitter is powered on Connection status indicator LED. Refer to Link 2. Link LED Status Indicator on page 8 for details 3. HDMI In Connects to your HDMI source device 4.
  • Page 6 Figure 2: Receiver (RX) 1. Power LED On when the Receiver is powered on Connection status indicator LED. Refer to Link 2. Link LED Status Indicator on page 8 for details 3. HDMI Out Connects to your HDMI display 4. Power Jack Connects to the included power adapter 5.

  • Page 7: Hardware Installation

    Hardware Installation Power off all devices including your HDMI source and HDMI display. Install the included antennas to the TX and RX. Pair the TX and RX. See Pairing Instructions on page 8. Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included).

  • Page 8: Pairing Instructions

    Pairing Instructions Power off and disconnect all devices. Connect the TX's HDMI In to the RX's HDMI Out using an HDMI cable (HDMI cable not included). Power on the RX, and wait for the Power LED and Link LED to remain solid on. When both LEDs are on, power on the TX.
  • Page 9 IR Cables Figure 3: IR Cable Specifications...
  • Page 10 Application Diagram The diagram shows the typical devices used with the wireless extender. Transmitter Receiver Figure 4: Application Diagram...
  • Page 11 IR Application Figure 5: IR Application Diagram...
  • Page 12 Notice • Wireless signals transmitted through walls, glass, brick or other solid objects will cause signal loss and decrease the transmission distance • External wireless signals from microwaves, wireless mice and wireless keyboards will interfere with HDMI signal transmission • Keep the unit in a well ventilated environment to prevent it from overheating •...

  • Page 13: Faq And Troubleshooting

    FAQ & Troubleshooting The Wireless Connection LED is on, but no video output on the remote display: 1) Check the HDMI source device is powered on. 2) Check the transmitter's HDMI Signal LED is on. 3) Check the HDMI cables for solid connection. Use different HDMI cables if necessary.

  • Page 14: Specifications

    Specifications Item Description HDCP Compliance HDCP 1.4 Video Bandwidth 6.75 Gbps Input: Up to 1080p @60Hz Video Resolution Output: Up to 1080p @60Hz Color Space RGB, YCbCr YUV 4:4:4 / 4:2:2 Color Depth 8/10/12-bit (1080p @60Hz) Input: LPCM 2.0CH 32KHz/44.1KHz / 48KHz / 88.2KHz / 96KHz HDMI Audio /176.4KHz / 192KHz...
  • Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
  • Page 16 Thank you for choosing gofanco www.gofanco.com...
