Engage the transport lock in order to hold the step assembly in its upright stowed position. See "Adjust

Transport Lock" on page 6.

Position the step assembly in the doorframe so that the strut mounting bracket is flush against the wall

and floor (Fig. 3), with a 1/2" gap along the aluminum doorframe extrusion to provide clearance for the

strut cover.

Secure the brackets to the side wall and to the floor of the unit in all hole locations on the mounting

brackets. Use #10 - 1 1/2" self-tapping screws for laminate floors and #10 - 1 1/2" wood screws for wood

floors. For screws that will penetrate the walls, use #10 self-tapping screws for aluminum wall studs or

#10 wood screws for wood wall studs. The screws must be of appropriate length to penetrate the wall

stud depth by at least 75 percent.

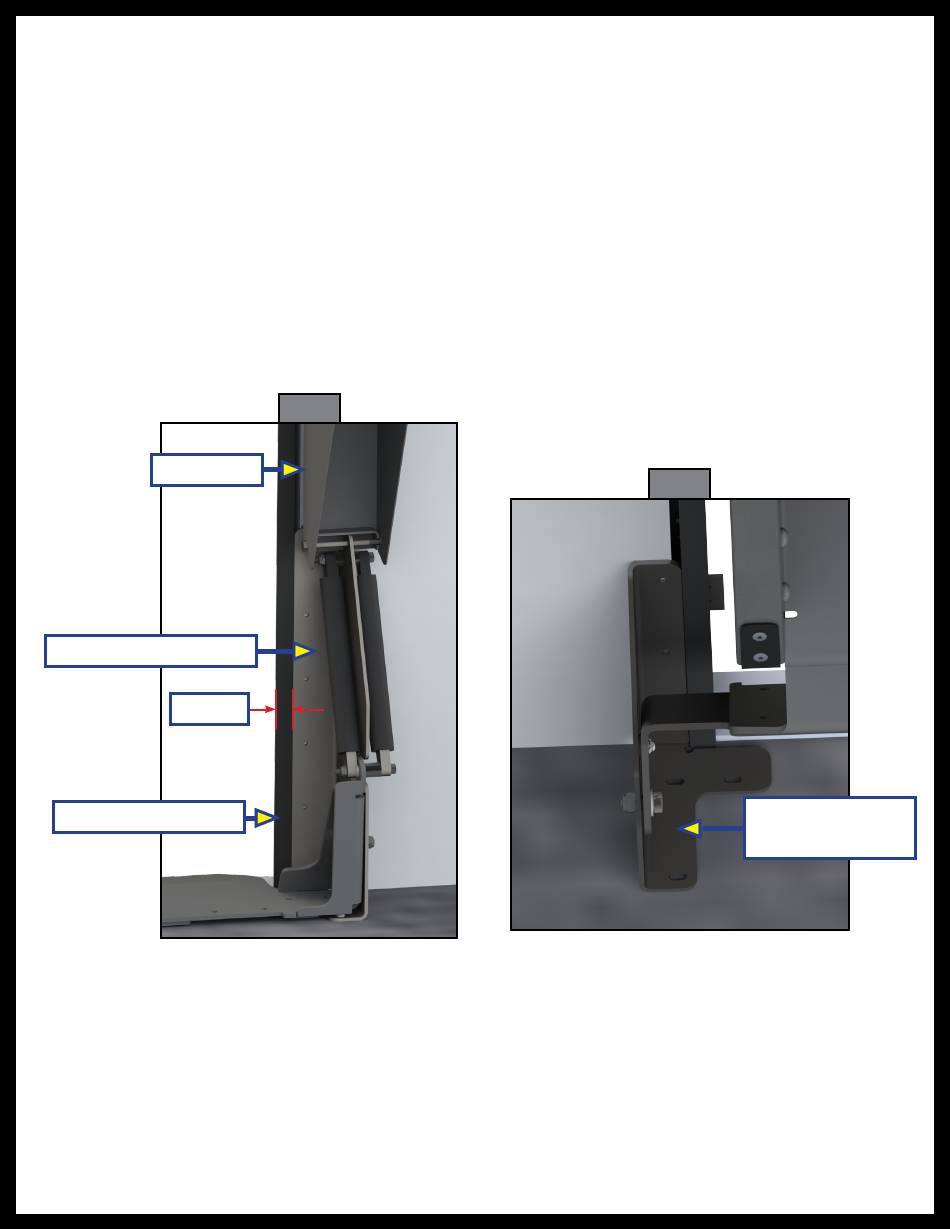

NOTE: There are nine hole locations on the strut mounting bracket (Fig.3) and six hole locations on the

support mounting bracket (Fig. 4).

Strut Cover

Strut Mounting Bracket

1/2" Gap

Doorframe Extrusion

Rev: 07.25.24

Fig. 3

Page 5

Fig. 4

Support Mounting

Bracket

CCD-0008400
