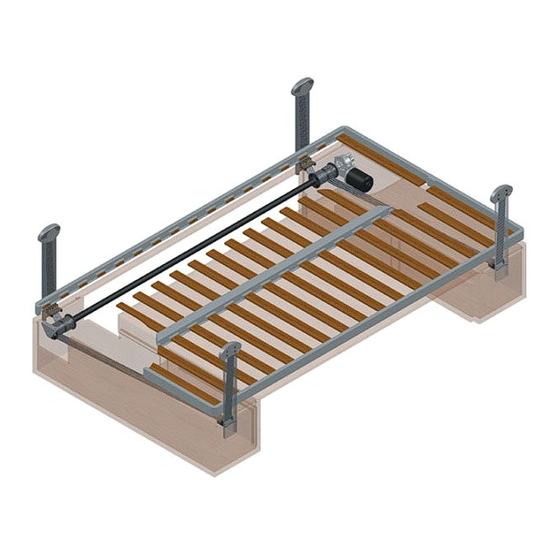

- Page 1 12/15/2022 EUROLOFT BED LIFT ASSEMBLY IDENTIFICATION...
- Page 2 12/15/2022 SECURIT Y AND SAFET Y DEVICES Unauthorized Access The touch pad is equipped with a safety device to protect the system against unauthorized access. Activate by switching the key switch on the panel to the “ON” position. De-activate by switching the key switch to the “OFF”...
-
Page 3: Troubleshooting
12/15/2022 SETTING STOPS Power DC Current Voltage (Minimum – Maximum) 10.8 – DC 14.4 V Standard Motor Rotation Belt shaft rotates in the direction shown by the arrow printed on the black plastic cover. Connect the ORANGE wires to the “DOWN” stop switch of the encoder and connect the YELLOW wires to the “UP”... -
Page 4: Operation
12/15/2022 Two green LED lights are located on the touch pad and they will simultaneously switch on. During movement of the bed, only the LED corresponding to the direction of travel will be turned on. The bed will be moving until you keep pressing the switch and it will stop when: •... -
Page 5: Weight Limitations
12/15/2022 MAINTENANCE As a whole – including bed lifting system, mattress, pillow, blankets, etc. – must not weight more than 60 kg. The bed lifting system can bear a total maximum weight of 400 kg. WEIGHT LIMITATIONS... -
Page 6: Wiring Schematic
12/15/2022 ADJUSTMENTS 1. While preparing the bed after pre-loading the belt by turning it twice around the shaft (and therefore after more or less setting the lowest position for the bed), place the mechanical encoder bracket and insert the threaded sleeve into the shaft. Check the shaft rotation when the bed is descending and consequently in which direction the anti-rotation tab is moving, place the end of stroke button on the “mechanical encoder”... -
Page 7: Technical Support
12/15/2022 Question and Answer If you have questions, please feel free to ask us now. Otherwise, we are available and happy to discuss anything presented with you. TECHNICAL SUPPORT www.Lippert.com 432–LIPPERT customerservice@lci1.com...
