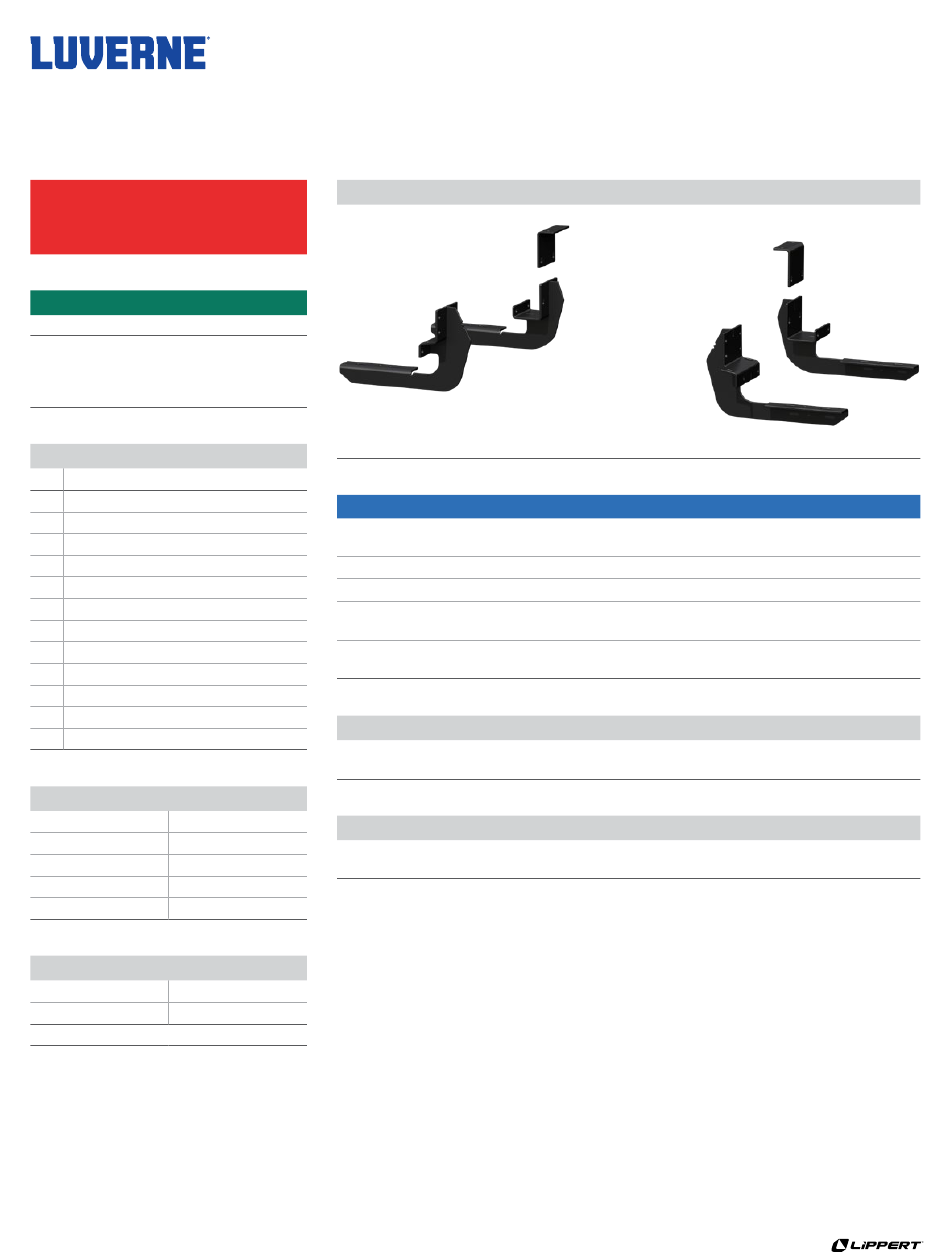

INSTALLATION MANUAL
This is the first of two manuals
required to complete this installation.
The second manual is included with
your side bars / running boards.
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Parts List
Qty Description
2
Mounting bracket
2
AC mounting bracket
2
AC top mounting bracket
2
U-bolt, 3-3/4"
12
Lock washer, 5/16"
8
Thread-cutting bolt, 5/16"
14
Washer, 5/16"
8
Flange nut, M8
8
Hex bolt, M8
8
Clip nut, M8
4
Spacer
4
Bolt retainer
Tools Required
Socket, 1/2"
Ratchet
Wrench, 1/2"
Drill
Flathead screwdriver Drill bit, 3/8"
Marker
Drill bit, 3/32"
Putty knife
Drill bit, 19/64"
Torque Specifications
M8 bolt
20 ft-lbs.
5/16" bolt
20 ft-lbs.
Use above torque setting unless otherwise noted
LUVERNETRUCK.COM

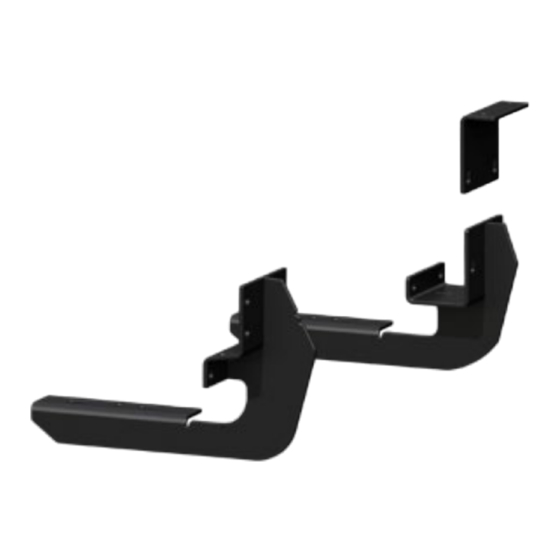

Product Photo
NOTICE
Visit www.luvernetruck.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of your product should be performed
to ensure all hardware and / or components remain secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
LUVERNE stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
PRODUCT SUPPORT: 877.287.8634
401720-INS-RA
02/22/2022
Front
ECN9236
PAGE 1
401720
Rear

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUVERNE 401720 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lippert LUVERNE 401720

  • Page 1 INSTALLATION MANUAL 401720 This is the first of two manuals Product Photo required to complete this installation. The second manual is included with your side bars / running boards. Rear Level of Difficulty Easy Installation difficulty levels are based on time and effort involved and may vary depending on the installer level of expertise, condition of the vehicle and proper tools and equipment.
  • Page 2 Step 1 Note: For vans without factory studs skip to Step 1B. Starting on the driver side, locate the front bracket mounting location. For vans with factory studs, slide a 1/4" spacer on each of the studs. Place the front bracket on the studs and secure with two M8 flange nuts on the studs and two 5/16"...
  • Page 3 Step 2 Assemble the rear AC bracket using two M8 bolts, two 5/16" washers and two M8 nuts. On the driver side, locate the second bracket mounting location. (See figure 2 on the last page of the manual). Step 3 Hold the assembled AC bracket along the pinch seam and mark each of the four hole locations.
  • Page 4 Step 6 Repeat Steps 1 through 5 on the passenger side of the vehicle. Tighten all hardware. Note: To complete the installation, refer to the manual included with your running boards / side steps. Figure 1 Passenger side shown 8-3/4" 42-1/2"...
