Summary of Contents for Lippert HAPPIJAC Bed Lift

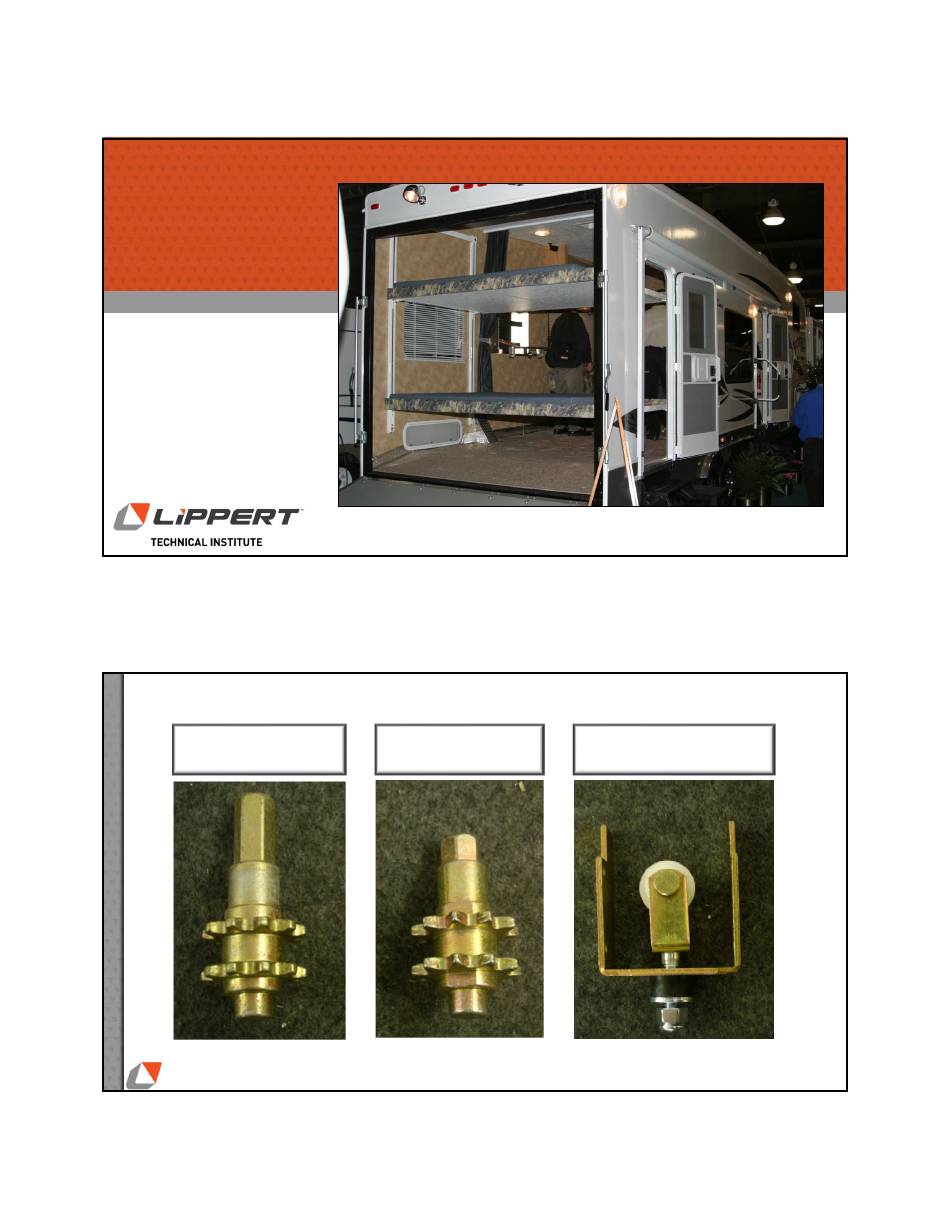

- Page 1 12/15/2022 HAPPIJAC BED LIFT Drive Sprocket Drive Sprocket Pull Support Assembly Motor Non-Motor...
- Page 2 12/15/2022 Control Module Control Switch Switchboard Motor with Brake Brake Only Modified Microswitch Microswitch Lower 3 Pin Upper 2 Pin Power Pigtail Switch Cord...
- Page 3 12/15/2022 Bed Rail Hardware Bed Rail Hardware Wide Trolley Tab with Spacers Bunk Pins Motor Extension Bunk Stops Connecting Shaft Bed Rail Top Rail...
-
Page 4: Operation
12/15/2022 OPERATION The bed(s) is/are operated from the control switch. Pressing and holding the switch in the UP position moves the bed(s) upward. Pressing and holding the switch in the DOWN position, moves the bed(s) downward. Limit switches are used to stop the bed(s) at their maximum travel range. - Page 5 12/15/2022 BRAKE LEVER OPERATION SOLENOID BRAKE RELEASE ON HAPPIJAC BED LIFT MOTOR THE LEVER MUST BE IN THE “ON” POSITION AT ALL TIMES. TURN TO “OFF” POSITION ONLY IF MANUALLY RAISING/LOWERING, THEN IMMEDIATELY TURN BACK TO “ON” TO PREVENT BEDS FROM DRIFTING DOWN.
-
Page 6: Troubleshooting
12/15/2022 BEDS ARE STUCK IN THE FULL UP OR DOWN POSITION Scenario 1: This is the first time the dealer has tried to move the beds. The problem is most likely a wiring error from the trailer manufacturer. What the trailer manufacturers sometimes do is wire +12 and ground backward, then rather than fixing that problem, they turn the wall switch over to get the beds to run the right direction. - Page 7 12/15/2022 BEDS ARE NOT EVEN SIDE TO SIDE Most likely, the timing (connecting) shaft installed incorrectly. To correct this, the load must first be removed from mechanism. • Unpin and removing the lower bed platform from the mechanism. • Loosen the set screw in the connecting shaft at the motor end. •...
-
Page 8: Manual Override
12/15/2022 MANUAL OVERRIDE Cranking Point To manually raise the beds: • Unplug the motor. • Release the brake. • Turn hex shaft using a ½” ratchet wrench. • Re-apply brake at desired bed height. • Reconnect motor plug. To manually lower the beds: •... - Page 9 12/15/2022 MOTOR AND BRAKE TEST The Motor and brake assembly is best tested by jumping 12-14 VDC directly to the motor. • Position the bed(s) well out of the upper and lower limit switches if possible. If not, exercise extreme caution during the following steps to avoid damage to the system.
-
Page 10: Maintenance
12/15/2022 ADJUSTABLE TIMER INSTALLATION Hex Connecting Shaft Bed Lift Bed Lift Channel Channel Motor Adjustable Timer Top Down View After attaching motor to bed-lift and setting bed trolleys level side to side: • Insert the Hex Connecting Shaft (with E-clip) into the motor with the short end toward the motor. •... - Page 11 12/15/2022 SOFA BACK REST LOCKS INSTALLATION • Place flat washer on bolt then put the bolt through tin oval slot in lock plate. Right side installation shown. Bolt will come through from opposite side for left side installation. • Install the lock plate (notch up) inside of the sofa hinge bracket as shown, with the Outer Most Hole in bolt coming from the inside out.
- Page 12 12/15/2022 VERTICAL C-CHANNEL COMMUNICATIONS CABLE CONFIGURATION...
-
Page 13: Technical Support
12/15/2022 Question and Answer If you have questions, please feel free to ask us now. Otherwise, we are available and happy to discuss anything presented with you. TECHNICAL SUPPORT www.Lippert.com 432–LIPPERT customerservice@lci1.com...
