Summary of Contents for Lippert SolidStep 4.0
- Page 1 SolidStep ® OWNER'S MANUAL...
- Page 2 Failure to correctly follow the provided instructions may result in death, serious personal injury, severe product and/or property damage, including voiding of the Lippert limited warranty. The "WARNING" symbol above is a sign that a procedure has a safety risk involved and may cause death or serious personal injury if not performed safely and within the parameters set forth in this manual.
- Page 3 The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury and/or product or property damage if not safely adhered to and within the parameters set forth in this manual No repairs should be attempted by anyone other than a qualified professional. The deployment and retraction of the step assembly can cause injury if proper precautions are not taken.

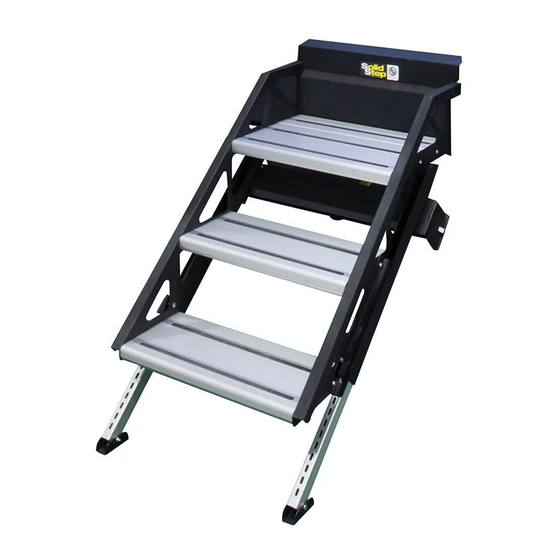

- Page 4 From the stowed position (Fig. 1), disengage the transport lock (Fig. 1A) by pulling the transport lock knob to the right. Firmly grasp and pull out the vertically stored SolidStep 4.0 and rest it firmly on the ground. Adjust leg extensions as needed.
- Page 5 Retract leg extensions. See Leg Extension Adjustment section. Lift up SolidStep 4.0 to its stored position (Fig. 1) until the transport locks engage and click into place. Make sure the latches (Figs. 6A and 7A) are resting against the door frame.
- Page 6 Attempting to engage the transport lock without proper adjustment may cause damage to the door frame or step assembly. To verify the transport lock adjustment is working properly, the SolidStep 4.0 should be in the stored position (Fig. 5). Make sure transport latch flanges (Figs. 5A, 6A, and 7A) are resting against the door frame.
- Page 7 Notes Page 7 Rev: 10.04.23 CCD-0007740...
- Page 8 Lippert representative has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of Lippert. Revised editions are available for free download from lippert.com.
