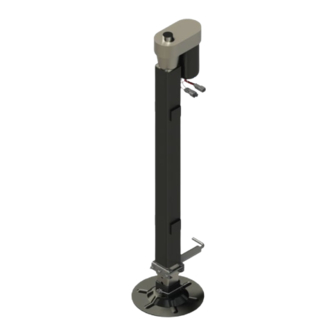

- Page 1 Ground Control ® 5th Wheel Landing Gear w/Unit Prepped for Full Automatic Leveling OWNER'S MANUAL...
-
Page 2: Table Of Contents
6 -point leveling system. The system is prepped for the Ground Control 3.0 Leveling System and can be easily upgraded. Look for the QR code located on the unit located near the compartment where the switch panel is or use the link, https://store.lci1.com/ground-control-30-leveling-kit-for-prepped-units-2021106810.html... -
Page 3: Operation
The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury and/or product or property damage if not safely adhered to and within the parameters set forth in this manual. Always wear eye protection when performing service, maintenance or installation procedures. -
Page 4: Troubleshooting
Troubleshooting What is happening? Why? What should be done? Inner legs were Connect to tow vehicle, retract jacks, extend Unable to level trailer. extended while trailer inner leg making sure to allow room to level was above level. trailer once tow vehicle is removed Test battery voltage under load. -
Page 5: Preventive Maintenance
Bottom of Jack Motor Override: 5/16 Tools needed: ” drive ratchet and extension, ” socket Find the port on the bottom of the jack motor (Fig. 6A). Remove the rubber plug (Fig. 7A). 5/16 Insert the ” socket into the port (Fig. 8). Turn override until the jack extends or retracts to desired position. -
Page 6: Wiring Diagram
Wiring Diagram Landing Gear 2 Wire Harness Connections Passenger Side Driver's Side Landing Gear Landing Gear Landing Gear Connection Landing Gear Connection for Future Leveling Installation for Future Leveling Installation (not used at this time) (not used at this time) Landing Landing Gear Harness... -
Page 7: Notes
Notes Page 7 Rev: 09.23.21 CCD-0004396... - Page 8 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (LCI). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
