Universal jumper setting

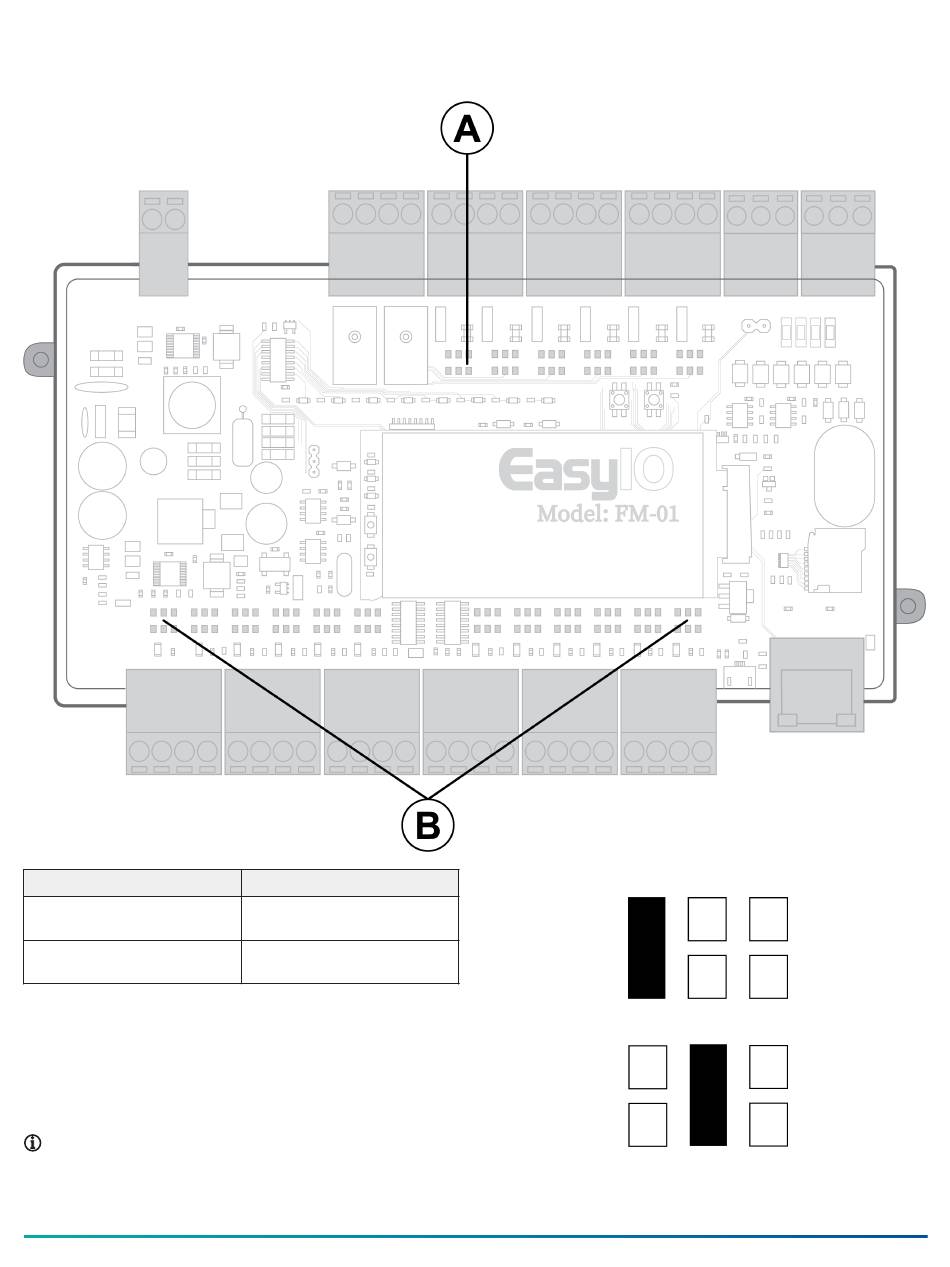

Figure 20: Universal jumpers
Callout
A
B
Universal output jumper configuration
The FS-20 controller supports current, voltage, and digital
field devices. For current mode, position the jumper on
the two left pins. For voltage mode, position the jumper
on the two center pins. For digital mode, position the
jumper on the two right pins.
Note: You can configure each universal output
individually.
Component
Universal output jumper
configuration
Universal input jumper
configuration
Figure 21: Current mode
Figure 22: Voltage mode
