Overview
The FS-32 is a high-performance network controller with
a 1.2 GHz quad core processor, 1 GB RAM, 8 GB flash
memory, HTML5 graphics, a suite of applications and kits,
and multifunctional adapter widgets.
Use this guide to complete the following tasks:
•
Understand the controller components.
•
Mount the controller on a DIN rail or enclosure base
plate.
•
View a wiring diagram of the controller in a system.
•
Connect to the controller with a LAN connection.

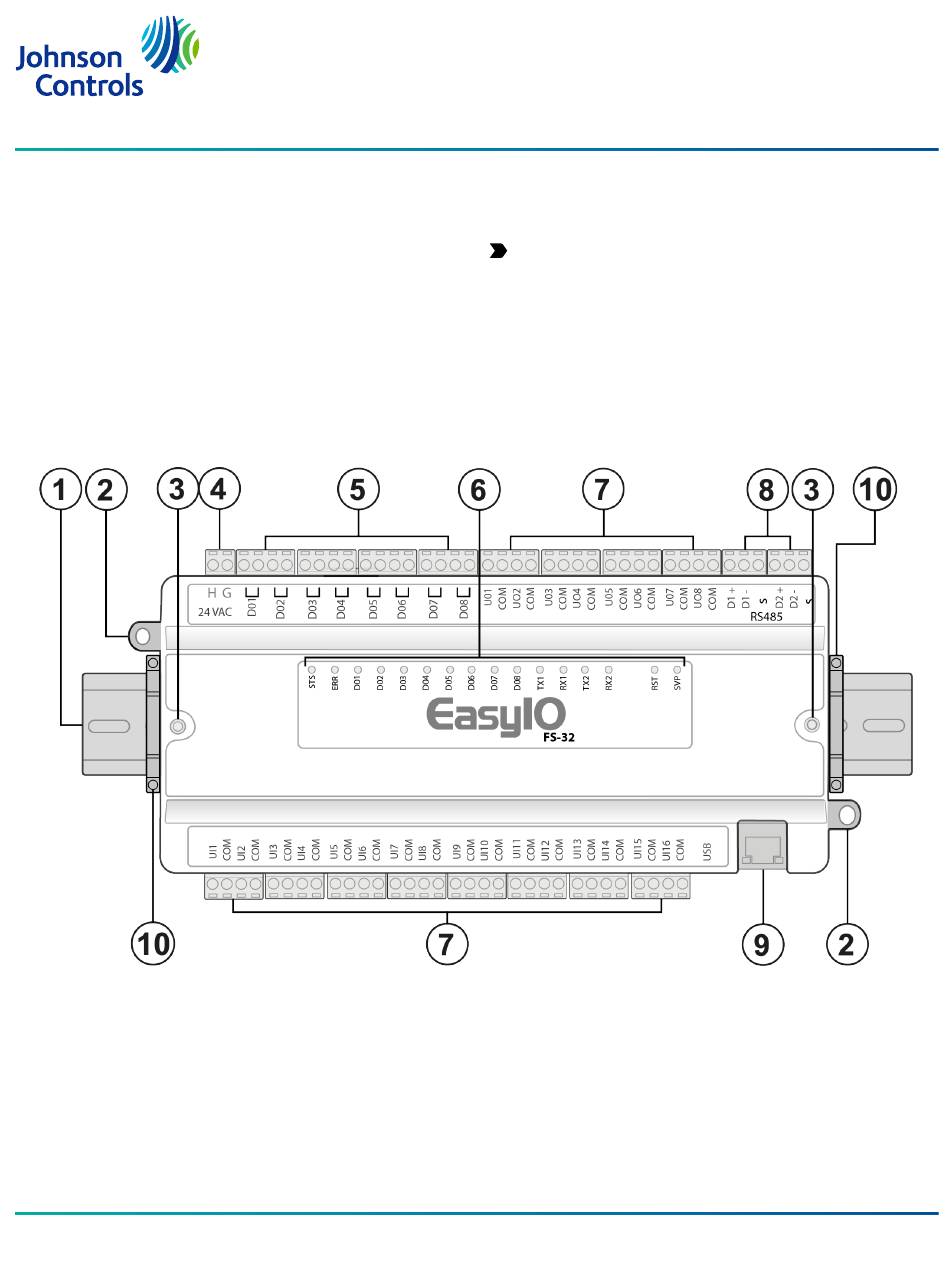

Figure 1: FS-32 front view
FS-32 Quick Start Guide
•
Connect to the controller with the Controller
Programming Tools (CPT) application.
•
Connect to the controller's web server dashboard with
CPT Graphics.
Important: Use the FS-32 controller as an operating
control only. Where failure or malfunction of the
FS-32 could lead to personal injury or property
damage to the controlled equipment or other
property, additional precautions must be designed
into the control system. Incorporate and maintain
other devices, such as supervisory or alarm systems
or safety or limit controls, intended to warn of or
protect against failure or malfunction of the FS-32.
LIT-12013977
Version 1.0
2023-04-25
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls EasyIO FS Series
Summary of Contents for Johnson Controls EasyIO FS Series
- Page 1 FS-32 Quick Start Guide LIT-12013977 Version 1.0 2023-04-25 Overview • Connect to the controller with the Controller Programming Tools (CPT) application. The FS-32 is a high-performance network controller with • Connect to the controller's web server dashboard with a 1.2 GHz quad core processor, 1 GB RAM, 8 GB flash CPT Graphics.
- Page 2 Transmitting and receiving communication indicator for RS-485 Port 2 (D2+, D2-) Reset button. For more information about how to reset the controller, refer to EasyIO FS Series User Reference. Service button Universal output (UO) and COM terminals RS-485 serial port terminals...
-
Page 3: Mounting Guidelines
FS-32 dimensions Figure 3: FS-32 dimensions, mm (in.) Parts included • One FS-32 controller with removable terminal blocks • One pack sheet Required tools and parts One small flathead screwdriver to secure wires to terminal blocks. Mounting guidelines The following section lists location considerations, how to mount the controller on a DIN rail and how to mount the controller on an enclosure base plate. -
Page 4: Removing The Controller Cover
Figure 7: Closing the mounting clips (rear view) Figure 9: Removing the cover Optional: For added security, use DIN rail end clips. For the DIN rail end clips locations, see Figure Mounting the controller to an enclosure base plate About this task: If a DIN rail mount is not practical, the controller features two mounting holes to screw mount the controller to an enclosure base plate. - Page 5 Input, output, and 24 VAC Class CAUTION 2 transformer power input wiring diagrams Do not exceed controller electrical ratings, because this can result in permanent damage to the controller and void warranties. WARNING Risk of electric shock Important Disconnect the power supply before you make electrical connections.
- Page 6 Figure 10: FS-32 wiring guide Callout Description Power input 24 VAC or 24 VDC Current controlled VSD Voltage-controlled actuator Bus device Note: Install a 120 ohm resistor in parallel to the RS-485 terminal if the controller is at the end of a daisy chain. Current transmitter 0 mA to 20 mA or 4 mA to 20 mA Voltage transmitter...
- Page 7 Figure 11: 24 VAC Class 2 transformer power input Figure 13: DO wiring Callout Description 20 AWG copper stranded wire Controller H terminal Callout Description G terminal Field device 20 AWG copper stranded twisted wire up to Figure 12: Analog output wiring 100 m (328 ft) in length DO terminal COM terminal...
- Page 8 Figure 15: UI current mode wiring in loop Callout Description Field device 22 AWG copper stranded twisted wire up to 100 m in length Controller UI terminal COM terminal Dry contact Normally open (NO) or normally closed (NC) as required Callout Description Power supply terminal wiring...
- Page 9 • Use shielded cables for input and output cables Figure 19: RS-485 wiring that are exposed to high electromagnetic or radio frequency noise. • Cable runs over 30 m or 100 ft require an offset in the input and output software setup. RS-485 bus terminals Wire the RS-485 terminals in a daisy-chain configuration.
- Page 10 Universal jumper setting Figure 20: Universal jumpers Figure 21: Current mode Callout Component Universal output jumper configuration Universal input jumper configuration Universal output jumper configuration The FS-32 controller supports current, voltage, and digital Figure 22: Voltage mode field devices. For current mode, position the jumper on the two left pins.
- Page 11 Figure 23: Digital mode Note: Use the same subnet mask and gateway as the controller. For the IP address, enter the same IP address as the controller, but change the last octet to a unique number. Use a high number that is less than 255 to avoid using an IP address that is already in use.
- Page 12 Interfacing with a controller's web d. In the IPv4 address, Subnet Mask, and Router fields, set the IP address, subnet mask, default server gateway, then click OK. About this task: From the terminal, complete the following steps: To interface with a controller's web server, complete the a.
- Page 13 What to do next: Note: By default, there is no password. To For more information about CPT, Refer to EasyIO CPT User increase security, when you log on, complete Guide (LIT-12013978). the steps outlined in Creating a new CPT admin password for a controller in EasyIO Hardening Guide (LIT-12013986).
-
Page 14: Troubleshooting
Table 4: Micro SD card specifications Specification Remark Class Class 4 Class 10 Troubleshooting Table 5: FS troubleshooting Problem Cause Solution The controller does not • The transformer shorted. Ensure that the polarity of ~24 V COM, +15 V COM, and SA turn on due to one of the •... -
Page 15: Technical Specifications
Technical specifications Table 6: FS-32 UL input, output, and communication ratings Description Specification Terminal Power supply • 24 VAC, plus or minus 5% H and G • 24 VDC, plus 20% or minus 15% • Maximum: 30 VAC 12 VA, Class 2 Universal Voltage 0 VDC to 10 VDC, Class 2... -
Page 16: Contact Information
This product is covered by a limited warranty, details of which can be found at www.johnsoncontrols.com/ buildingswarranty. Patents Patents: https://jcipat.com © 2023 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. www.johnsoncontrols.com...
