P30 and S30 Low Voltage VSD

Appendix D: VSD Modbus/TCP Adapter Status Indicator

Note
Appendix D references content from the following Rockwell Automation document:
20COMM-UM014C 20-COMM-M Modbus/TCP Adapter User Manual
•

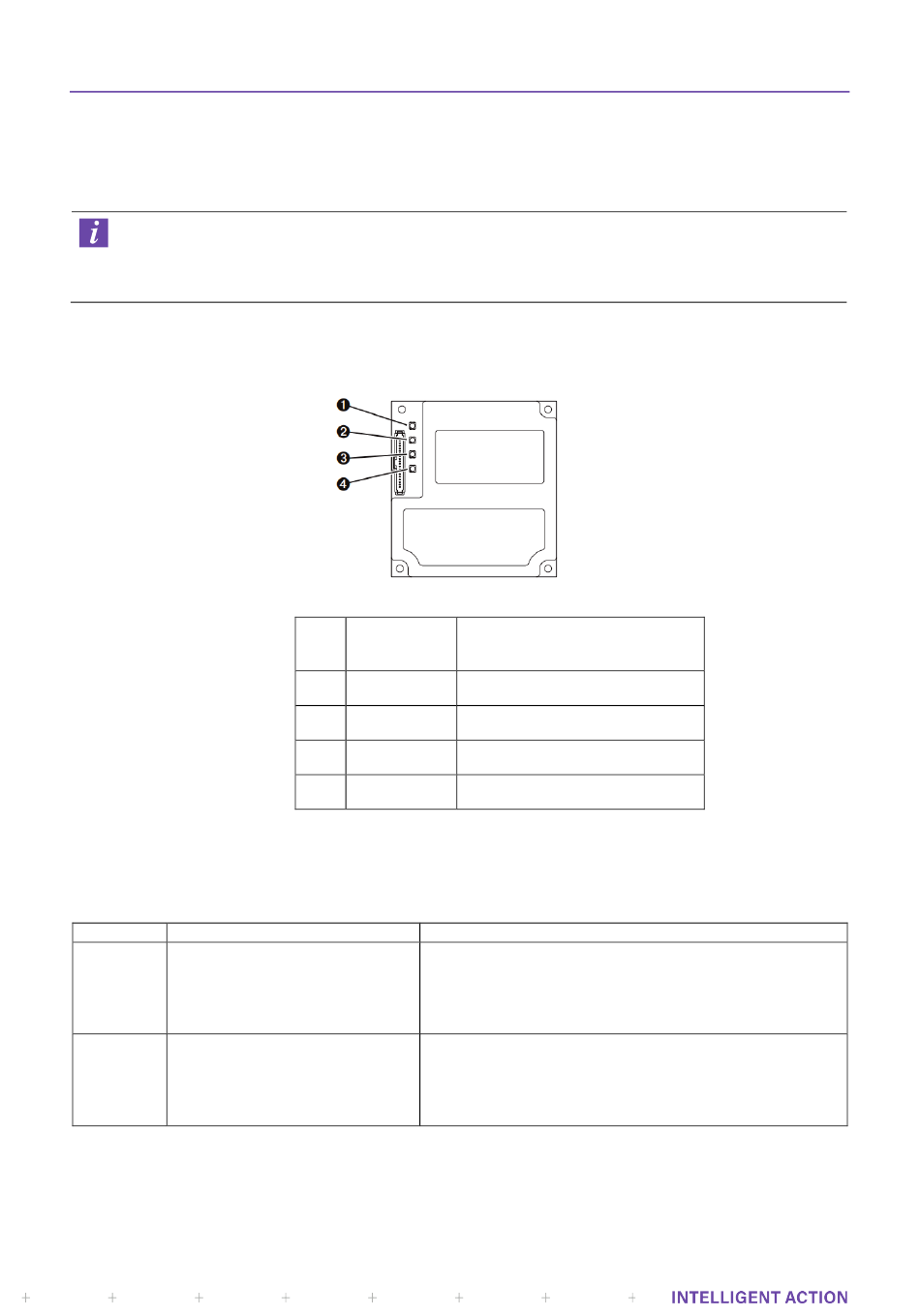

The adapter has four status indicators. They can be viewed on the adapter.
D.1 PORT STATUS INDICATOR
This red/green bicolor LED indicates the status of the adapter's connection to the drive as shown in the table
below.
Status Cause
Off The adapter is not powered or is
not properly connected to the
drive.
Flashing The adapter is not receiving a
Red ping message from the drive.
Appendix D:VSD Modbus/TCP Adapter Status Indicator
Status
Item
Indicator
1
PORT
2
MOD
3
NET A Modbus/TCP Connection Status
4 NET B Modbus/TCP Transmit Status
Corrective Action
•
Securely connect the adapter to the drive using the
Internal Interface (ribbon) cable.
•
Apply power to the drive (or adapter if mounted in a DPI
External Comms Kit).
•
Verify that cables are securely connected and not
damaged. Replace cables if necessary.
•
Cycle power to the drive (or adapter if mounted in a DPI
External Comms Kit).
Description
DPI Connection Status
Adapter Status
