P30 and S30 Low Voltage VSD
Section 5:Wiring

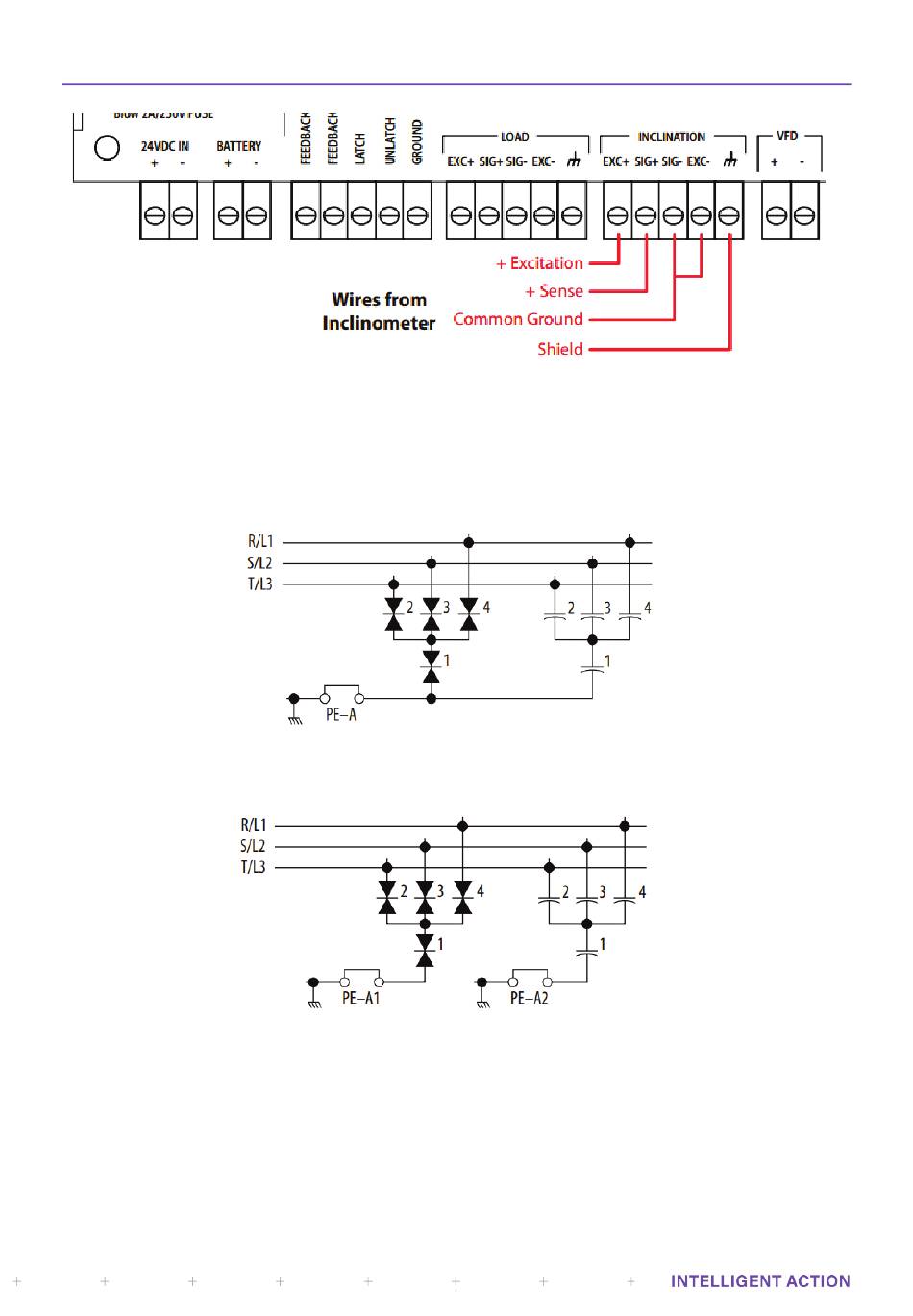

Figure 5-4: Inclinometer Wiring Connections to Molex Terminal
5.8 POWER JUMPER CONFIGURATION
The drives contain protective MOVs and common mode capacitors that are referenced to ground. To guard
against drive damage and/or operation problems, these devices must be properly configured.
Figure 5-5: MOV and AC EMI Capacitor Phase to Ground (Frames 1...7)
Figure 5-6: MOV and AC EMI Capacitor Phase to Ground (Frames 8...10) AC Input Only
30
