P30 and S30 Low Voltage VSD

Section 6: Operator Interface

For the operator interface of the motor controller, refer to the respective controller manual:
INSTRUCT PCP Intelligent Controller Hardware Installation Manual (LCS-ENG-M0017)
•
• INSTRUCT PCP Intelligent Controller Configuration Manual (LCS-ENG-M0018)
• INSTRUCT SRP Intelligent Controller User Manual (LCS-ENG-M0019)
Note
Section 6 references content from the following Rockwell Automation document:
20HIM-UM001E PowerFlex 20-HIM-A6 and 20-HIM-C65 HIM (Human Interface Module) User
•
Manual

6.1 VSD HIM

Human Interface Module (HIM) provides a communication interface to configure and monitor the VSD and its
connected peripherals.
The keypad consists of soft keys, navigation and number keys, and single function keys, which are
described in the respective subsections that follow.

6.1.1 SOFT KEYS

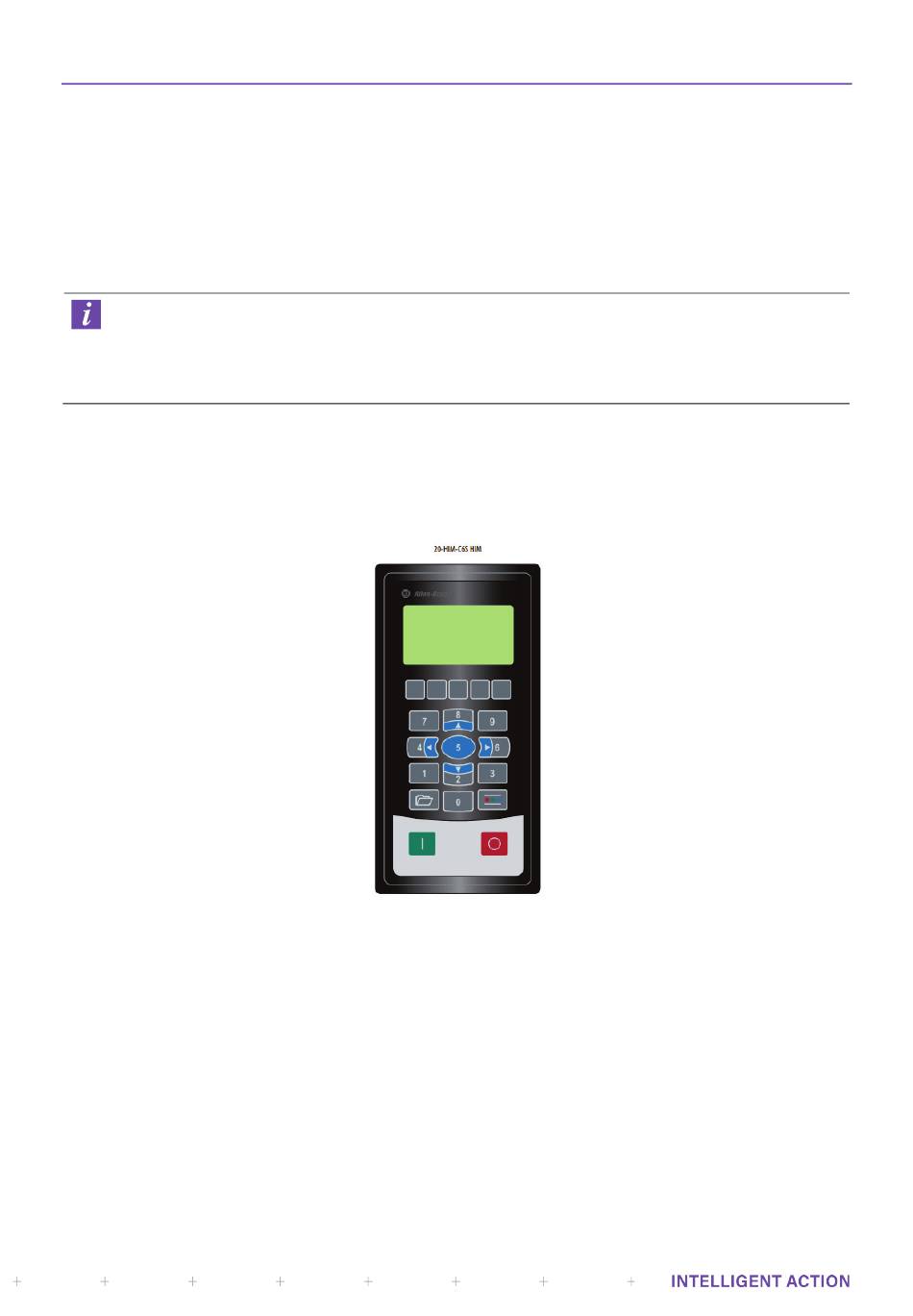

The soft keys on the HIM are located at the top of the keypad and highlighted below. Depending on the
screen being displayed or the data entry mode being used, a soft key name and its function changes. When
a dynamic soft key (up to a maximum of five keys) is active, its present function and corresponding Soft Key
Label are shown at the bottom of the HIM screen.
