Vsd Dual-Port Ethernet/Ip Option Module (20-750-Enetr) - Sensia INSTRUCT P30 INTELLIGENT VSD Installation, Operation & Maintenance Manual

P30 and S30 Low Voltage VSD

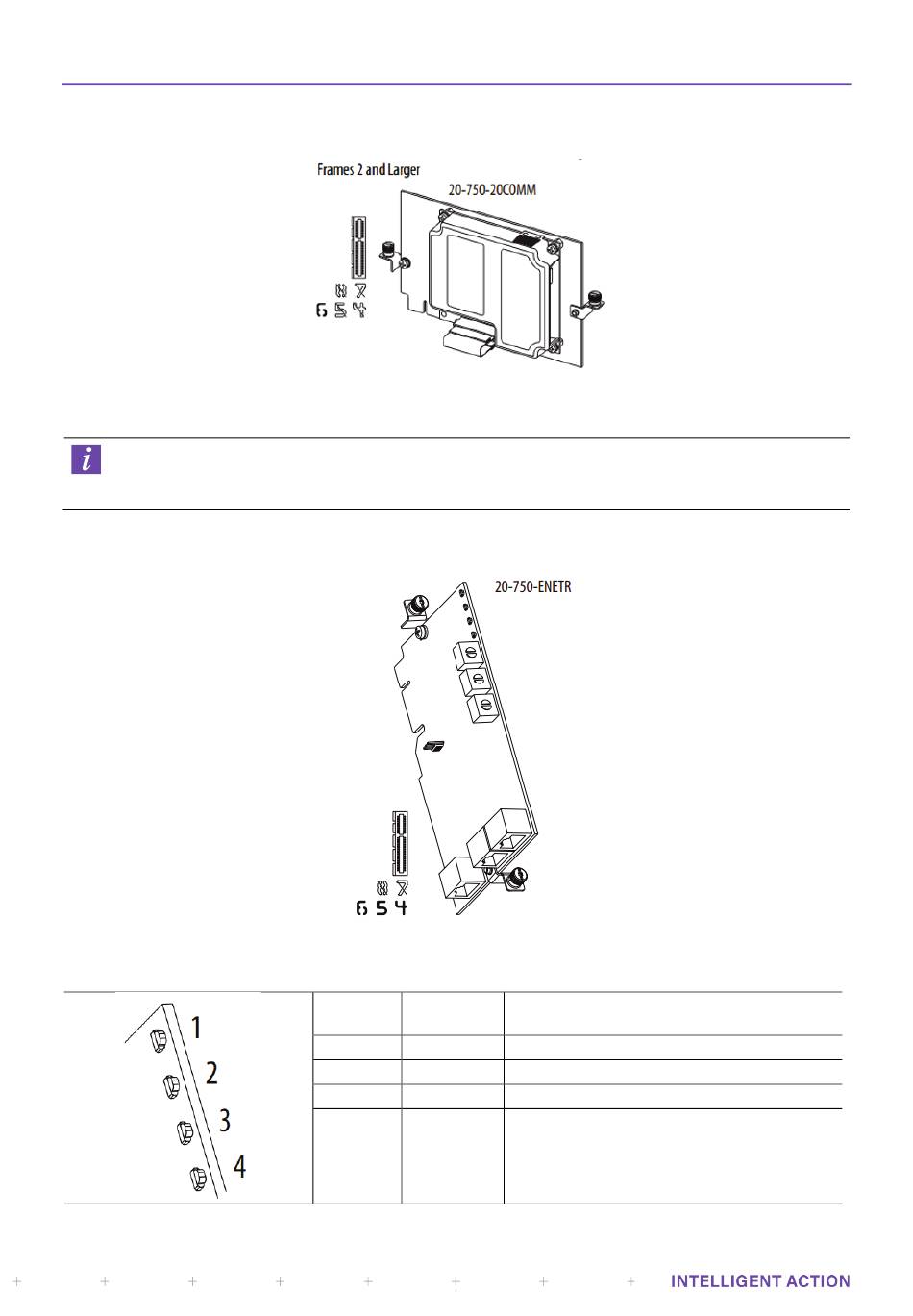

The VSD Modbus/TCP adapter is attached to 20-750-20COMM Carrier kit. This carrier kit enables the use of
the adapter with the drives.
The carrier kit shall be installed to Port 6 of the drive. Installing it at Port 4 or Port 5 makes the adjacent left
port inaccessible to other option modules and can interfere with network cable connections.
Note
The 20-COMM-M only passes on Modbus commands from the drive's DPI Port 0 to 6.

5.9.4 VSD DUAL-PORT ETHERNET/IP OPTION MODULE (20-750-ENETR)

Ethernet/IP Option Module Status Indicator Indication
Status
Name
Indicator
1 PORT
2 MOD
3 NET A
4 NET B
Description
DPI Connection Status
Option Module Status
Network Port 1 Status
Network Port 2 Status
