TB2 Terminal Designations (Two Relay Outputs: 2R)
Relay Out Terminal
R0NO
R0C
R0NC
R1NO
R1C
R1NC

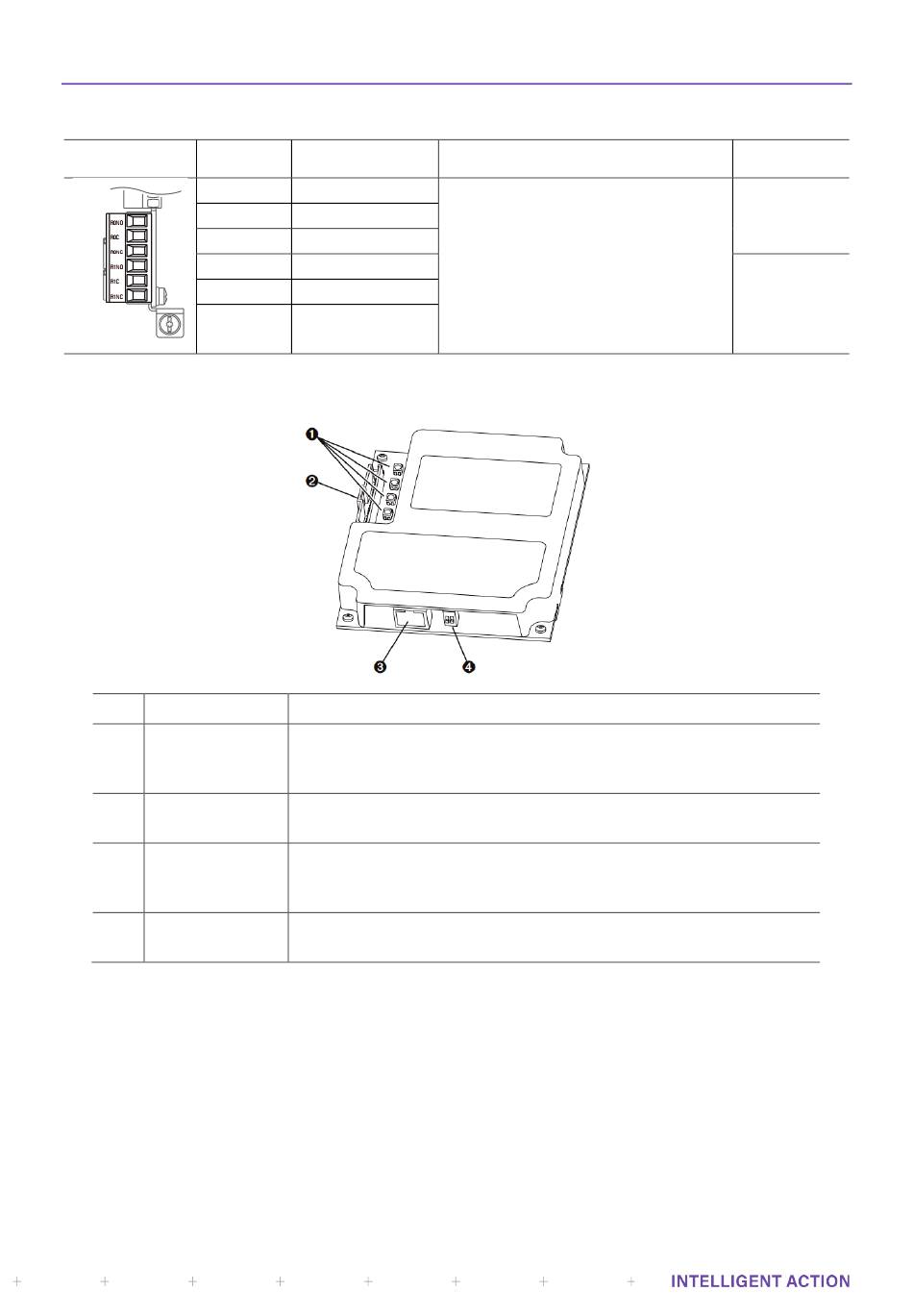

5.9.3 VSD MODBUS/TCP ADAPTER OPTION MODULE (20-COMM-M)

Item Part
1 Status Indicators
2 DPI Connector
3 Ethernet
Connector
4 Web Pages
Switch (SW2)
Name Description
Relay 0 N.O. Relay normally open contact output:
240V AC, 24V DC, 2 A max
Relay 0 Common
General-purpose (inductive)/resistive
Relay 0 N.C.
Relay 1 N.O.
Relay normally closed contact output:
Relay 1 Common
240V AC, 24V DC, 2 A max
Relay 1 N.C.
Only resistive
Description
Four LEDs that indicate the status of the DPI, the adapter, and network
connection. Refer to Appendix
Indicator.
A 20-pin, single-row shrouded male header. An internal interface cable
is connected to this connector and a connector on the drive.
An RJ-45 connector for the Ethernet cable. The connector is CAT-5
compliant to ensure reliable data transfer on 100Base-TX Ethernet
connections.
Enables or disables the adapter web pages. SW1 is unused.
D:VSD Modbus/TCP Adapter Status
Section 5:Wiring
Related
Parameter
10, 100, 101,
105, 106
On port X
20, 110, 111,
115, 116
On port X
