Altronix TROVE2SS2 Installation Manual page 3

Installation Instructions for Altronix Power Supplies and Sub-Assemblies to TSS2:
1. Fasten spacers (provided) into pem configuration (A), (B) or (C) of backplane (Fig. 2, pg. 3).
2. Mount boards to spacers utilizing 5/16" pan head screws (provided) (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Altronix Board
AL400ULXB2, AL400XB2V, AL600ULXB, AL600XB220, AL1012ULXB, AL1012XB220, AL1024ULXB2, AL1024XB2V,
eFlow4NB, eFlow4NBV, eFlow6NB, eFlow6NBV, eFlow102NB, eFlow102NBV, eFlow104NB, eFlow104NBV
ACM8, ACM8CB, ACMS8, ACMS8CB, LINQ8ACM, LINQ8ACMCB
ACM4, ACM4CB, LINQ8PD, LINQ8PDCB, MOM5, PD4UL, PD4ULCB, PD8UL, PD8ULCB, PDS8, PDS8CB, VR6
Installation Instructions for S2-INST Bracket to TSS2:
1. Align S2-INST mounting holes with pems on TSS2 (Fig. 2, pg. 3).
2. Attach S2-INST to backplane with lock nuts (provided) (Fig. 2b, pg. 3).
3. Mount backplane to enclosure with hardware.

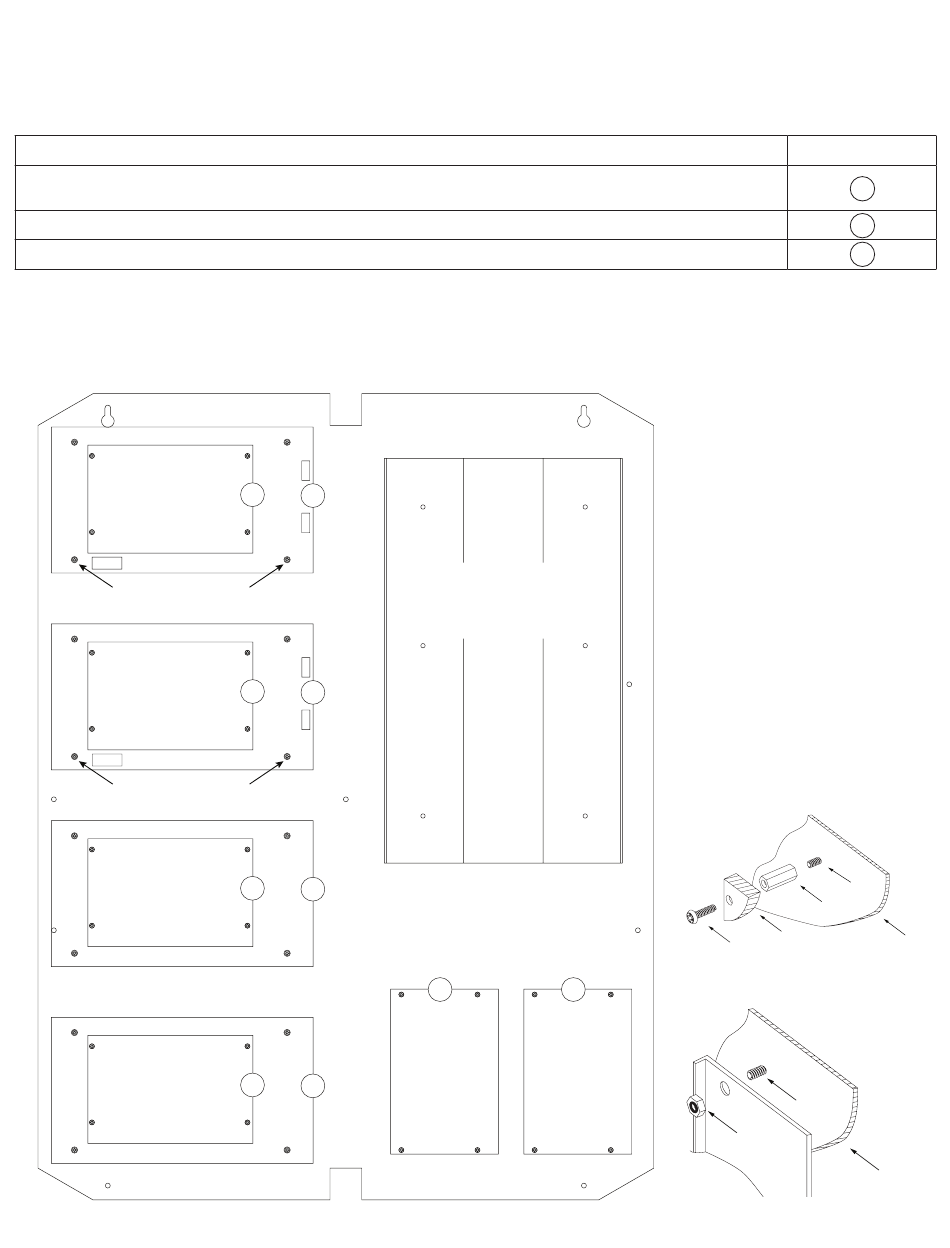

Fig. 2
Metal Spacer Placement
Metal Spacer Placement
TroveSS Installation Guide
C
A
C
A
C
B
C
B
S2-INST
Installation Kit for
S2 Network Node
C C
Pem Mounting
A
B
C
Fig. 2a
Pem
Spacer
Altronix
Backplane
Pan Head
Power Supply or
Screw
Sub-Assembly
Fig. 2b
Pem
Lock nut
Backplane
S2-INST Bracket
- 3 -
