Select the Setting for the External Input/Output Signals
Set the Trigger Filter
There is a built-in digital noise filter for trigger input with the MEMRECAM ACS-3. If there is
noise in the trigger signals, set the filter value larger to activate the filter.
The filter value is the time delay when an exact rectangle pulse with no chattering is input.
Set within a range of 0.0 to 6553.5μsec at units of 100nsec.

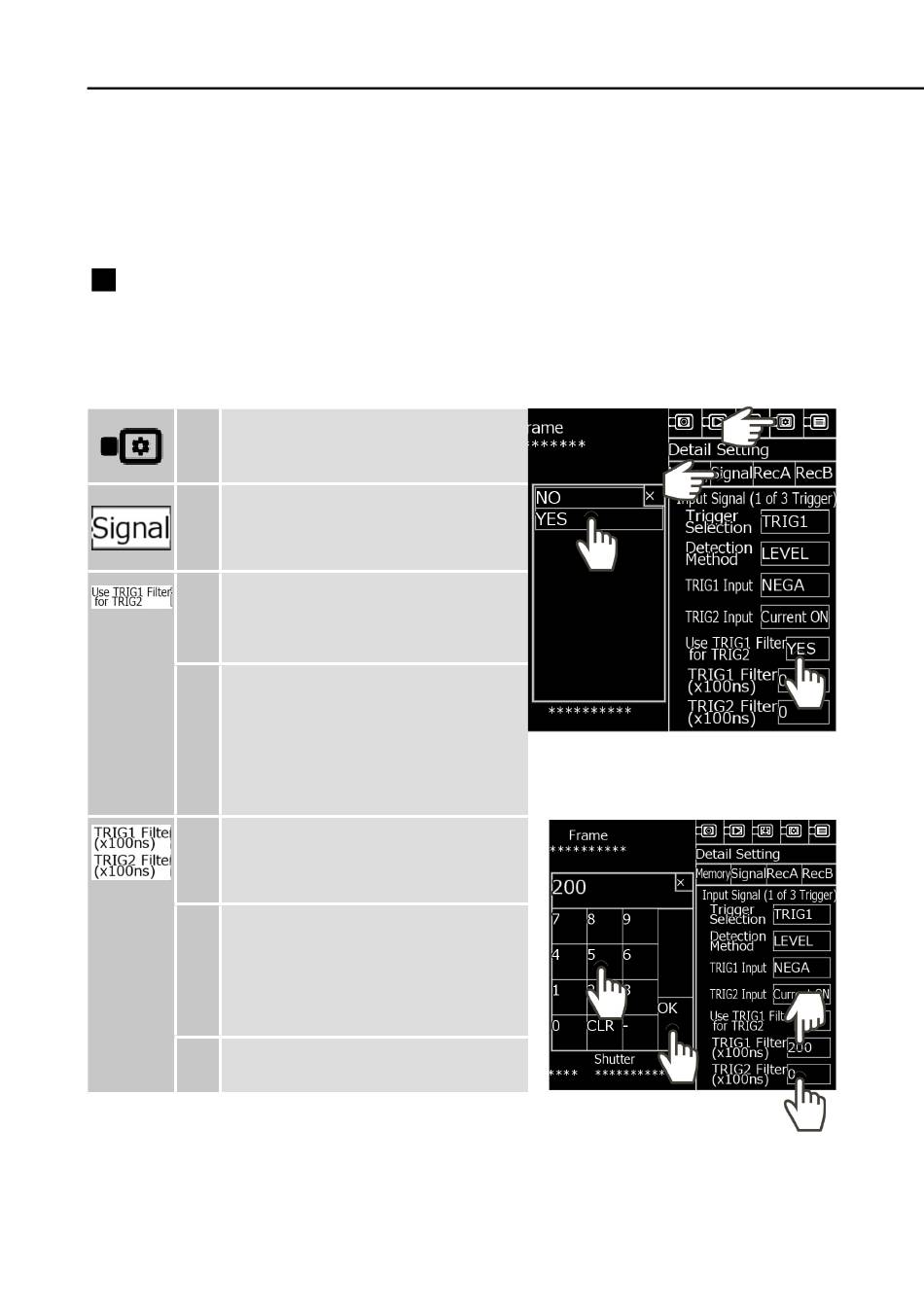

1 Select the detailed settings tab icon
2 Select inside the Signal tab box
Select the box to the right of Use
3 TRIG1 Filter for TRIG2
•A popup window is displayed
Select the desired item in the popup
window
•YES:Applies the TRIG1 filter to the
4
•NO:Applies the TRIG2 filter to the
Select the desired input/output polar-
5 ity setting in the box to the right
•A keypad is displayed
Input on the keypad in the popup
window
6 •The number input x100ns is used as
the filter value.
(e.g.)200 → 20000ns(20μs)
7 Select OK on the keypad
TRIG2 filter
TRIG2 filter
4
6
7-16
1
2
3
5
7
5
