Use Image Trigger

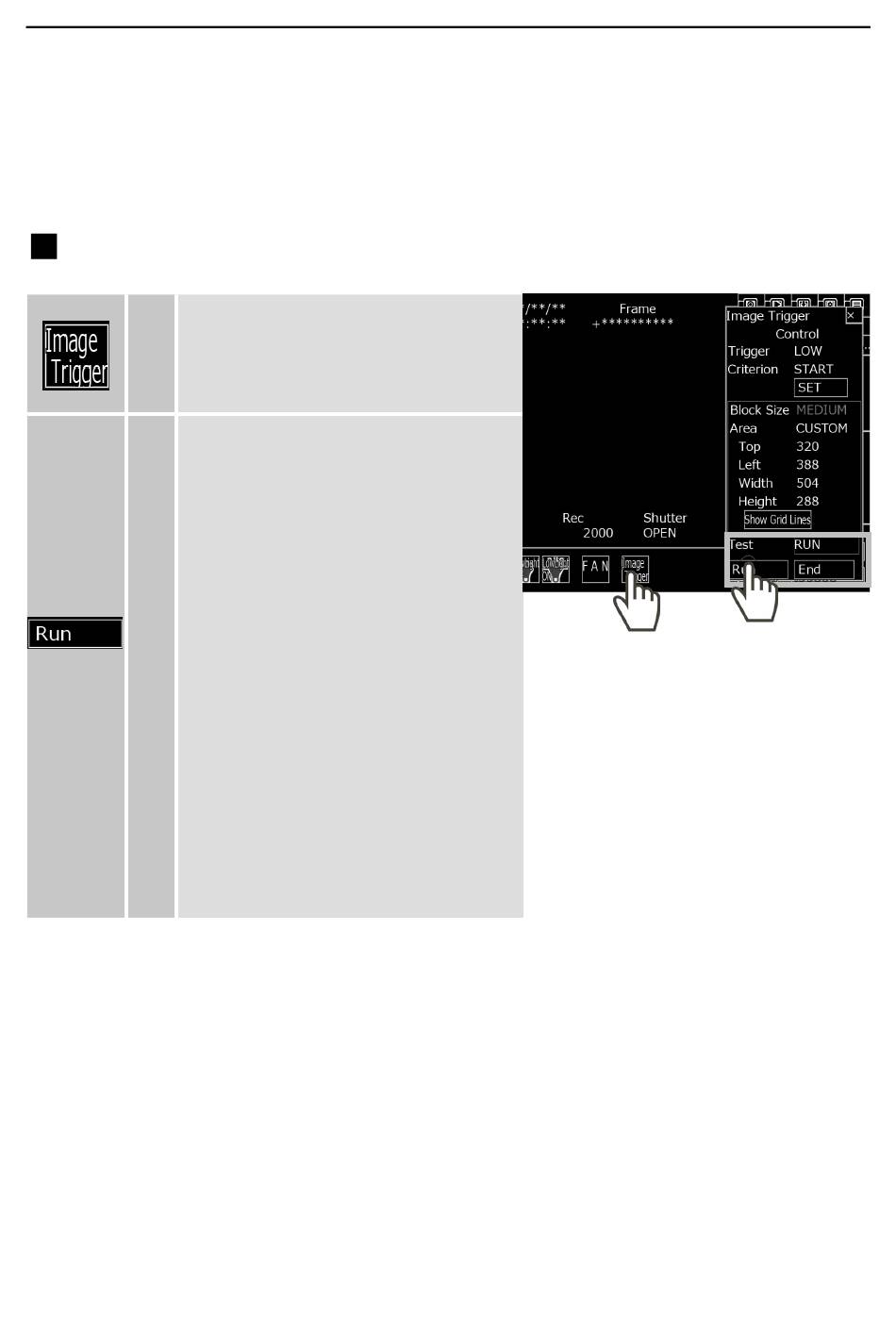

Use the image trigger test function
Test image trigger operation.
You can check if the trigger works as
1
expected while in VIEW mode
Press [RUN].
The status is displayed from [READY]
to [RUN].
The status indication changes from
[RUN] to [TRIGGERED] when the
image trigger is issued.If the trigger
is not issued as expected, press the
2
[END] button once to stop the oper-
ation, then review the settings, and
check the operation again with the
[RUN] button.
The [SET] button also shifts to the
test state.
In addition, the [SET] button updates
the detection criteria.
•If the trigger detection sensitivity is "OFF" or not in VIEW mode, the status display
will be [DISABLE].
