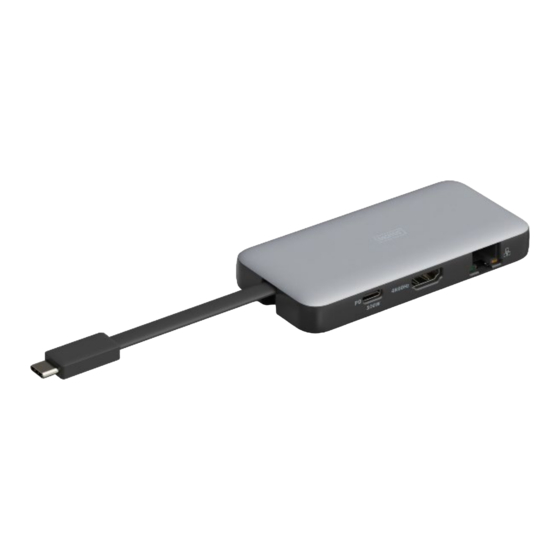

USB-C Travel Docking
Station, 7-Port
Quick Installation Guide
DA-70916

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA-70916 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitus DA-70916

  • Page 1 USB-C Travel Docking Station, 7-Port Quick Installation Guide DA-70916...
  • Page 2: Table Of Contents

    Table of contents Introduction ................3 Features ...................3 Package content ...............4 Specifications ................4 Connection diagram ..............6...
  • Page 3: Introduction

    1. Introduction Your most efficient solution for mobile productivity. With an HDMI port for an external monitor, two fast USB-A 3.2 Gen 1 Ports (5 Gbit/s) – One with charging function for mobile devices, a Gigabit Ethernet port (RJ45) for a reliable network connection and two card readers (SD/MicroSD) with high transfer speed, it offers comprehensive connectivity.
  • Page 4: Package Content

    3. Package content • 1x USB-C Travel Docking Station, 7-Port • 1x QIG 4. Specifications 1x USB-C (3.2 Gen 1) input – Host PC connection 1x HDMI output – Max. Resolution: UHD 4K/60Hz 2x USB-A 3.2 Gen 1 connection – 5 Gbit/s data transfer & charging function: 1x 7.5W (5V/1.5A), 1x 4.5W (5V/0.9A) Connections 1x RJ 45 Gigabit Ethernet...
  • Page 5 Short-circuit, overcurrent and overvoltage Protection protection Product colour Grey / Black Housing Aluminium / Plastic Weight 75 g Dimensions L 11 x W 5 x H 1.55 cm Operating 0°C - + 45°C temperature Cable length 10 cm Cable colour Black Notes: Not all USB-C Ports support all functions of the USB-C standard.
  • Page 6: Connection Diagram

    5. Connection diagram Host PC Gigabit Ethemet PD Adapter Max USB devices 100W...
  • Page 7 HDMI Display Micro SD3.0/ SD3.0 (4K60Hz) Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. info@assmann.com ASSMANN Electronic GmbH Auf dem Schüffel 3...
