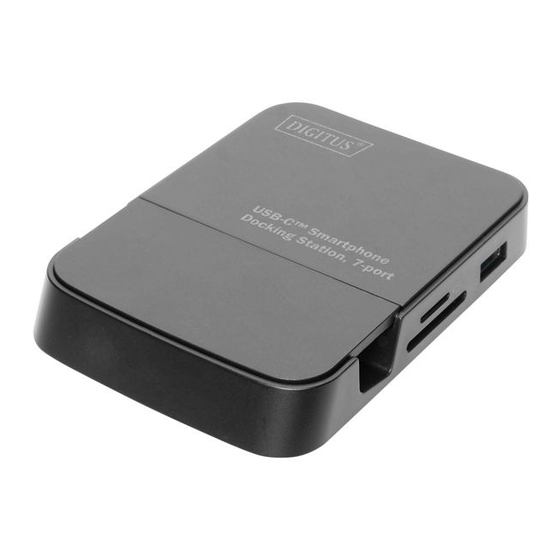

Usb-c smartphone docking station, 7-port

Advertisement

Quick Links

USB-C™ SMARTPHONE
DOCKING STATION, 7-PORT
Manual
DA-70882

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA-70882 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitus DA-70882

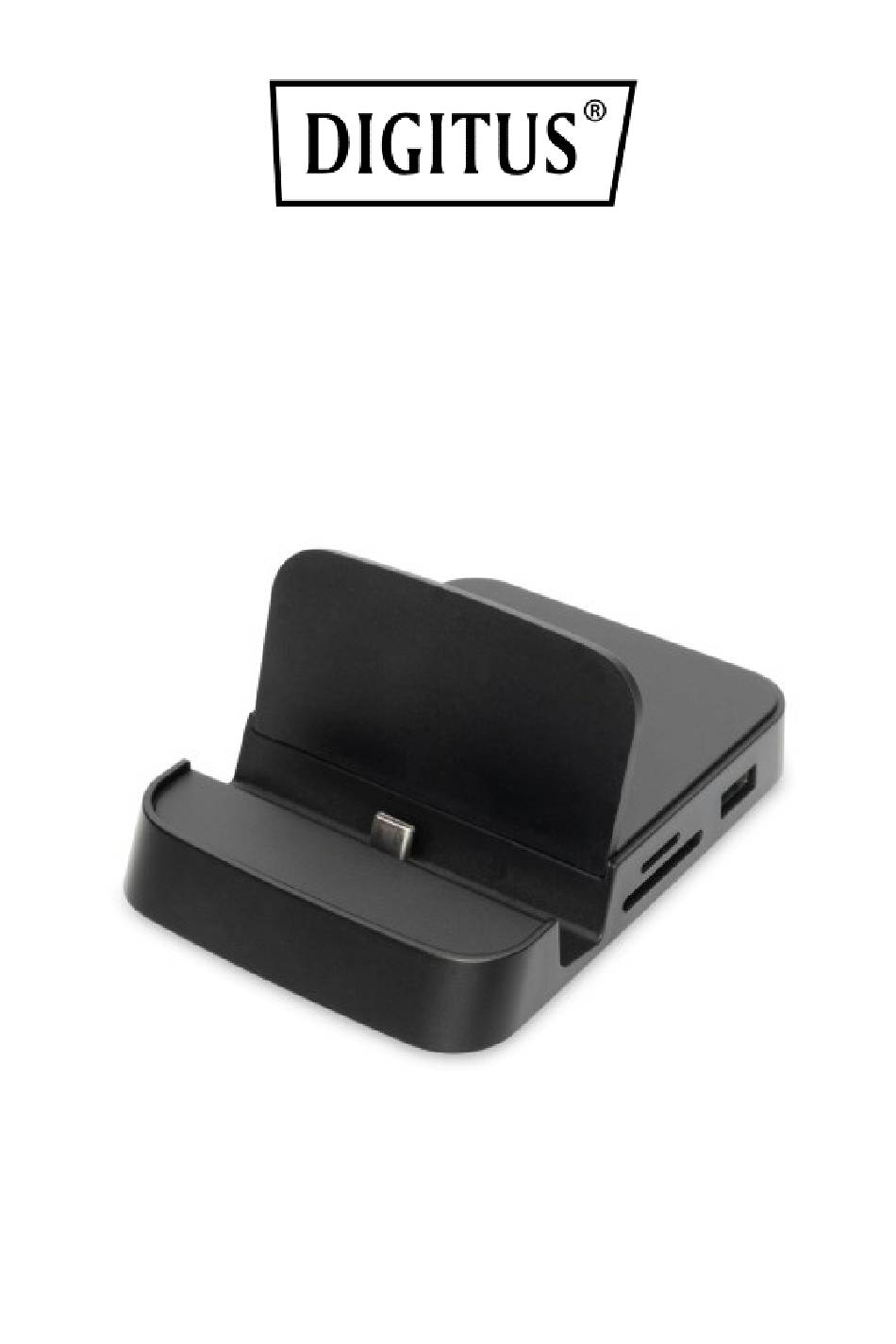

  • Page 1 USB-C™ SMARTPHONE DOCKING STATION, 7-PORT Manual DA-70882...
  • Page 2: Table Of Contents

    The statement Thank you very much for choosing this product! All information in this manual may be changed without notice and the company reserves the right to change the information at any time without notice. PRODUCT INTRODUCTION ..........3 1.1. P ..........
  • Page 3: Product Introduction

    1. Product introduction 1.1. Product introduction The DA-70882 is a high-performance USB-C hub for android smartphones. It extends two USB2.0, one USB 3.0 hub, high speed SD/MicroSD card reader, 5V/3A charging and 4K/30Hz HDMI video output. This product size is small, the appearance is fashion and easy to carry, It is very suitable for smartphones.
  • Page 4: Appearance And Interface

    2.6. Support hot plug, plug and play, easy to use. 2.7. Support HD HDMI 4K/30Hz output, support HDCP1.4/2. 2.8. Working voltage: 5V~20V. Static current: <220mA. 2.9. 2.10. Working current: 220~3000mA. 2.11. USB C charging port: support max 5V/3A charging. 2.12. Product size: 110 x 80 x 21 mm 2.13.
  • Page 5 No. Name Functional description Connect the PD charger or QC charger, which can provide power for the dock USB-C charging and charge the mobile phone. Support port up to 15W power supply for mobile phone. (power supply size is related to power adaptor and mobile phone) Connect HDMI HD cable to display device, provide maximum output of...
  • Page 6: Functional Instructions

    4. Functional instructions 4.1. HDMI output Connect the smart phone to the DA-70882 dock, and then use HDMI (*2.0) audio and video cable to connect the HD display to the DA-70882 dock. The system will automatically identify the display and synchronously display the contents of the smart phone screen.
  • Page 7: Use Of Usb3.0 Or Usb2.0 Interfaces

    Connect the smart phone to the DA-70882 dock, and then connect the mouse or keyboard to the USB3.0(USB2.0) interface of the DA-70882 dock to operate the mobile with the external mouse or keyboard. Insert the USB flash drive or mobile hard drive. At this time, the disk symbol of USB flash drive or mobile hard drive pops up on the screen.
  • Page 8: Sd/Micro Sd Card Reader

    4.3. SD/Micro SD card reader Connect the smart phone to the DA-70882 dock, insert the SD card or MicroSD card, then pop up the SD card or Micro SD card symbol on the screen, click enter, and you can copy, move, delete and do other operations on the inside files.
  • Page 9 • if the original charger of the phone is not a high-power PD or QC charger, the power supply connected to DA-70882 may be insufficient, resulting in slow charging for the phone.
  • Page 10: Product Precautions

    5. Product precautions 5.1. do not allow any object (such as combustible material, needle) or any liquid (such as water and beverage) to fall into or infiltrate into the product, resulting in the failure of normal use of the product. 5.2.
