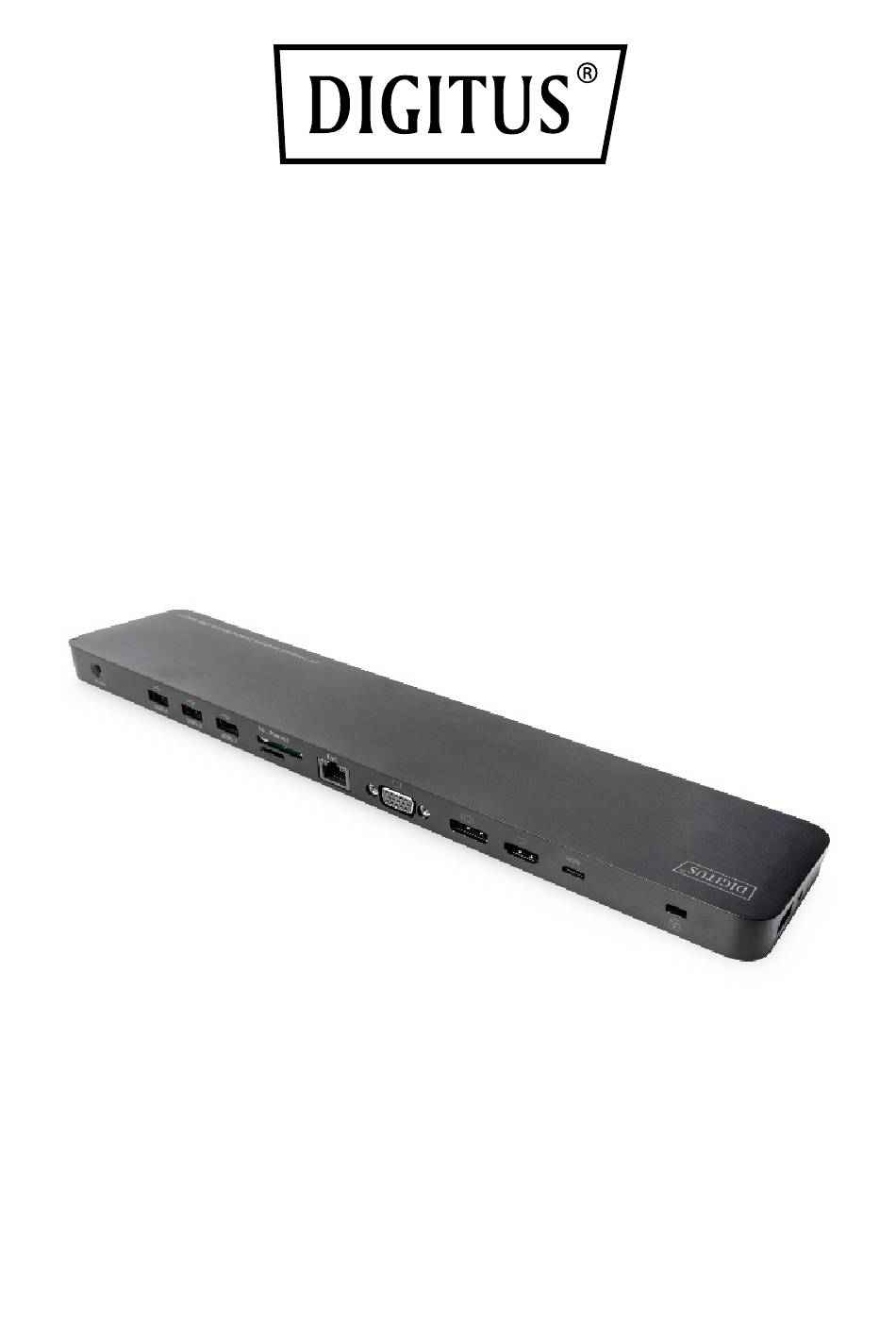

- Page 1 14" Universal Notebook Docking Station, USB Type-C™ User Manual DA-70868...

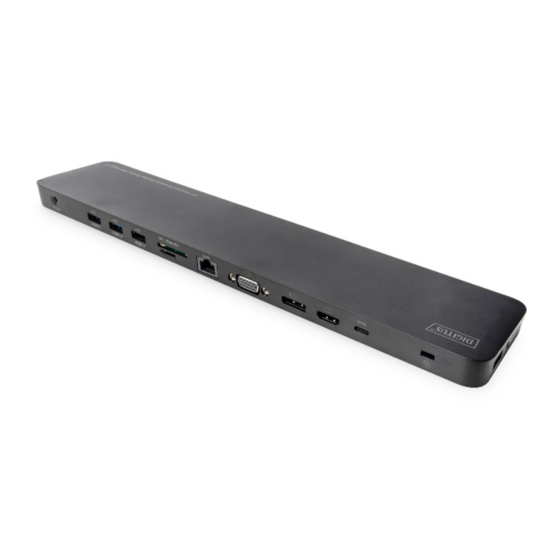

- Page 2 1.0 INTRODUCTION The 14" docking station from DIGITUS® extends your notebook by 14 extra ports via one USB-C™ connection. It contains, inter alia, three video ports (HDMI, DisplayPort, VGA) for connecting monitors, projectors, TVs, etc. Thanks to triple monitor support, these can be used simultaneously.
- Page 3 3.0 FEATURES • Supports UHD up to 4K/30Hz to 3840 x 2160p resolution • 3x Video interfaces (HDMI, DP, VGA) to connect up to three monitors at the same time (triple display support) • Triple display support under Windows OS - SST (Single Stream Transport) and MST (Multi Stream Transport) –...
- Page 4 • Smart cable routing - connections are possible on both sides of the notebook (left and right), cables are routed underneath the docking station • Suitable for notebooks up to 14" with a USB-C™ port, can also be used separately lying for all sizes •...
- Page 5 Note: 4K mentioned above stands for 4096*2160, 3840*2160; 1080P stands for 1920*1080; 720P stands for 1280*720. 4.0 SPECIFICATIONS Input/Output Connector Input 1x USB-C Female (Connect to Type-C™ Host) Output 1x USB-C Female (for data) 1x USB-C Female (for PD Charging) 3x USB 3.0 Female 2x USB 2.0 Female 1x HDMI Female...
- Page 6 5.0 CONNECTION DIAGRAM 1 Tablet 9 VGA Display 1920x1200/60 Hz 2 Headphones/Microphone 10 DisplayPort Display 4K/30 Hz 3 Power Button 11 HDMI Display 4K/30 Hz 4 Mouse 12 Type-C™ Charging Adapter 5 USB Stick 13 Anti-Lost Lock 6 Keyboard 14 Notebook 7 SD Memory Cards 15 Printer 8 Ethernet Router...
