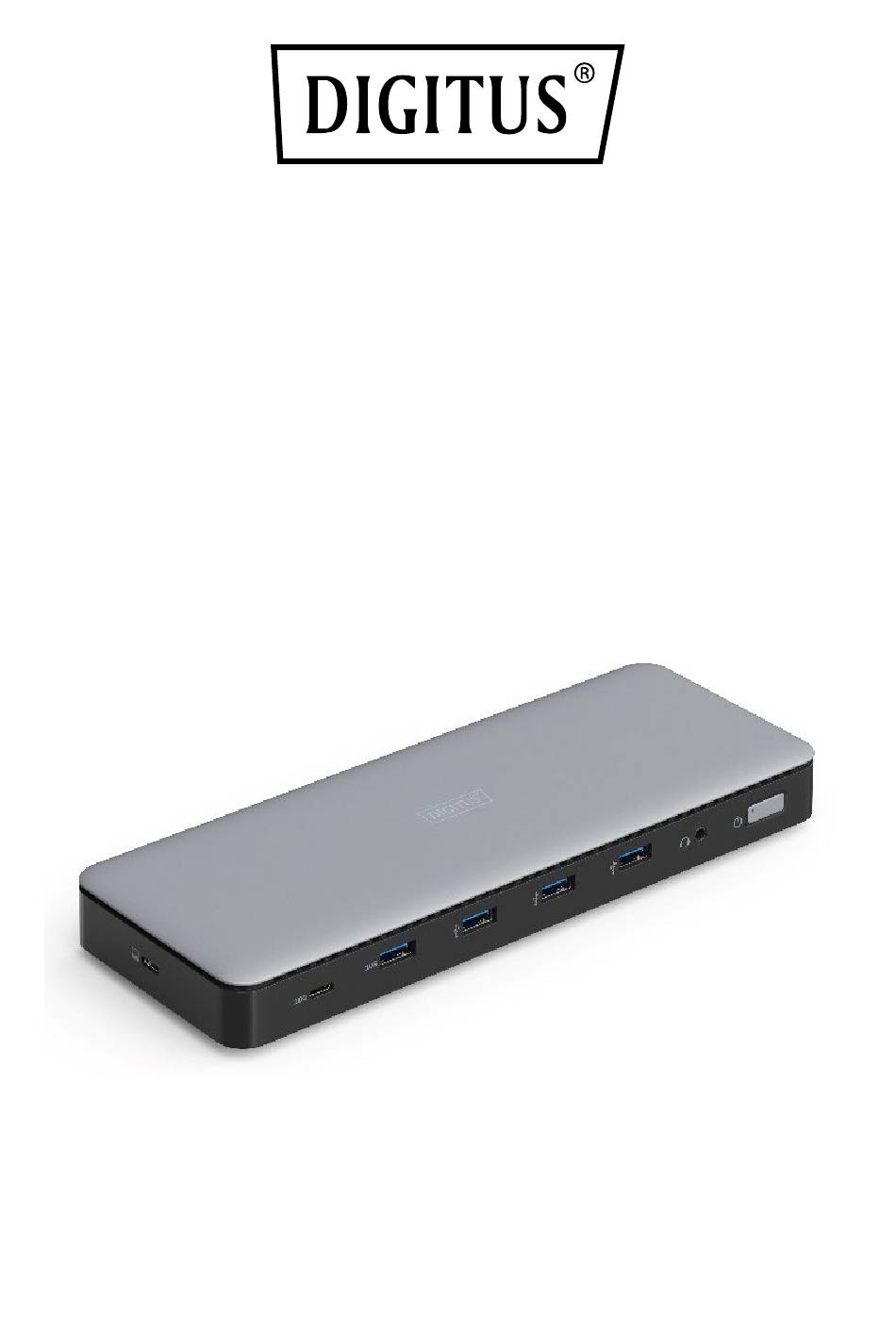

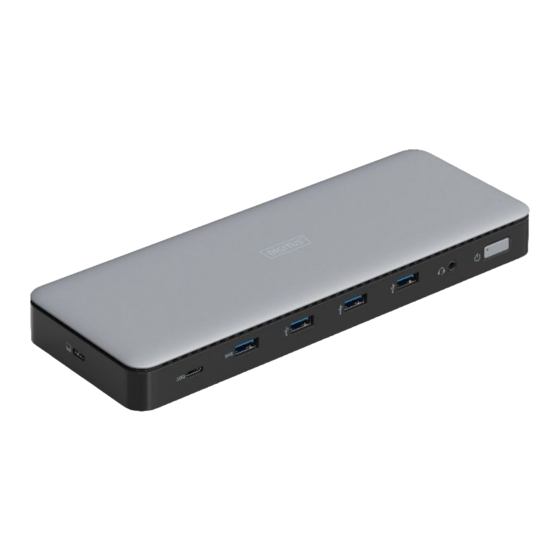

- Page 1 USB-C Docking Station, 13-Port Quick Installation Guide DA-70918...
-
Page 2: Table Of Contents
Table of contents Introduction ................3 Features ...................3 Package content ...............4 Specifications ................4 Port description ................7 Connection diagram ..............9... -
Page 3: Introduction
1. Introduction Expand your workplace with 13 additional connection options and take advantage of the wide range of connectivity options. The dock enables dual or triple monitor setups (4K/60Hz on all monitors) in MST Mode (screen extension) for Windows, macOS (including M1, M2, M3 chipsets), ChromeOS and Linux PCs. -
Page 4: Package Content
• Supports dual monitor (2x 4K/60Hz) & triple monitor (3x 4K/60Hz) in SST Mode (screen mirroring) – All common operating systems • 3x USB-A 3.2 Gen 1 (5 Gbit/s) for fast data transfer – One port with additional charging function (1.5A) for mobile devices •... - Page 5 3x USB-A 3.2 Gen 1 Port – 5 Gbit/s data transfer & charging function: 7.5W (5V/1.5A), 1x 4.5W (5V/0.9A), 1x 4.5W (5V/0.9A) 1x USB-A 3.2 Gen 2 Port – 10 Gbit/s data transfer & charging function: 1x 7.5W (5V/1.5A) 1x USB-C 3.2 Gen 2 connection –...
- Page 6 Dimensions L 22.5 x W 8.5 x H 2.5 cm Operating 0°C - + 45°C temperature Cable length 100 cm Cable colour Black LED display Power switch with LED display Notes: • Please note that a manual installation of drivers for your respective operating system (Windows, macOS, ChromeOS, Android, Linux) is necessary.
-
Page 7: Port Description
• The Docking Station is not operational without a connected power supply (DC jack) Compatibility exists with the following operating systems up to • their current versions: From Windows 7, from macOS 12, from iPhone 15 (iOS), from iPadOS 16, from Android 14, from ChromeOS 116.0.5845.120, from Linux 22.04 LTS 5. - Page 8 RJ45 Gigabit Ethernet 3.5 mm Audio Jack (max. 2.5G) HDMI or DP-Display (USB mode - max. 4K/60Hz) HDMI-Display (DP Alt Power Switch mode – max. 4K/60Hz) DC-Jack (150W) Anti-theft lock, Standard 1x USB-C 3.2 Gen2 Anti-theft lock, Nano (10 Gbit/s) 1x USB-A 3.2 Gen2 Host PC (10 Gbit/s)
-
Page 9: Connection Diagram
6. Connection diagram Gigabit-Ethernet USB devices HDMI or DP-Display Headset (max. 4K/60Hz) HDMI-Display (max. 4K/60Hz) - Page 10 150W Power Supply Power Switch USB devices Host PC Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
