Digitus DA-70548 Manual

Digitus DA-70548 Manual

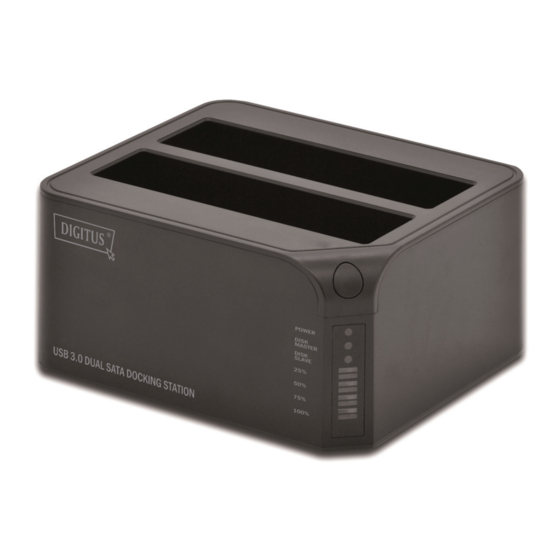

Usb 3.0 dual sata hdd docking station

Advertisement

Quick Links

USB 3.0 DUAL SATA HDD

DOCKING STATION

Manual
DA-70548

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA-70548 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitus DA-70548

  • Page 1: Docking Station

    USB 3.0 DUAL SATA HDD DOCKING STATION Manual DA-70548...
  • Page 2: Function Chart

    USB 2.0 and USB 1.1. The maximum transfer speed of USB 3.0 can reach 5Gbps. The actual transfer speed of DA-70548 is 400M/s. It supports Offline Clone, which is able to copy data and system files from Source HDD to Target HDD completely via finger touch.
  • Page 3 Function:  Complies with Gen2i/Gen2m of Serial ATA II Electrical Specification 2.6  Supports SATA II Asynchronous Signal Recovery (Hot Plug) feature  Supports SATA to SATA pass through  Complies with USB 3.0 Specification, USB Mass Storage Class, Bulk-Only Transport Specification: ...
  • Page 4 Insert source HDD to Bay ‘A’; target HDD to Bay ‘B’, and then turn on the power b. Once the Bays indicators are on, that means DA-70548 is ready for clone. c. Press and hold the clone button for 3 seconds until the indicator light is on, press the button once more for Clone confirmation.
  • Page 5 d. Clone progress indicator flashes and shows the progress (25%, 50%, 75%, and 100%). e. Once clone is finished, all progress indicators will light up. f. Turn off power and take out the HDD carefully...
  • Page 6 2. USB Clone Drive Installation a. Please insert the CD drive and click “setup.exe”. Choose your language and click “ Next” b. Fill in the S/N # accordingly (you can find the S/N# on the cover of CD drive)
  • Page 7 c. Click “Install” for installation d. Installation progress is showed e. please click “Done” once installation is finished.
  • Page 8 Please insert Source HDD and Target HDD well to the docking, connect DA-70548 to PC via USB cable. Turn on the power, you can find the clone icon on the right bottom of window, then double click the CLONE Icon to start the program.
  • Page 9 d. Clone progress is showed e. Click “OK” once clone is finished f. You should find the same contents of Source HDD in Target HDD...
  • Page 10: Hdd Partition

    g. If your target HDD has extra space, the system will allocate it to “unallocated” area automatically, please refer to the below picture. (Windows system only allows a maximum of four primary partitions, if the original disc already exist four primary partitions, then it cannot distinguish the extra space but logical drives can have more than one )...
  • Page 11 i. Right click 〝New partition〞for further action j. “Next”...
  • Page 12 k. Base on your need and click “Next” l. Please enter the new partition capacity and click “Next” for further action...
  • Page 13 a. Assign the drive letter and “Next” b. Select “quick format” to format the new partition...
  • Page 14 c. Click “finish” d. Partition completed, the new partition can be found.
