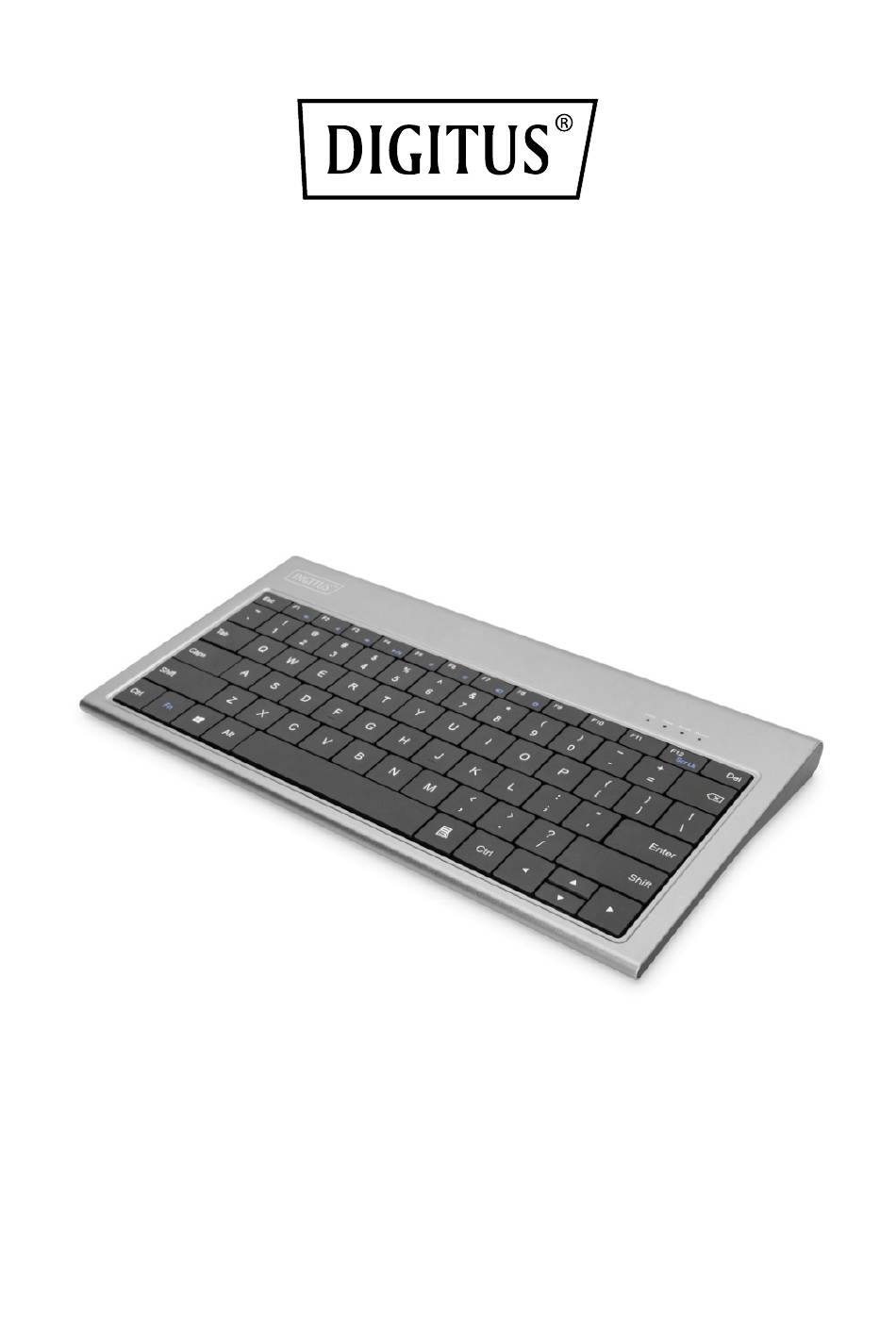

- Page 1 USB-C™ Docking Station 10-in-1 with Keyboard Manual DA-70885...
-
Page 2: Product Introduction
Product Introduction The multifunctional DIGITUS® docking station has everything you need to create a fully equipped workplace. The integrated keyboard enables you to utilize your notebook or MacBook® even more conveniently, namely in conjunction with the docking station. Via the HDMI®... -
Page 3: Structure Diagram
Structure Diagram 1 Status Indicator: 6 HDMI® Lock, Caps, Scroll, Power 2 Audio 7 VGA 3 USB 3.0 8 USB Type-C™ 4 SD / Micro SD Memory Cards 9 USB Type-C™ with Power Delivery (PD) Function 5 RJ45 Ethernet... - Page 4 Features 1) 10 additional interfaces for your notebook, MacBook® or PC 2) Supports resolutions up to UHD 4K / 30 Hz (HDMI®) or dual display with Full HD 1080p / 60 Hz (HDMI® + VGA) 3) Extended screen or duplicated screen display possible (extension / clone 4) Supports Power Delivery 3.0 (100 W max.) to quickly charge your notebook...
-
Page 5: Operating System Support
Operating System Support: Mac OS x. 10.x and future releases Windows 7/8/10 32 and 64 bit and future release Note: 1. Keyboard only support Mac os or windows system 2. Press FN+F11 simultaneously lock or unlock the keyboard Additional Information Operating Temperature 0°C to +45°C Operating Humidity... - Page 6 Connection Diagram / Application Example 1 Headphones 6 Router 2 USB Stick 7 HDMI® Display 3 HDD / SSD (External Storage) 8 VGA Display 4 Mouse 9 Notebook / PC 5 SD / Micro SD Memory Cards 10 Power Supply Note: 1.
- Page 7 Display setting for Win 10 Rigth click desktop > display settings...
- Page 8 Graphics settings for Win 10 1. Clone mode Right click desktop > graphics seting > display...
- Page 9 2. Extended Desktop Right click desktop > graphic settings > display...
- Page 10 Resolution setting for MAC Apple Logo > System Preferences > Displays Sound setting for MAC Apple Logo > System Preferences > Sound...
- Page 11 Graphics settings for MAC 1. Mirror Display Apple Logo > System Preferences > Displays...
- Page 12 2. Extended Display Apple Logo > System Preferences > Displays...
- Page 13 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
