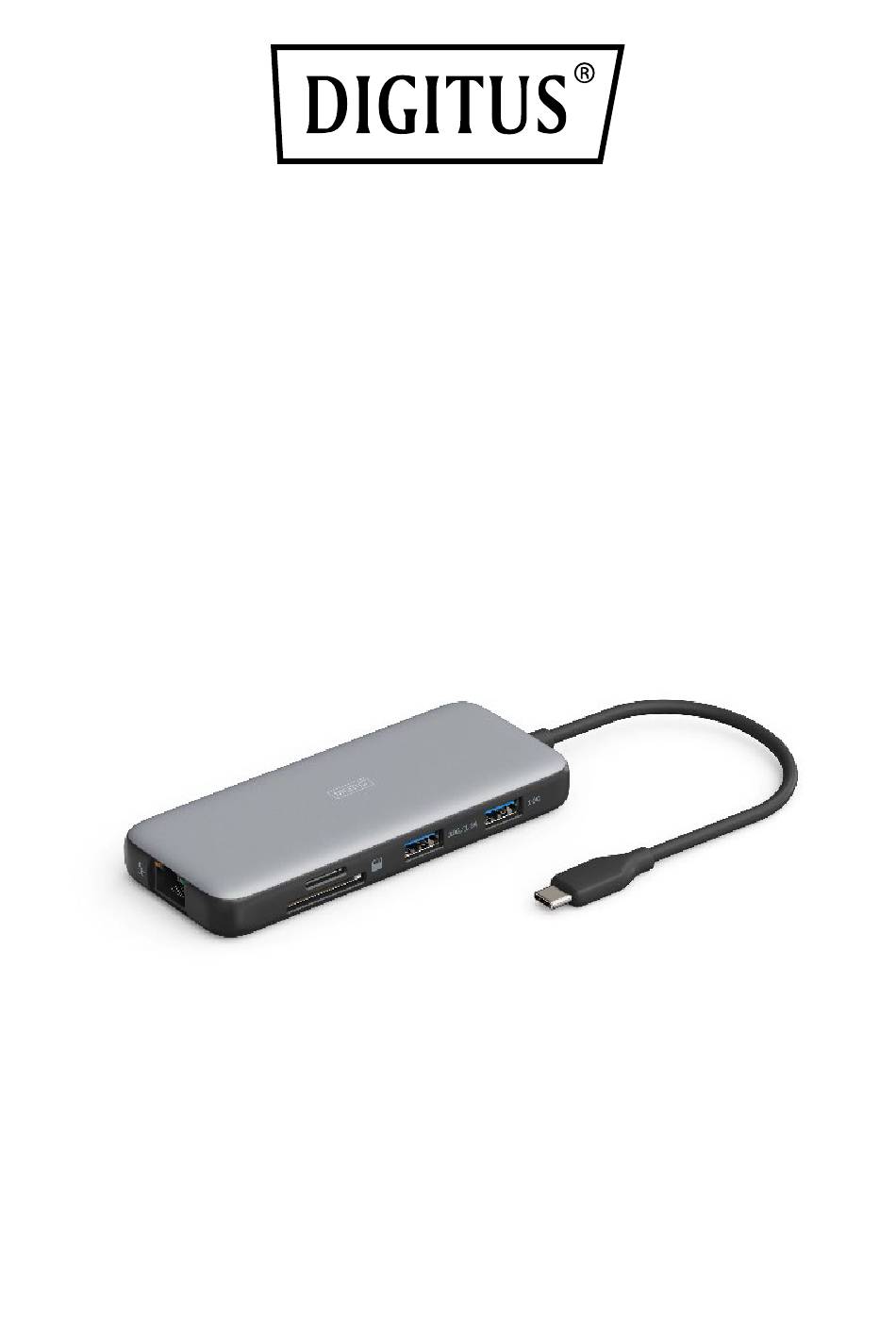

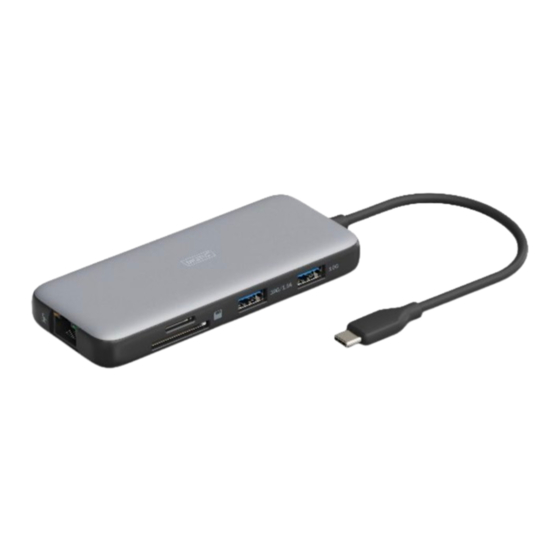

- Page 1 USB-C Docking Station, 8-Port Quick Installation Guide DA-70915...
-
Page 2: Table Of Contents
Table of contents Introduction ................3 Features ...................3 Package content ...............4 Specifications ................4 Connection diagram ..............6... -
Page 3: Introduction
1. Introduction Expand your notebook with our USB-C 8-Port Docking Station. With two HDMI ports, you can connect two external monitors in 4K quality and expand your screen space. In SST Mode (screen mirroring), the docking station supports dual monitors with 2x 4K/60Hz. In MST Mode (screen extend) it supports dual monitor with 2x 4K/60Hz. -
Page 4: Package Content
• 1x USB-C Power Delivery (3.0) Port for charging the notebook. Supports PD 3.0 Fast Role Swap (FRS) – The connection • between the docking station and notebook is not interrupted when the charger is unplugged. Integrated USB-C connection cable (20 cm) •... - Page 5 VL822T-Q7, VL102, KTM5000, RTS5306, Chipset RTL8153B-VC Supports DP 1.4 Alt Mode, backwards compatible to DP 1.2 Alt Mode (DisplayPort Alternate Mode) Supports Supports HDR (High Dynamic Range) Supports HDCP 2.2, HDCP 1.4, HDCP 1.3 Short-circuit, overcurrent and overvoltage Protection protection Product colour Grey / Black Housing...
-
Page 6: Connection Diagram
• To use the full range of functions, the notebook must support DP 1.4 Alt Mode When both USB-A 3.2 Gen 2 ports are used simultaneously, • there is a difference in charging performance due to the joint limitation of the ampere output to a total of 2A. •... - Page 7 Display 1: HDMI Display Gigabit Ethernet (max. 4K/60Hz) Display 2: HDMI Display Micro SD3.0 / SD3.0 (max. 4K/60Hz) PD Power Adapter USB devices (max. 100W) Host PC Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
