Digitus DA-70881 Manual

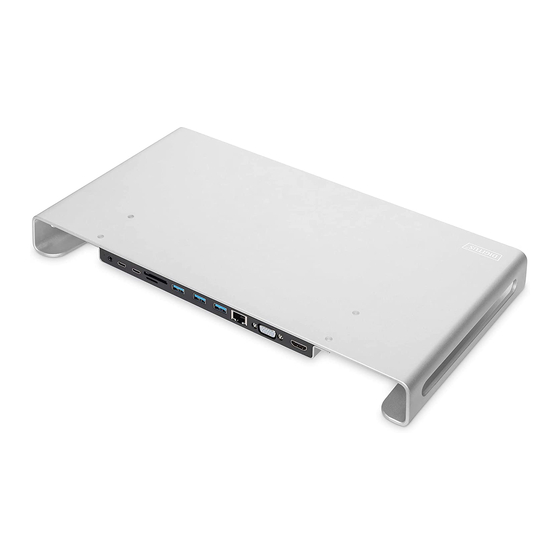

Usb-c 11-in-1 docking station with aluminum monitor stand
Hide thumbs

Advertisement

Quick Links

Download this manual
USB-C™ 11-in-1
Docking Station with Aluminum
Monitor Stand
Manual
DA-70881 Rev.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA-70881 and is the answer not in the manual?

Questions and answers

Related Manuals for Digitus DA-70881

Summary of Contents for Digitus DA-70881

  • Page 1 USB-C™ 11-in-1 Docking Station with Aluminum Monitor Stand Manual DA-70881 Rev.1...
  • Page 2 INTRODUCTION This is a multi-functional USB-C™ docking station with monitor riser stand design. It mainly extends the USB-C™ interface of the source device to 1x HDMI, 1x VGA, 1x RJ45, 3x USB 3.0 (A), 1x SD, 1x MicroSD card reader, 1x 3.5mm Audio, 1x USB-C™ (PD) for charging, 1x USB-C™...
  • Page 3 Example for application: 1 Headphones 6 Keyboard 2 Power Adapter 7 USB Drive 3 Network 8 Smartphone 4 VGA Display 9 Memory Card 5 HDMI Display 10 Notebook...
  • Page 4 FEATURES  1xUSB-C™ input (connection to host)  1x HDMI port  1x VGA port  1x RJ45 port  1x USB-C™ port for Power Delivery (PD)  3x USB 3.0 (A) port  1x SD card reader  1x MicroSD card reader ...

  • Page 5: Additional Information

    ADDITIONAL INFORMATION: Operating Temperature 0°C to +45°C Operating Humidity 10% to 90 % RH (no condensation) Storage Temperature -10°C to +70°C Storage Humidity 10% to 90 % RH (no condensation) USB-C™ PD Charging Port 100W (max.) CONNECTION...
  • Page 6 DISPLAY SETTING FOR WINDOWS Right click desktop > display settings...
  • Page 7 GRAPHICS SETTING FOR WINDOWS 1) Clone mode a. Right click desktop > graphics setting > display...
  • Page 8 2) Extended Desktop a. Right click desktop > graphic settings > display...
  • Page 9 RESOLUTION SETTING FOR MAC Apple logo > System preferences > Displays...
  • Page 10 GRAPHICS SETTINGS FOR MAC 1) Mirror display a. apple logo > system preferences > displays...
  • Page 11 2) Extend display a. Apple logo > system preferences > displays...

  • Page 12: Operation

    OPERATION 1) Connect the USB-C male port of this product to your device 2) Connect the three USB3.0 ports to three USB devices 3) Connect the HDMI port to HD display with one HDMI Cable 4) Connect the VGA port to HD display with one VGA Cable 5) Connect Gigabit Ethernet port of this product to Ethernet Router with an Ethernet cable 6) Connect the Stereo port to earphone...
