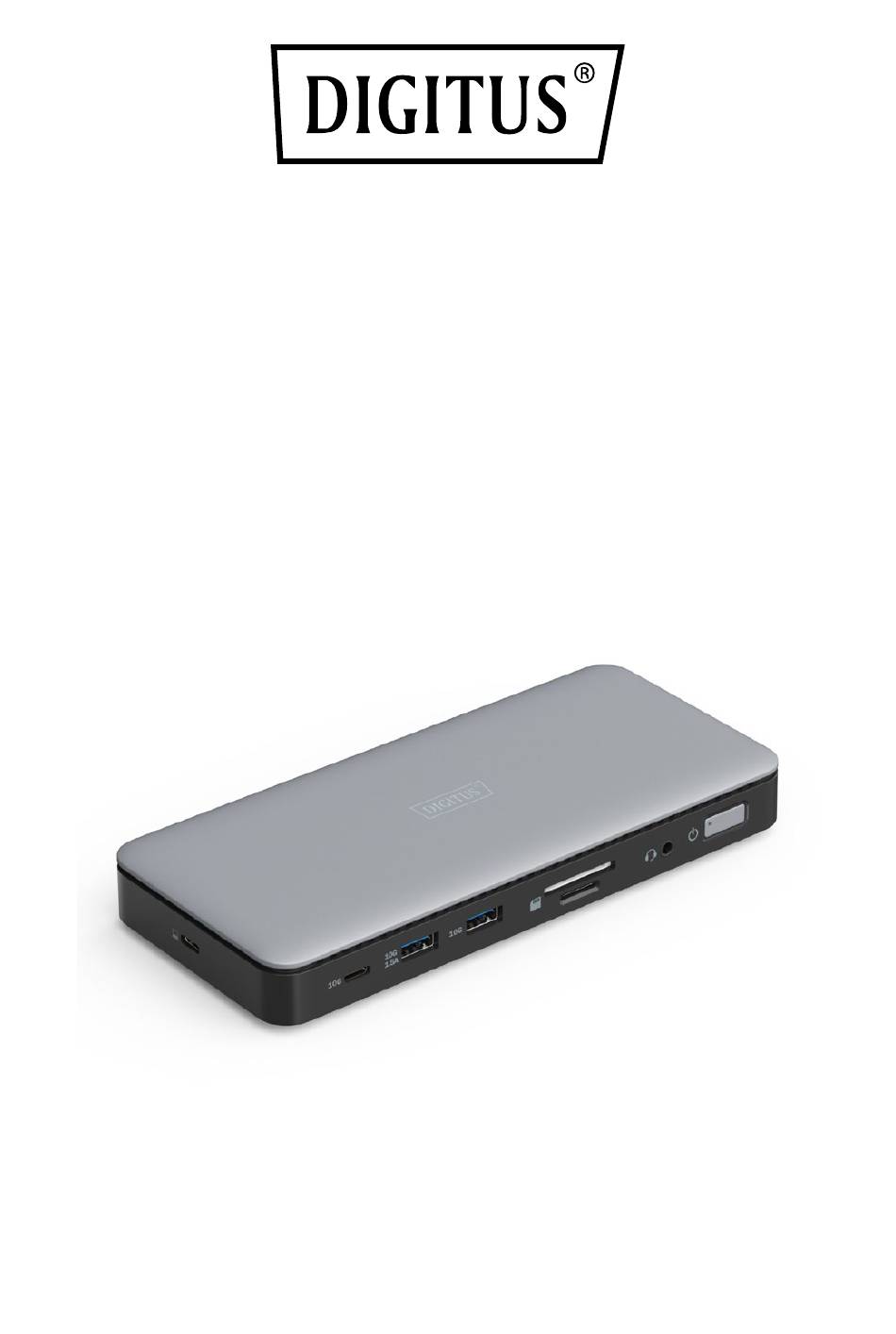

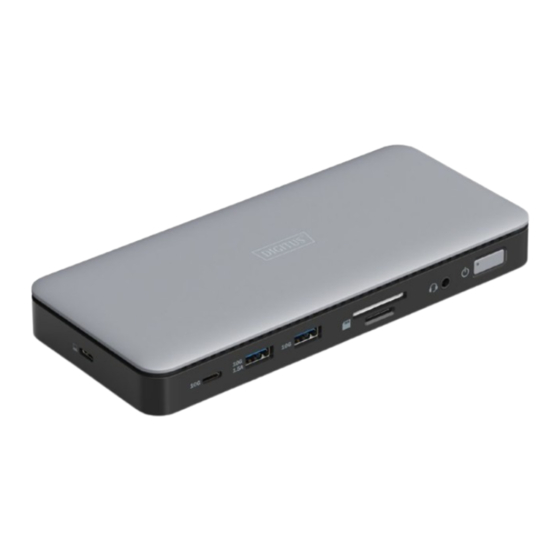

- Page 1 USB-C Docking Station, 11-Port Quick Installation Guide DA-70917...
-
Page 2: Table Of Contents
Table of contents Introduction ................3 Features ...................3 Package content ...............4 Specifications ................4 Connection diagram ..............7... -
Page 3: Introduction
1. Introduction Expand your workplace with our USB-C Docking Station. Expand your screen with three external monitors thanks to the 2x HDMI Ports and 1x DP Port. The Docking Station supports both dual monitor mode (2x 4K/60Hz) and triple monitor mode (3x 4K/60Hz) in SST Mode (screen mirroring) and (1x 4K/60Hz + 2x 4K/30Hz) MST Mode (screen extension). -
Page 4: Package Content
• 1x Gigabit Ethernet connection (RJ45) – Connect your notebook to the network via cable. 2x Card reader (SD/MicroSD) – Transfer speed of 104 MBps • 1x DC-Jack – Connection for charging the notebook. • 1x 3.5 mm Audio jack •... - Page 5 2x Card reader – 1x SD/1x MicroSD (up to 104 MBps) 1x DC-Jack – 134 watts max. (100W host, 34W dock) 1x 3.5 mm Audio jack Anti-theft 1x Standard + 1x Nano protection VL171, VL103R-Q4, RTL8153B, GL3224, Chipset VMM5310, VL822T, VL817-Q7S, VL162, KT0200 Supports DP 1.4 Alt Mode, backwards compatible to DP 1.2 Alt Mode (DisplayPort Alternate Mode)
- Page 6 Notes: Not all USB-C Ports support all functions of the USB-C standard. • Make sure that the USB-C Port on your notebook supports DisplayPort Alternate Mode (DP-Alt Mode) and USB Power Delivery (PD) Supports dual monitor (2x 4K/60Hz) & triple monitor •...
-
Page 7: Connection Diagram
5. Connection diagram... - Page 8 134W Power supply Headphone Gigabit Ethernet 2x HDMI-Display, 1x DP-Display Power Switch (max. 4K/60Hz) USB devices Anti-theft lock, Standard (10 Gbit/s) USB devices Anti-theft lock, Nano (10 Gbit/s) Micro SD 3.0 / SD 3.0 Host PC Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content.
