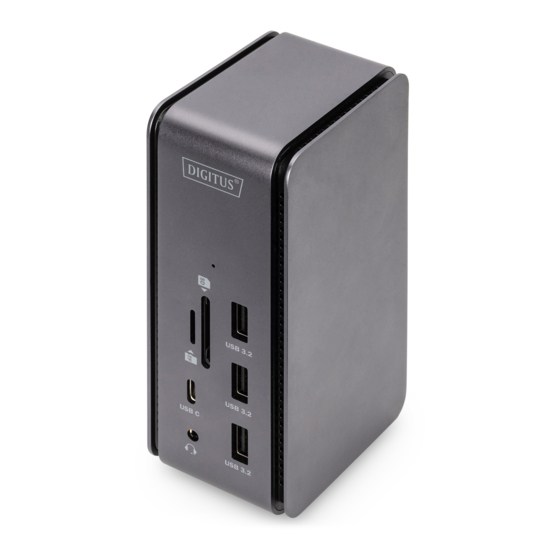

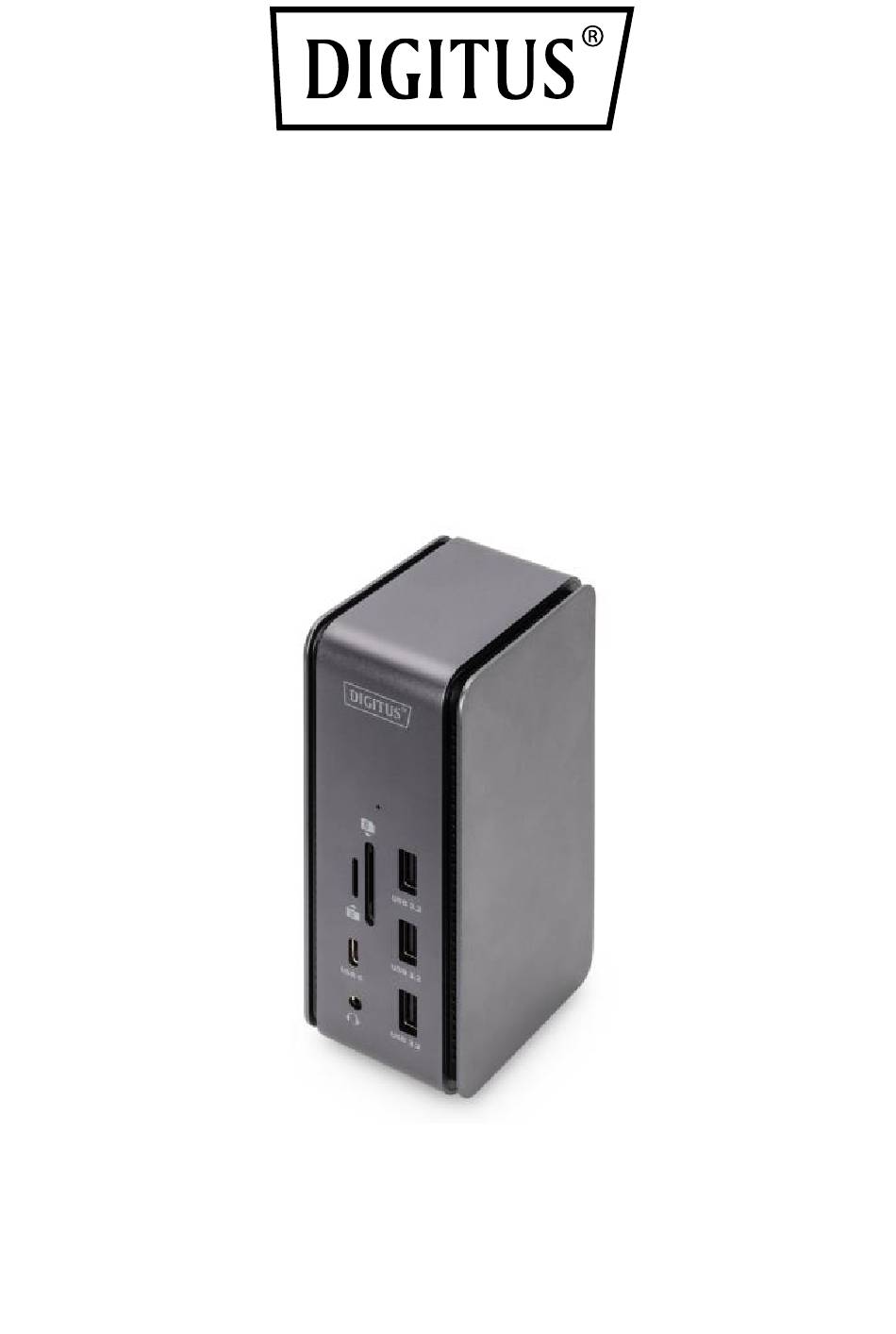

- Page 1 USB4 Docking Station 8K, USB Type-C™ Quick Installation Guide DA-70897...
- Page 2 1. Introduction The USB4 Docking Station from DIGITUS® expands your notebook with 14 additional ports using just one USB-C™ connection. Among other features, it includes 1 x DisplayPort and 1 x HDMI video ports to connect a monitor, projector or TV. Thanks to dual monitor support, these can be operated simultaneously.
- Page 3 6. 3 x USB 3.2 ports - 10 Gbps SuperSpeed data transfer, all ports with BC 1.2 functionality for charging mobile devices (7.5 W max.). 7. 3 x USB 2.0 ports. 8. Supports Power Delivery 3.0 (100 W max.) to quickly charge your notebook.
- Page 4 12. USB-C™ Version: USB 3.1 (Gen 2) 10 Gbps. 13. 1 x USB Type-C™ port for connection to notebook. 14. 1 x USB Type-C™ port - Data transfer (40 Gbps max.). 15. 3 x USB 3.2 ports - 10 Gbps SuperSpeed data transfer, all ports with BC 1.2 functionality for charging mobile devices (7.5 W).
- Page 5 5. Product Overview TF / SD: USB-C™: 10Gbps, GEN2 standard AUX: 3.5mm input / output USB 3.2: 10Gbps, GEN2 Standard PD Charging: 100W Upstream Port USB4 40 Gbps HDMI 2.1: 8K@30Hz DP 1.4: 8K@30Hz USB 2.0: 480Mbps RJ45: 1000Mbps...
- Page 6 6. Connection Diagram TF Card / SD Card Keyboard Notebook Headphone Camera / TV / Projector Mouse/USB Drive/ Router Keyboard...
- Page 7 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
