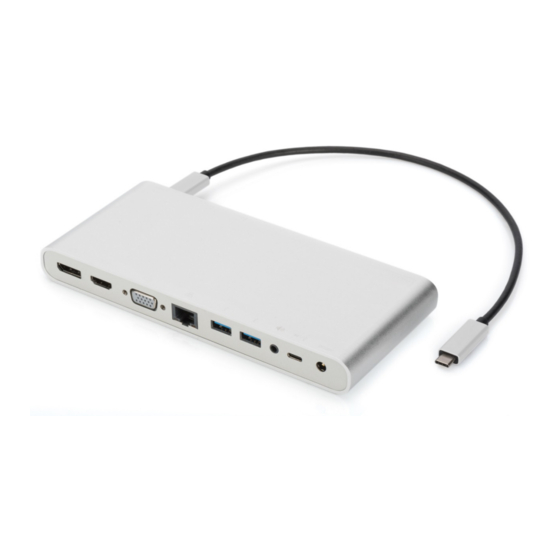

Universal Docking Station,
USB Type-C™
User Manual
DA-70864
Introduction
This Type-C docking offers an integrated solution for power, data, Ethernet, audio
and video. It has VGA, HDMI, DisplayPort ports for video transmission, four USB-A
ports for data transmission, one Type-C female for data transmission or PD charging,
one stereo port to be connected to headset, one audio output to be connected to
amplifier, one RJ45 port to be connected to Ethernet source (Router). Besides, it has
one DC port for power supply.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Digitus USB Type-C DA-70864
Summary of Contents for Digitus USB Type-C DA-70864
- Page 1 Universal Docking Station, USB Type-C™ User Manual DA-70864 Introduction This Type-C docking offers an integrated solution for power, data, Ethernet, audio and video. It has VGA, HDMI, DisplayPort ports for video transmission, four USB-A ports for data transmission, one Type-C female for data transmission or PD charging, one stereo port to be connected to headset, one audio output to be connected to amplifier, one RJ45 port to be connected to Ethernet source (Router).
-
Page 2: Package Contents
Features Support USB-C Female input Support HDMI Female, DisplayPort Female, VGA Female, USB 3.0 Female, Gigabit Ethernet, Stereo, USB-C interface Support DC power adapter max 75W (20V/3.75A) Support Type-C PD power adapter max 100W Support HDMI resolution up to 4kx2k@30Hz ... - Page 3 Resolutions Max 1920x1200@60Hz HDMI Max 4Kx2k@30Hz DisplayPort Max 4Kx2k@30Hz Physical Size 195x85x22 (mm) Weight 426.6g Environmental Operating Temperature 0°C to +45°C Operating Humidity 10% to 90% RH (no condensation) Storage Temperature -10°C to +70°C Storage Humidity 10% to 90% RH (no condensation) Power Supply Type-C port Max 100W (20V/5A)
- Page 4 When a 20V (75W or above) power adapter is connected to DC port, It supplies power to charge the host PC first (max 60W, 5V/2A, 9V/3A, 15V/3A, 20V/3A), the rest of the power (max 15W) will be supplied to the docking. About Type-C Charging port ...
- Page 5 Note: Though a 75W or above power adapter is suggested to be connected to the DC port of this product, our standard optional power adapter is 72W (20V/3.6A). The reasons for choosing a 72W power adapter are listed below: The price of a 75W power adapter is as twice as that of a 72W power adapter The optional 72W power adapter is testified to be able to guarantee normal functioning of this product when it is full loaded Mini DisplayPort and HDMI can work simultaneously;...
-
Page 6: Connection Diagram
Connection Diagram Type-C 3.5 Stereo Type-C Host PC (Prom Type-C DC Port) Power 3.5 Stereo RJ45 Video Power Adapter Keyboard Adapter Charging Data Type-C Device Mouse Amplifier Speaker Ethernet Source... - Page 7 Herby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
